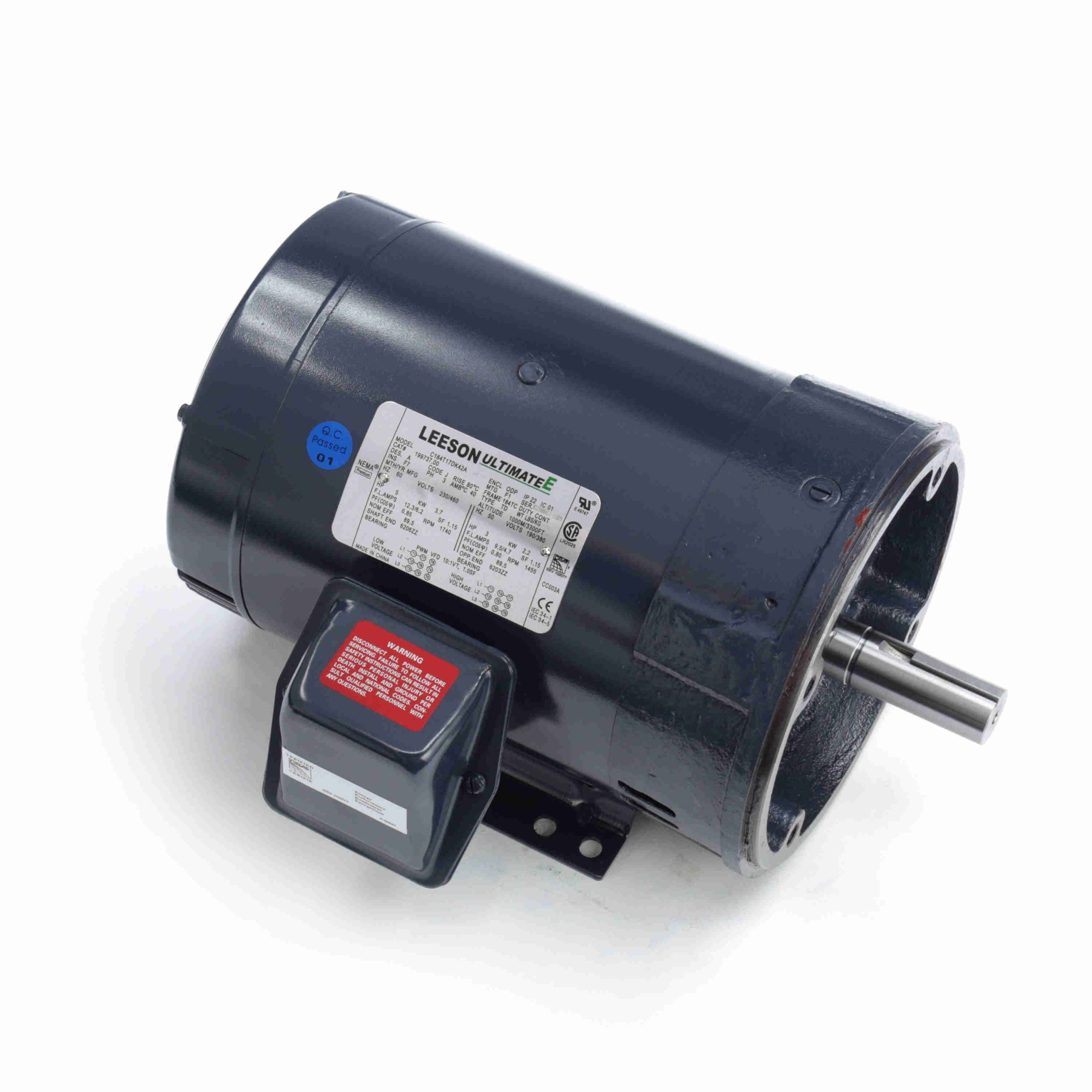

| UPC: | 691720043189 | Weight: | 111 LB |
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 12.8/6.4 A | Speed: | 1755 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 89.5 % | Power Factor: | 82 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | K |
| Frame: | 184TC | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | N |
| CE: | Y | IP Code: | 22 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 2.25 Ohms | Mounting: | Rigid base |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 15.46 in |
| Frame Length: | 6.73 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1 Only |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| No Load | 2.80 | 44.0 | 0.00 | 0.0 | 1,800 | 6.0 | 5.00 | |
| Break-Down | 32.00 | 500.0 | 52.00 | 344.0 | 1,450 | 71.0 | 5.00 | |
| Pull-Up | 53.00 | 828.0 | 38.00 | 252.0 | 750 | 5.00 | ||
| Full Load | 6.20 | 100.0 | 15.10 | 100.0 | 1,740 | 85.0 | 5.00 | |
| Locked-Rotor | 46.00 | 750.0 | 39.00 | 258.0 | 0 | 46.0 | 5.00 | |
| 1/3 | 42.00 | 656.0 | 37.50 | 248.0 | 400 | 5.00 | ||
| 2/3 | 41.00 | 641.0 | 43.00 | 285.0 | 1,000 | 5.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 2.80 | 3.20 | 4.00 | 5.20 | 6.20 | 6.90 | 7.80 |
| Rated Output (KW) | 0.25 | 1.10 | 2.10 | 3.10 | 4.20 | 4.80 | 5.30 |
| Efficiency (%) | 0.0 | 86.5 | 89.5 | 90.2 | 89.5 | 88.5 | 87.5 |
| Power Factor (%) | 6.0 | 45.0 | 66.0 | 77.0 | 85.0 | 86.0 | 87.0 |
| Speed (RPM) | 1,800 | 1,790 | 1,780 | 1,755 | 1,740 | 1,732 | 1,725 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 50.0 | 70.0 | 85.0 |
| Torque (ft-lbs) | 0.00 | 3.70 | 7.40 | 11.20 | 15.10 | 17.40 | 19.00 |
