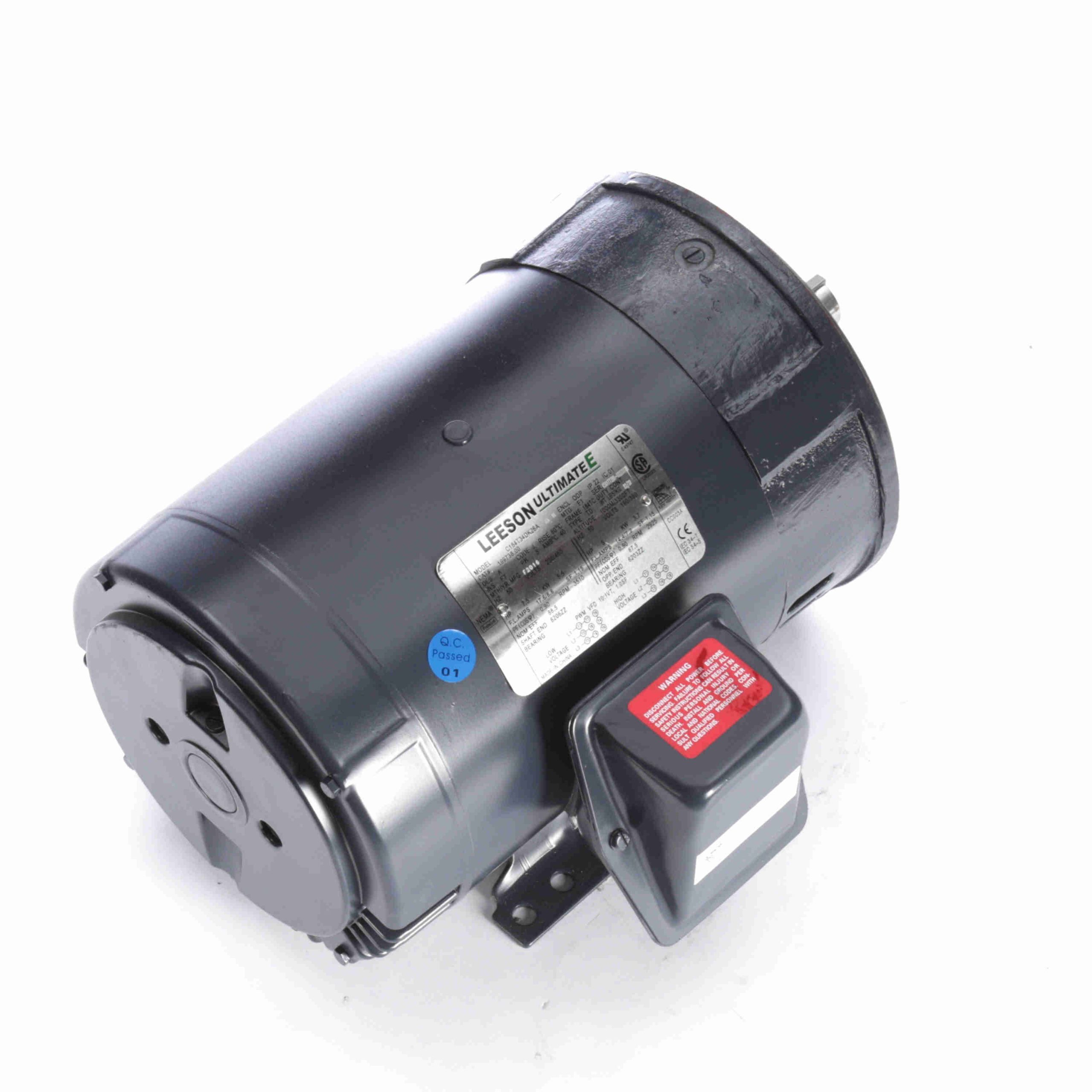

| UPC: | 691720043196 | Weight: | 88 LB |
| Output HP: | 7.50 Hp | Output KW: | 5.6 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 18.0/9.0 A | Speed: | 3500 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 88.5 % | Power Factor: | 88 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | H |
| Frame: | 184TC | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | N |
| CE: | Y | IP Code: | 22 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 1.65 Ohms | Mounting: | Rigid base |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 15.46 in |
| Frame Length: | 6.73 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1 Only |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 68.00 | 791.0 | 28.00 | 250.0 | 0 | 48.0 | 7.50 | |
| Pull-Up | 61.00 | 709.0 | 25.20 | 225.0 | 1,800 | 7.50 | ||
| No Load | 3.20 | 35.5 | 0.00 | 0.0 | 3,600 | 9.0 | 7.50 | |
| 1/3 | 64.50 | 750.0 | 23.80 | 213.0 | 1,200 | 7.50 | ||
| Full Load | 8.60 | 100.0 | 11.20 | 100.0 | 3,510 | 90.0 | 7.50 | |
| 2/3 | 54.50 | 634.0 | 29.40 | 263.0 | 2,400 | 7.50 | ||
| Break-Down | 47.50 | 552.0 | 40.50 | 362.0 | 2,900 | 76.0 | 7.50 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 3.20 | 3.80 | 5.20 | 6.90 | 8.60 | 9.80 | 10.60 |
| Rated Output (KW) | 0.50 | 1.60 | 3.20 | 4.60 | 6.30 | 7.30 | 8.00 |
| Efficiency (%) | 0.0 | 84.0 | 87.5 | 88.5 | 88.5 | 87.5 | 86.5 |
| Power Factor (%) | 9.0 | 56.0 | 77.0 | 86.0 | 90.0 | 90.0 | 90.0 |
| Speed (RPM) | 3,600 | 3,575 | 3,550 | 3,525 | 3,510 | 3,490 | 3,470 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 70.0 | 90.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 2.75 | 5.50 | 8.40 | 11.20 | 13.00 | 14.20 |
