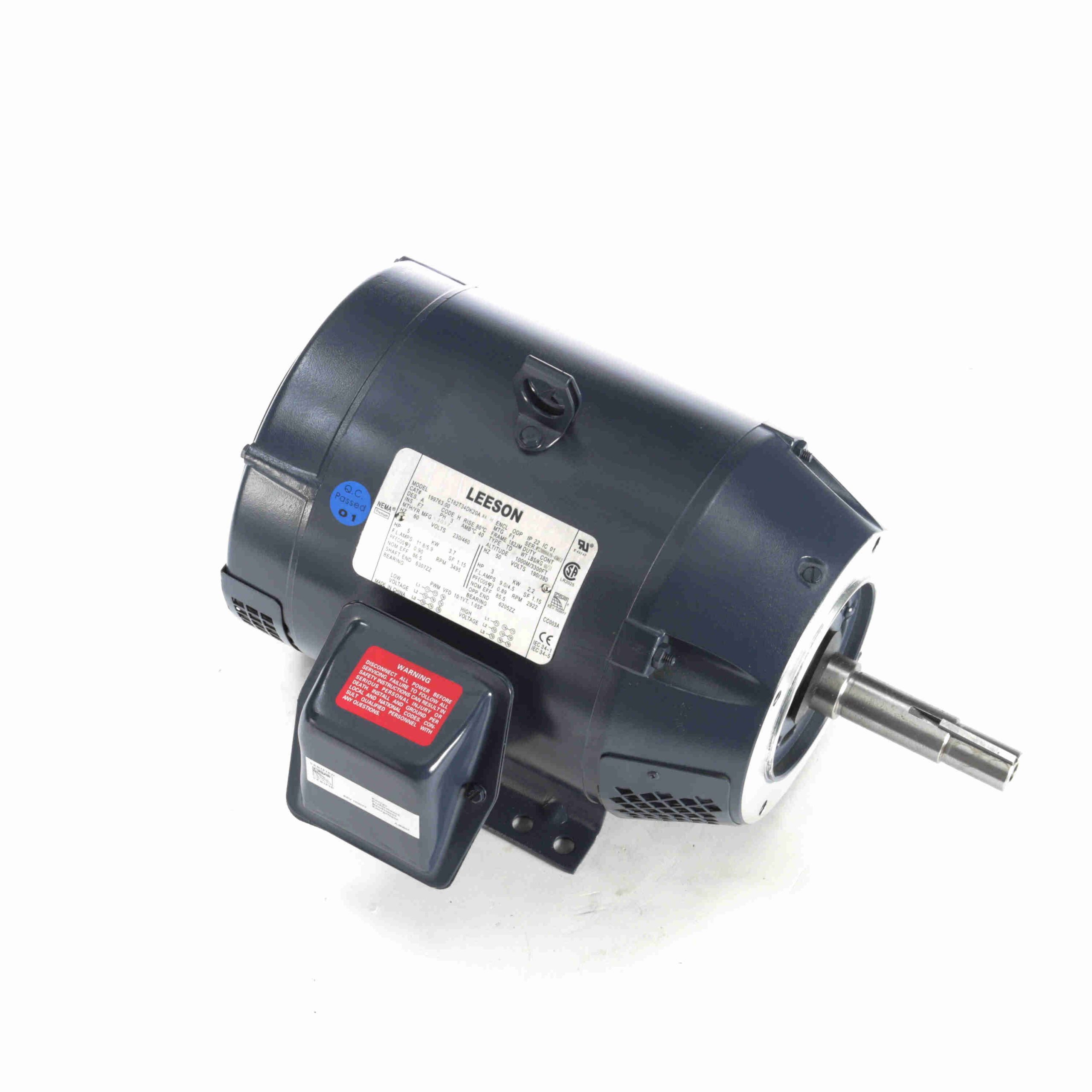

| UPC: | 691720048139 | Weight: | 73 LB |
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 12.4/6.2 A | Speed: | 3460 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 87.5 % | Power Factor: | 88 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | H |
| Frame: | 182JM | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6307 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 3.05 Ohms | Mounting: | Rigid base |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Rolled Steel |
| Shaft Type: | JM | Overall Length: | 17.37 in |
| Frame Length: | 6.73 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 4.28 in | Assembly/Box Mounting: | F1 Only |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| 1/3 | 36.00 | 581.0 | 15.00 | 197.0 | 1,200 | 5.00 | ||
| No Load | 2.40 | 38.8 | 0.00 | 0.0 | 3,600 | 7.0 | 5.00 | |
| Break-Down | 28.00 | 452.0 | 22.50 | 296.0 | 2,675 | 79.0 | 5.00 | |
| Locked-Rotor | 38.00 | 613.0 | 17.00 | 224.0 | 0 | 61.0 | 5.00 | |
| 2/3 | 32.00 | 516.0 | 17.50 | 230.0 | 2,400 | 5.00 | ||
| Full Load | 6.20 | 100.0 | 7.60 | 100.0 | 3,460 | 88.0 | 5.00 | |
| Pull-Up | 34.00 | 548.0 | 15.00 | 197.0 | 1,800 | 5.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 2.40 | 2.60 | 3.60 | 4.80 | 5.90 | 6.80 | 7.50 |
| Rated Output (KW) | 0.25 | 1.10 | 2.10 | 3.20 | 4.30 | 5.00 | 5.50 |
| Efficiency (%) | 0.0 | 84.0 | 86.5 | 87.5 | 86.5 | 86.5 | 85.5 |
| Power Factor (%) | 7.0 | 52.0 | 74.0 | 84.0 | 90.0 | 90.0 | 90.0 |
| Speed (RPM) | 3,600 | 3,570 | 3,538 | 3,502 | 3,495 | 3,475 | 3,450 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 55.0 | 75.0 | 90.0 |
| Torque (ft-lbs) | 0.00 | 1.80 | 3.70 | 5.60 | 7.60 | 8.80 | 9.60 |
