Description

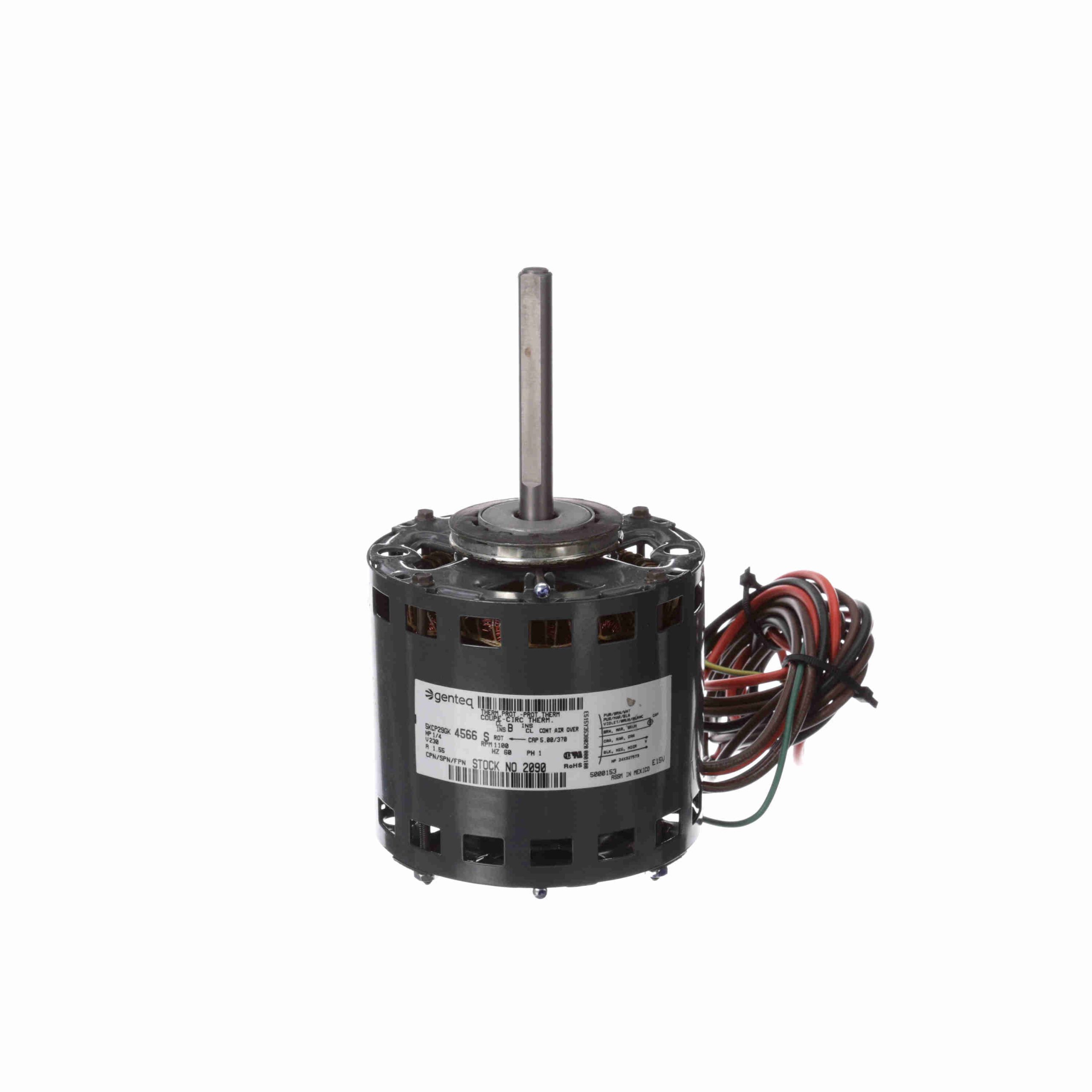

2090 – Genteq 1/4 HP OEM Replacement Motor, 1100 RPM, 230 Volts, 42 Frame, OAO – 2090
2090 Genteq HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
815585023128 |
Weight: |
10 LB |
| Packaged Length: |
14.06 IN |
Packaged Width: |
6.04 IN |
| Packaged Height: |
6.02 IN |
Nameplate Specifications
| Output HP: |
1/4 Hp |
Frequency: |
60 Hz |
| Voltage: |
230 V |
Current: |
1.55 A |
| Speed: |
1100 rpm |
Service Factor: |
1 |
| Phase: |
1 |
Duty: |
Continuous Air Over |
| Insulation Class: |
B |
Frame: |
42 |
| Enclosure: |
Open Air Over |
Thermal Protection: |
Thermally Protected |
| Ambient Temperature: |
40 °C |
UL: |
Recognized |
| CSA: |
Y |
CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Poles: |
6 |
| Rotation: |
Counterclockwise |
Mounting: |
Resilient Rings |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Flat |
Overall Length: |
8.84 in |
| Frame Length: |
4.16 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
3.50 in |
Genteq Motors
Regal Beloit
