Description

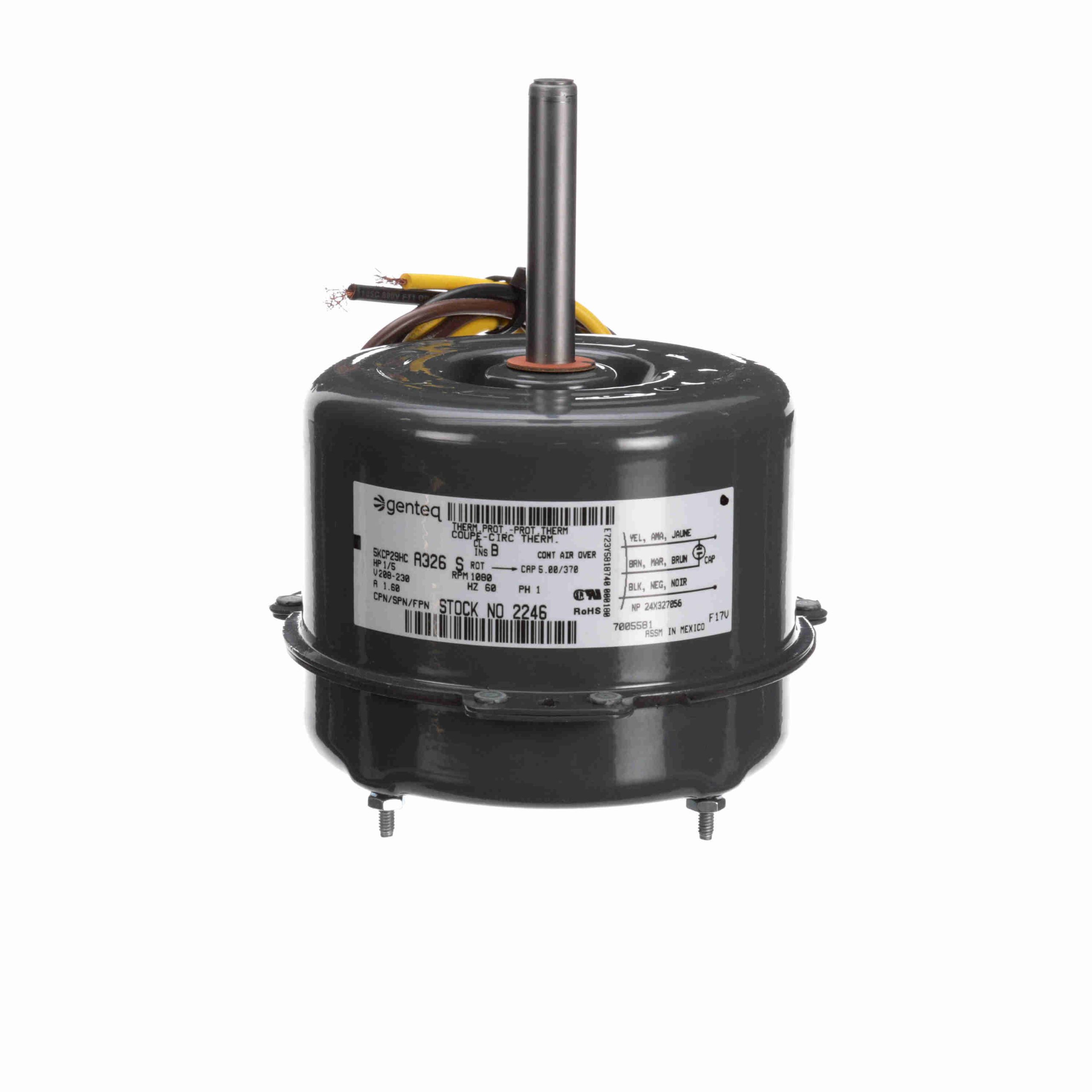

2246 – Genteq 1/5 HP Condenser Fan Motor, 1080 RPM, 208-230 Volts, 42 Frame, TEAO – 2246
2246 Genteq Condenser Fans Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
815585023166 |
Weight: |
9 LB |
| Packaged Length: |
13.24 IN |
Packaged Width: |
6.04 IN |
| Packaged Height: |
6.02 IN |
Nameplate Specifications
| Output HP: |
1/5 Hp |
Frequency: |
60 Hz |
| Voltage: |
208-230 V |
Current: |
1.60 A |
| Speed: |
1080 rpm |
Service Factor: |
1 |
| Phase: |
1 |
Duty: |
Continuous Air Over |
| Insulation Class: |
B |
Frame: |
42 |
| Enclosure: |
Totally Enclosed Air Over |
Thermal Protection: |
Thermally Protected |
| Ambient Temperature: |
40 °C |
UL: |
Recognized |
| CSA: |
Y |
CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Poles: |
6 |
| Rotation: |
Clockwise |
Mounting: |
Extended Studs |
| Motor Orientation: |
Vertical Shaft Down |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Shaft Type: |
Flat |
| Overall Length: |
6.48 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.75 in |
Genteq Motors
Regal Beloit
