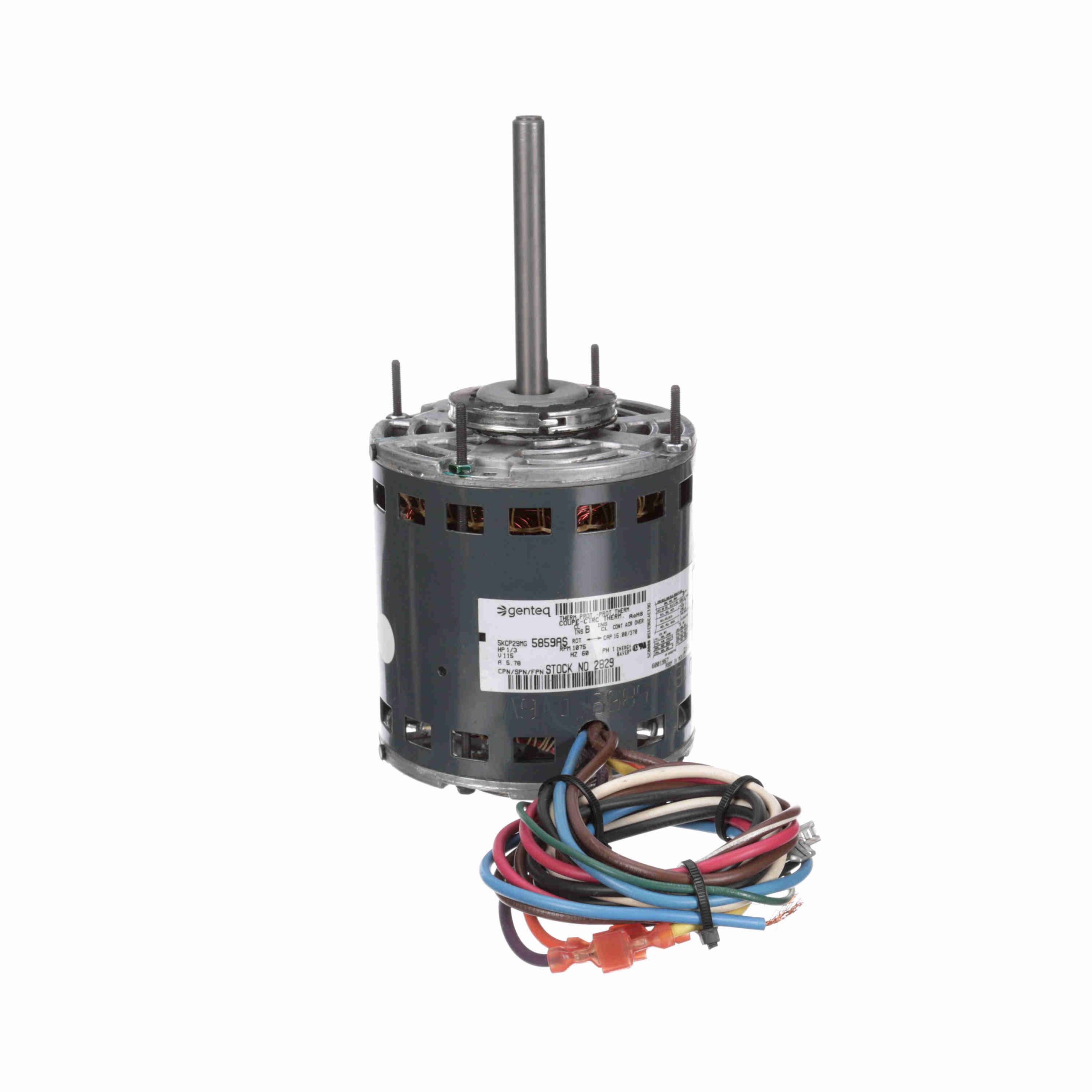

2829 – Genteq 1/3 HP Fan & Blower Motor, 1075 RPM, 3 Speed, 115 Volts, 42 Frame, OAO – 2829

2829 – Genteq 1/3 HP Fan & Blower Motor, 1075 RPM, 3 Speed, 115 Volts, 42 Frame, OAO – 2829

2829 Genteq Direct Drive Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Direct Drive Fan & Blower Motor
  • 5″ Diameter – 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Shaft with Flat
  • 26″ Leads
  • Resilient Ring Mounting

Genteq Motors
Regal Beloit

Description

2829 – Genteq 1/3 HP Fan & Blower Motor, 1075 RPM, 3 Speed, 115 Volts, 42 Frame, OAO – 2829

2829 Genteq Direct Drive Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 815585023302 Weight: 12 LB
Packaged Length: 14.06 IN Packaged Width: 6.04 IN
Packaged Height: 6.02 IN

Nameplate Specifications

Output HP: 1/3 Hp Frequency: 60 Hz
Voltage: 115 V Current: 5.78 A
Speed: 1075 rpm Service Factor: 1
Phase: 1 Duty: Continuous Air Over
Insulation Class: B Frame: 42
Enclosure: Open Air Over Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C UL: Recognized
CSA: Y CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 6
Rotation: Reversible Mounting: Resilient Rings
Motor Orientation: Horizontal Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 9.70 in
Frame Length: 4.41 in Shaft Diameter: 0.500 in
Shaft Extension: 4.00 in Thru-bolts Extension: 0.76 in
