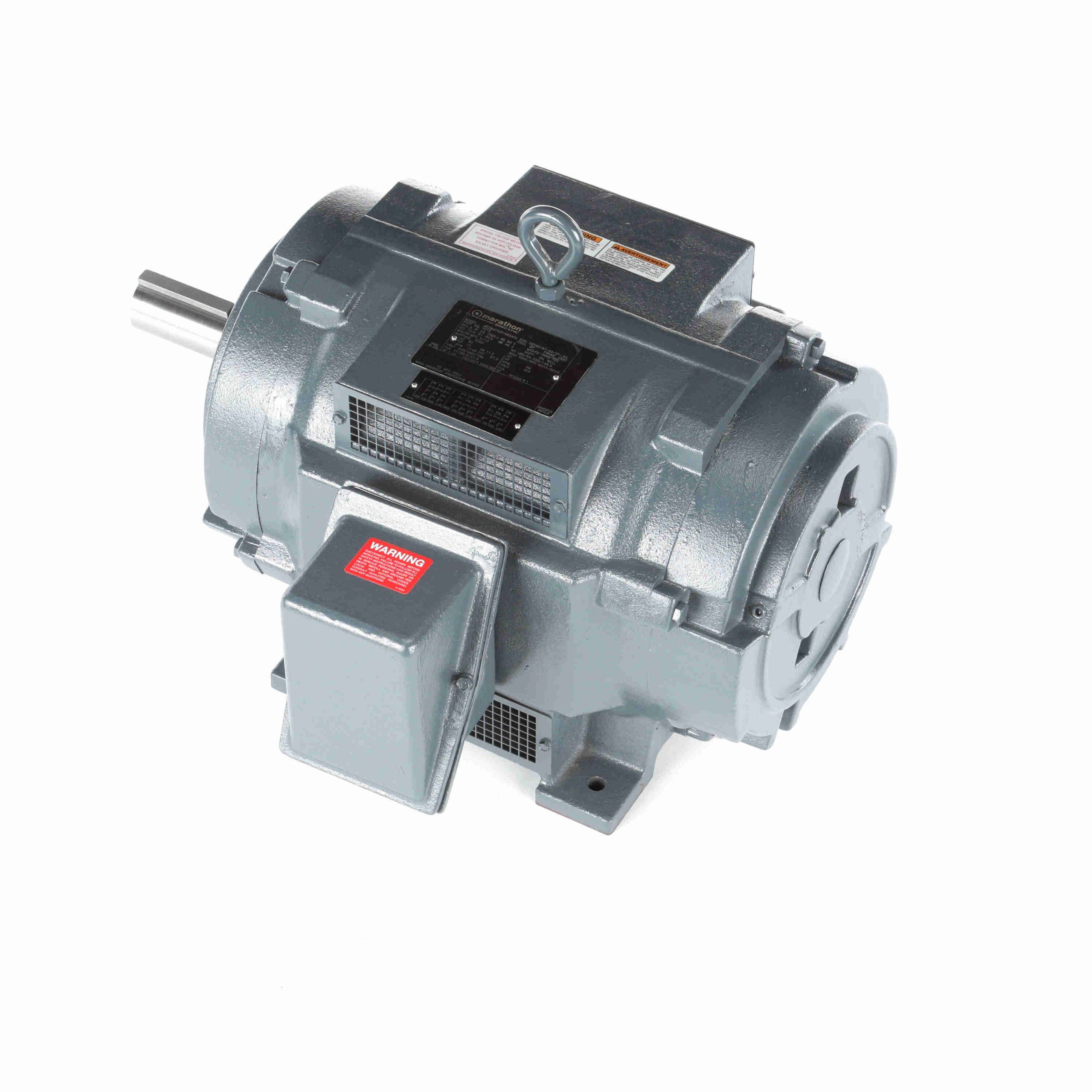

284TTDP7692 – Marathon 15 HP Definite Purpose AC Motor, 3 phase, 1200 RPM, 230/460/796 V, 284T Frame, ODP – Y215
284TTDP7692 Marathon Other Purpose Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856043207 |
Weight: |
330 LB |
| Packaged Length: |
35 IN |
Packaged Width: |
26 IN |
| Packaged Height: |
22.49 IN |
Nameplate Specifications
| Output HP: |
15 Hp |
Output KW: |
11.2 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460/796 V |
| Current: |
41.0/20.5/11.9 A |
Speed: |
1140 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
87.5 % |
Power Factor: |
78 |
| Duty: |
Oil Well |
Insulation Class: |
F |
| Design Code: |
D |
KVA Code: |
J |
| Frame: |
284T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6311 |
Opp Drive End Bearing Size: |
6210 |
| UL: |
No |
CSA: |
N |
| CE: |
N |
IP Code: |
23 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
.741 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
23.44 in |
| Frame Length: |
12.75 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
4.81 in |
Assembly/Box Mounting: |
F2 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
132.00 |
644.0 |
220.00 |
321.0 |
400 |
|
|
15.00 |
| Locked-Rotor |
136.00 |
663.0 |
186.00 |
272.0 |
0 |
|
52.0 |
15.00 |
| 1/3 |
133.00 |
649.0 |
185.00 |
270.0 |
95 |
|
54.0 |
15.00 |
| 2/3 |
131.00 |
639.0 |
240.00 |
350.0 |
600 |
|
|
15.00 |
| Break-Down |
103.00 |
502.0 |
239.00 |
349.0 |
686 |
|
68.5 |
15.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
10.50 |
11.50 |
13.50 |
16.50 |
20.50 |
23.00 |
24.50 |
| Rated Output (KW) |
0.50 |
3.50 |
6.50 |
9.50 |
12.50 |
15.00 |
16.00 |
| Efficiency (%) |
0.0 |
82.5 |
88.5 |
88.5 |
87.5 |
85.5 |
86.5 |
| Power Factor (%) |
6.5 |
37.0 |
58.5 |
71.0 |
78.0 |
82.0 |
82.0 |
| Speed (RPM) |
1,200 |
1,185 |
1,175 |
1,160 |
1,140 |
1,125 |
1,120 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
70.0 |
90.0 |
| Torque (ft-lbs) |
0.00 |
16.50 |
33.50 |
50.50 |
68.50 |
80.50 |
86.50 |
