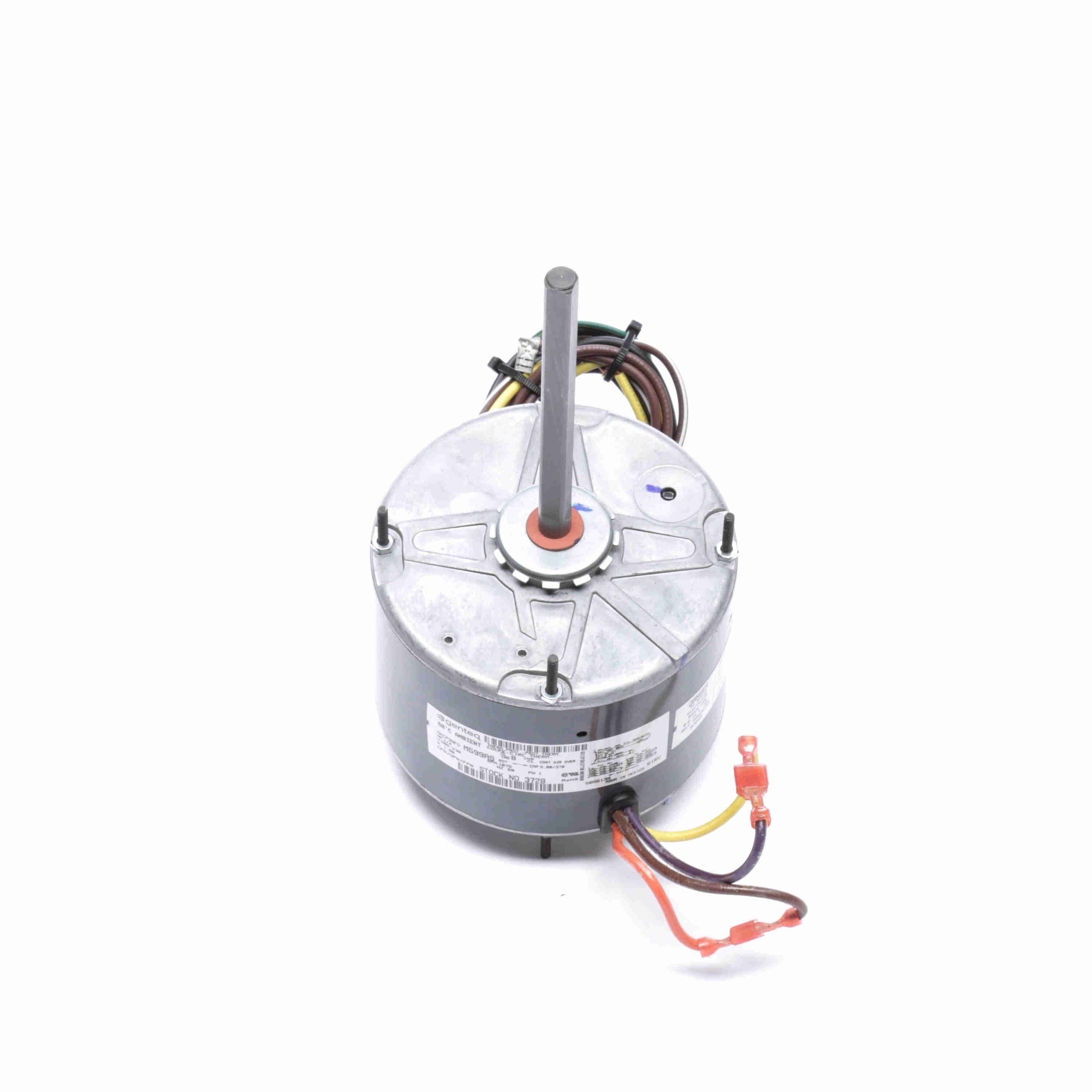

3230 – Genteq 1/2 HP Condenser Fan Motor, 1075 RPM, 2 Speed, 208-230 Volts, 48 Frame, TEAO – 3230

3230 – Genteq 1/2 HP Condenser Fan Motor, 1075 RPM, 2 Speed, 208-230 Volts, 48 Frame, TEAO – 3230

3230 Genteq Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Condenser Fan – Heat Pump Motor
  • 5.6″ Diameter – 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Shaft with Double Flat
  • 26″ Leads
  • Extended Clampbolts, Belly Band

Genteq Motors
Regal Beloit

Description

3230 – Genteq 1/2 HP Condenser Fan Motor, 1075 RPM, 2 Speed, 208-230 Volts, 48 Frame, TEAO – 3230

3230 Genteq Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 815585021780 Weight: 20 LB
Packaged Length: 15 IN Packaged Width: 6.04 IN
Packaged Height: 6.02 IN

Nameplate Specifications

Output HP: 1/2 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 3.80 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Air Over Insulation Class: B
Frame: 48 Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 6
Rotation: Counterclockwise/Clockwise Mounting: Extended Studs
Motor Orientation: Vsd Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Double Flat Overall Length: 12.45 in
Frame Length: 5.32 in Shaft Diameter: 0.500 in
Shaft Extension: 6.00 in Thru-bolts Extension: 0.75 in
