Description

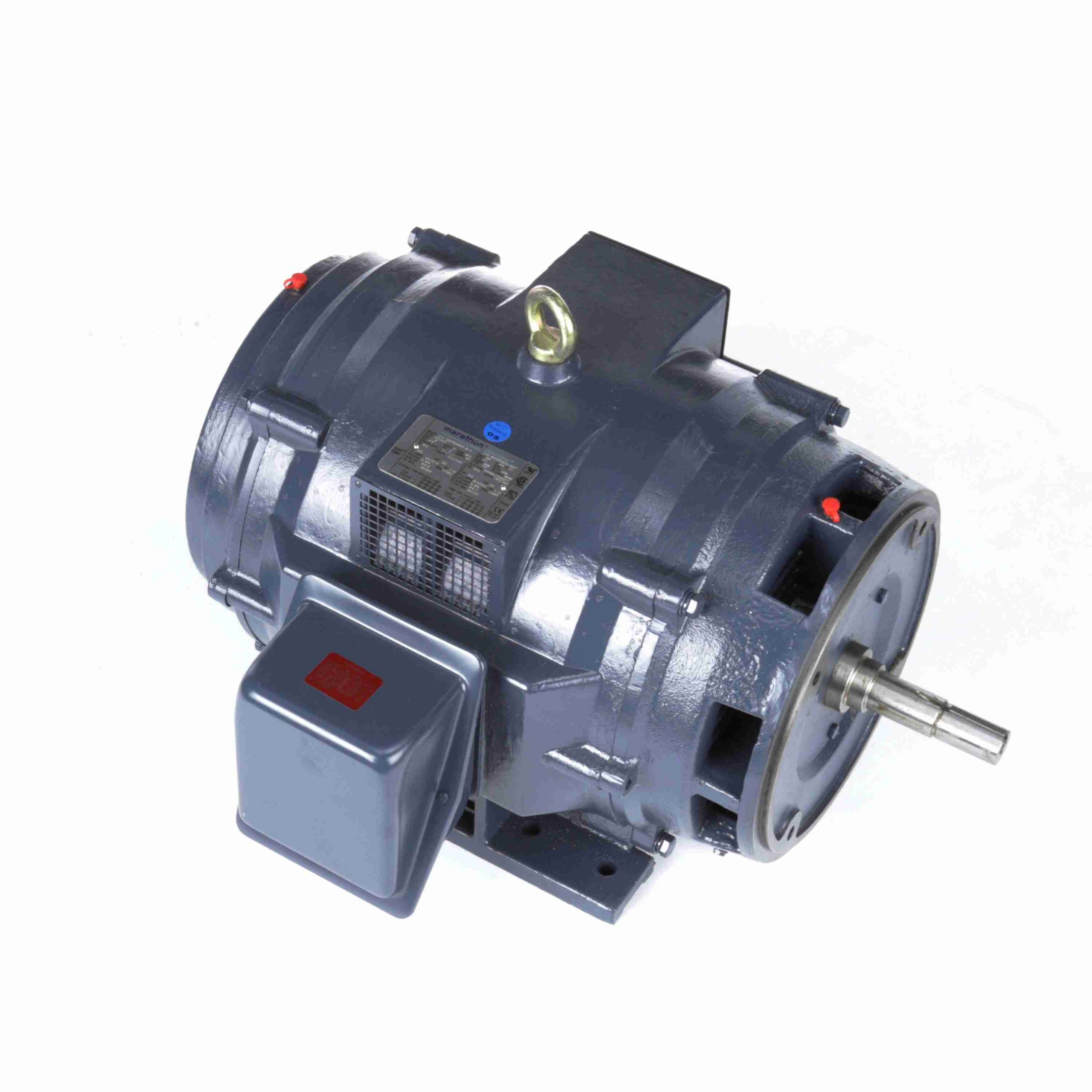

324TTDBD6032 – Marathon 40 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 230/460 V, 324JM Frame, ODP – GT0473
324TTDBD6032 Marathon JM Motors
General Specifications
| UPC: |
722856062611 |
Weight: |
554 LB |
| Packaged Length: |
31.77 IN |
Packaged Width: |
28.03 IN |
| Packaged Height: |
28.14 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
95.5/47.5 A |
Speed: |
1780 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
83.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
324JM |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
.209 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
JM |
Overall Length: |
28.94 in |
| Frame Length: |
14.56 in |
Shaft Diameter: |
1.249 in |
| Shaft Extension: |
5.5 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
20.50 |
43.0 |
0.00 |
0.0 |
1,800 |
0.00 |
4.0 |
40.00 |
| 1/3 |
245.00 |
510.0 |
170.00 |
145.0 |
600 |
0.00 |
0.0 |
40.00 |
| Locked-Rotor |
285.00 |
595.0 |
207.00 |
175.0 |
0 |
0.00 |
36.0 |
40.00 |
| Full Load |
47.80 |
100.0 |
118.00 |
100.0 |
1,780 |
31.50 |
83.0 |
40.00 |
| Pull-Up |
225.00 |
470.0 |
175.00 |
148.0 |
900 |
0.00 |
0.0 |
40.00 |
| Break-Down |
160.00 |
335.0 |
289.00 |
245.0 |
1,700 |
0.00 |
67.0 |
40.00 |
| 2/3 |
205.00 |
430.0 |
216.00 |
183.0 |
1,200 |
0.00 |
0.0 |
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
20.50 |
23.00 |
29.50 |
38.00 |
47.80 |
54.20 |
58.80 |
| Rated Output (KW) |
0.80 |
8.10 |
15.80 |
23.60 |
31.50 |
36.50 |
39.70 |
| Efficiency (%) |
0.0 |
91.7 |
94.1 |
94.1 |
94.1 |
93.6 |
93.6 |
| Power Factor (%) |
4.5 |
44.5 |
68.0 |
78.5 |
83.0 |
84.5 |
85.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,780 |
1,775 |
1,775 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
30.0 |
45.0 |
50.0 |
| Torque (ft-lbs) |
0.00 |
29.00 |
58.50 |
88.00 |
118.00 |
136.00 |
148.00 |
