Description

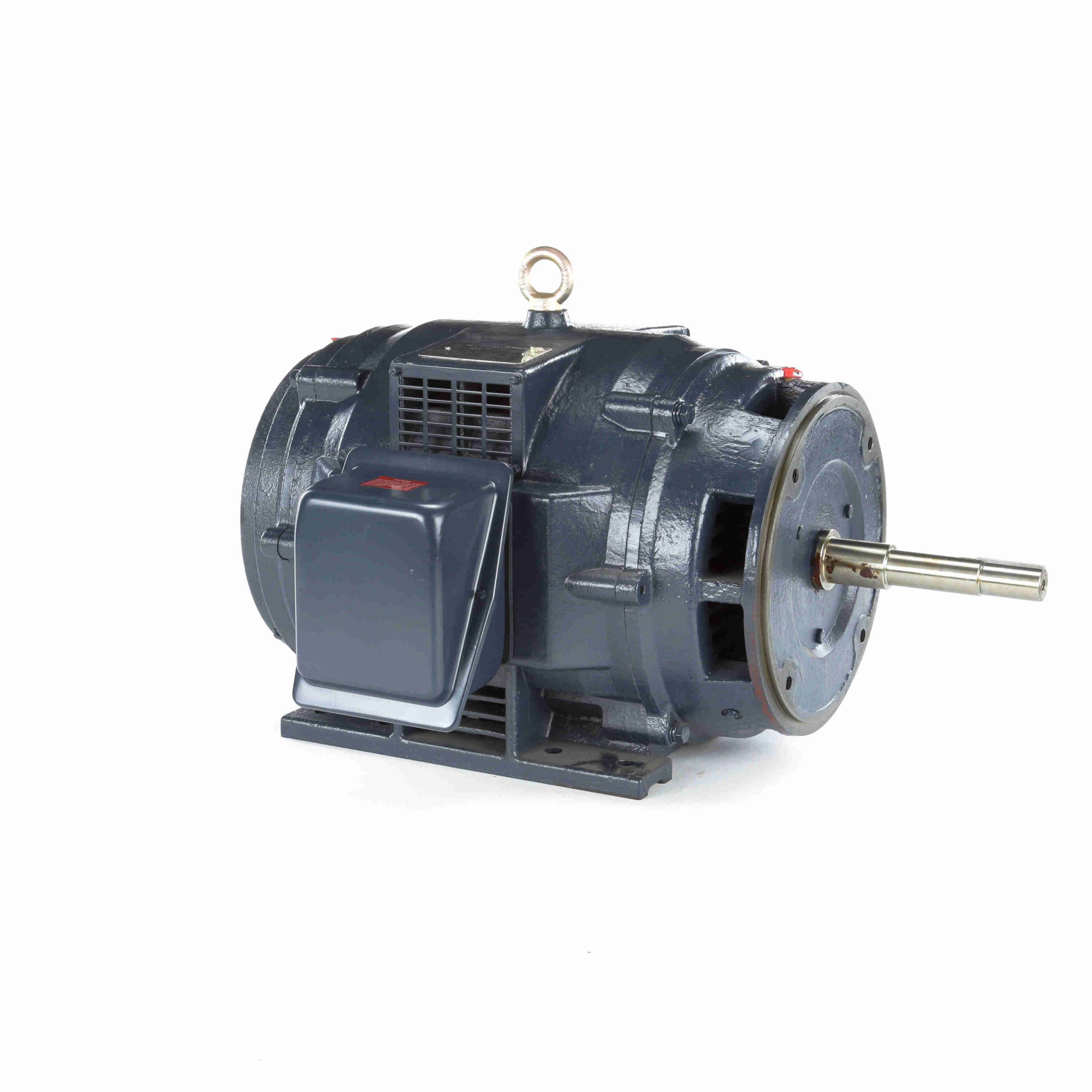

324TTDBD6095 – Marathon 25 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 575 V, 324JP Frame, ODP – GT2568
324TTDBD6095 Marathon JP Motors
General Specifications
| UPC: |
722856063694 |
Weight: |
535 LB |
| Packaged Length: |
35 IN |
Packaged Width: |
35 IN |
| Packaged Height: |
21 IN |
Nameplate Specifications
| Output HP: |
25 Hp |
Output KW: |
18.7 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
26.0 A |
Speed: |
1185 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93 % |
Power Factor: |
77.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
324JP |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
.363 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
JP |
Overall Length: |
31.82 in |
| Frame Length: |
14.56 in |
Shaft Diameter: |
1.249 in |
| Shaft Extension: |
8.37 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
130.00 |
400.0 |
195.00 |
175.0 |
800 |
|
|
25.00 |
| Locked-Rotor |
180.00 |
555.0 |
190.00 |
170.0 |
0 |
|
37.0 |
25.00 |
| No Load |
16.00 |
50.0 |
0.00 |
0.0 |
1,200 |
|
4.5 |
25.00 |
| 1/3 |
156.00 |
480.0 |
155.00 |
140.0 |
400 |
|
|
25.00 |
| Full Load |
32.40 |
100.0 |
111.00 |
100.0 |
1,185 |
|
77.5 |
25.00 |
| Break-Down |
94.00 |
290.0 |
266.00 |
240.0 |
130 |
|
65.0 |
25.00 |
| Pull-Up |
143.00 |
440.0 |
158.00 |
142.0 |
600 |
|
|
25.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
12.80 |
13.76 |
16.80 |
20.96 |
25.92 |
29.20 |
31.60 |
| Rated Output (KW) |
0.75 |
5.40 |
10.20 |
15.00 |
20.00 |
23.20 |
25.20 |
| Efficiency (%) |
0.0 |
88.5 |
92.4 |
93.0 |
93.0 |
92.7 |
92.4 |
| Power Factor (%) |
4.5 |
38.0 |
60.0 |
72.0 |
77.5 |
79.0 |
80.0 |
| Speed (RPM) |
1,200 |
1,195 |
1,192 |
1,190 |
1,185 |
1,182 |
1,180 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
35.0 |
45.0 |
55.0 |
| Torque (ft-lbs) |
0.00 |
27.50 |
55.00 |
82.50 |
111.00 |
127.00 |
139.00 |
