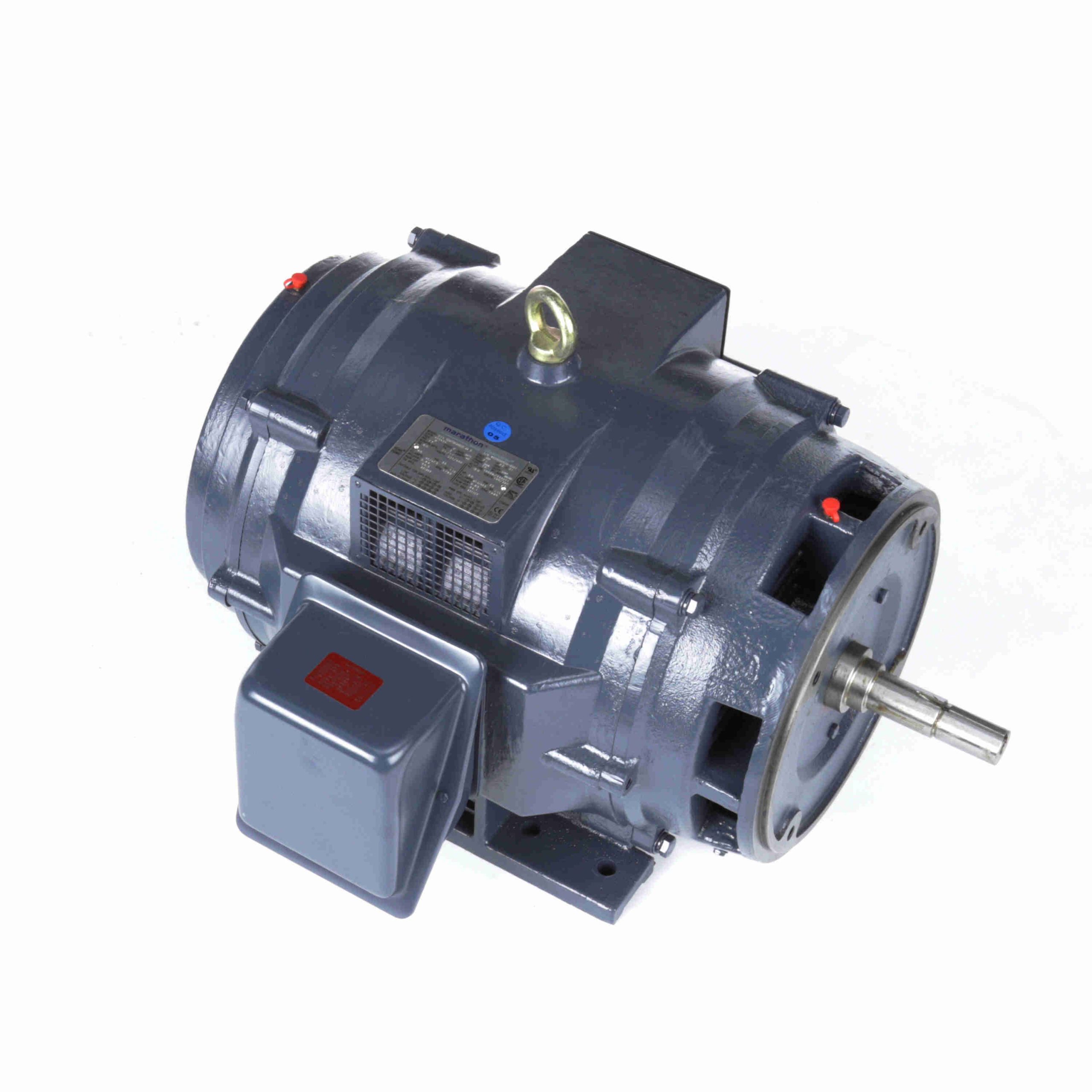

| UPC: | 722856000750 | Weight: | 645 LB |
| Packaged Length: | 35 IN | Packaged Width: | 26 IN |
| Packaged Height: | 24.1 IN |
| Output HP: | 40 Hp | Output KW: | 30.0 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 95.0/47.5 A | Speed: | 1780 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 94.5 % | Power Factor: | 83 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | F |
| Frame: | 324JM | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6312 | Opp Drive End Bearing Size: | 6311 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 12 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Wye Start Delta Run Or Inverter |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | .1817 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | JM | Overall Length: | 28.94 in |
| Shaft Diameter: | 1.25 in | Shaft Extension: | 5.25 in |
| Assembly/Box Mounting: | F1/F2 CAPABLE |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| 1/3 | 239.00 | 547.0 | 162.00 | 157.0 | 600 | 0.00 | 0.0 | 40.00 |
| No Load | 16.50 | 34.7 | 0.00 | 0.0 | 1,800 | 0.00 | 0.0 | 40.00 |
| 2/3 | 202.00 | 442.0 | 200.00 | 190.0 | 1,200 | 0.00 | 0.0 | 40.00 |
| Pull-Up | 227.00 | 526.0 | 171.00 | 153.0 | 900 | 0.00 | 0.0 | 40.00 |
| Break-Down | 155.00 | 326.0 | 289.00 | 245.0 | 1,685 | 0.00 | 67.5 | 40.00 |
| Full Load | 47.50 | 100.0 | 118.00 | 100.0 | 1,780 | 31.80 | 83.5 | 40.00 |
| Locked-Rotor | 252.00 | 530.0 | 189.00 | 161.0 | 0 | 0.00 | 35.5 | 40.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 16.50 | 20.00 | 27.50 | 37.00 | 47.50 | 55.00 | 59.50 |
| Rated Output (KW) | 0.60 | 8.10 | 15.80 | 23.60 | 31.50 | 36.50 | 39.70 |
| Efficiency (%) | 0.0 | 91.7 | 93.6 | 94.1 | 94.1 | 94.1 | 93.6 |
| Power Factor (%) | 4.5 | 51.0 | 72.0 | 80.5 | 84.0 | 84.5 | 84.5 |
| Speed (RPM) | 1,800 | 1,795 | 1,790 | 1,785 | 1,780 | 1,778 | 1,775 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 30.0 | 40.0 | 50.0 |
| Torque (ft-lbs) | 0.00 | 29.00 | 58.50 | 88.00 | 118.00 | 136.00 | 148.00 |
