Description

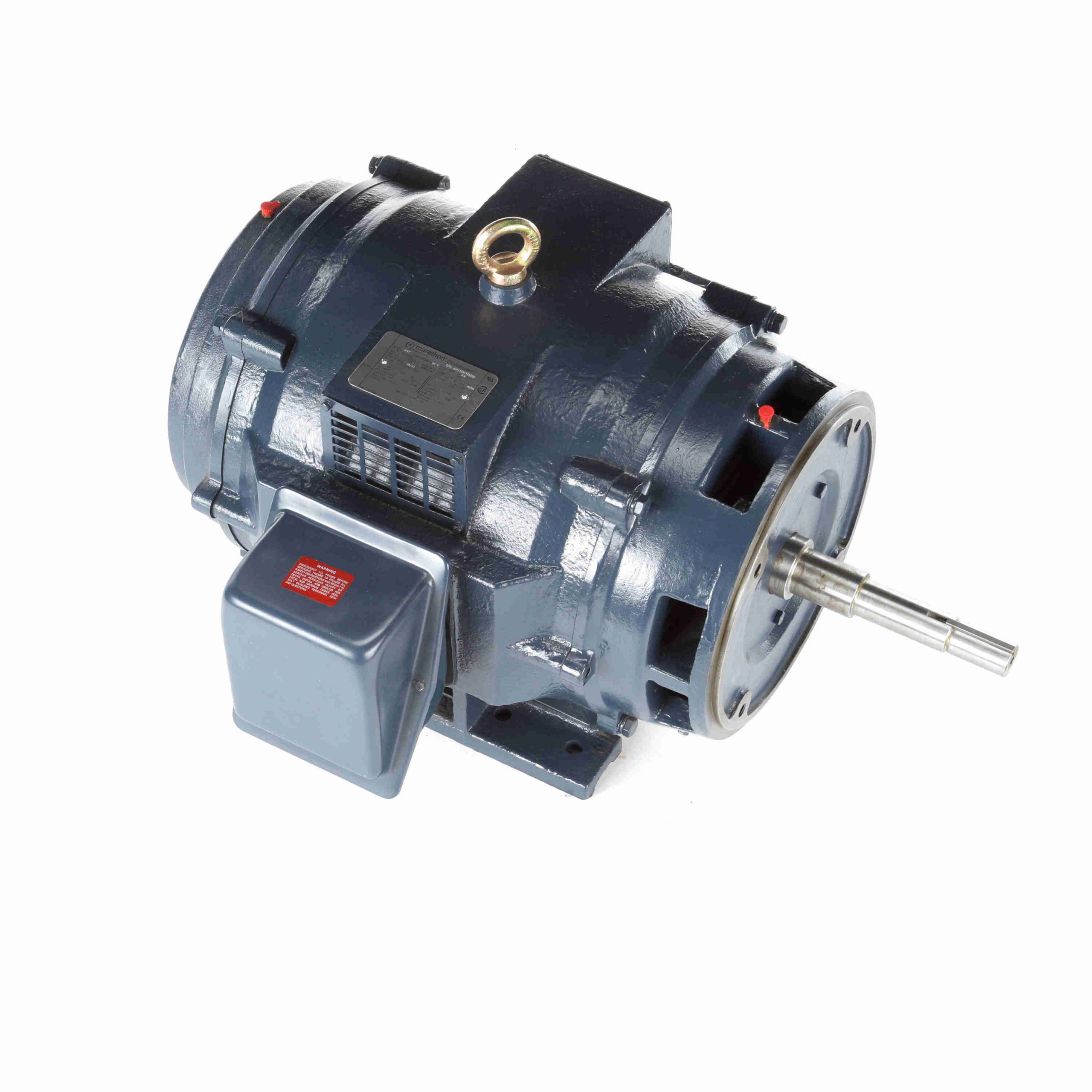

324TTDCA6038 – Marathon 40 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 324JP Frame, ODP – GT2534
324TTDCA6038 Marathon JP Motors
General Specifications
| UPC: |
722856002136 |
Weight: |
700 LB |
| Packaged Length: |
35 IN |
Packaged Width: |
26 IN |
| Packaged Height: |
25.42 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
38.0 A |
Speed: |
1780 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.5 % |
Power Factor: |
83 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
F |
| Frame: |
324JP |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.1817 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
JP |
Overall Length: |
31.82 in |
| Shaft Diameter: |
1.25 in |
Shaft Extension: |
8.12 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
239.00 |
547.0 |
162.00 |
157.0 |
600 |
0.00 |
0.0 |
40.00 |
| No Load |
16.50 |
34.7 |
0.00 |
0.0 |
1,800 |
0.00 |
0.0 |
40.00 |
| Break-Down |
155.00 |
326.0 |
289.00 |
245.0 |
1,685 |
0.00 |
67.5 |
40.00 |
| Locked-Rotor |
252.00 |
530.0 |
189.00 |
161.0 |
0 |
0.00 |
35.5 |
40.00 |
| Full Load |
47.50 |
100.0 |
118.00 |
100.0 |
1,780 |
31.80 |
83.5 |
40.00 |
| 2/3 |
202.00 |
442.0 |
200.00 |
190.0 |
1,200 |
0.00 |
0.0 |
40.00 |
| Pull-Up |
227.00 |
526.0 |
171.00 |
153.0 |
900 |
0.00 |
0.0 |
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
13.20 |
16.00 |
22.00 |
29.60 |
38.00 |
44.00 |
47.60 |
| Rated Output (KW) |
0.60 |
8.10 |
15.80 |
23.60 |
31.50 |
36.50 |
39.70 |
| Efficiency (%) |
0.0 |
91.7 |
93.6 |
94.1 |
94.1 |
94.1 |
93.6 |
| Power Factor (%) |
4.5 |
51.0 |
72.0 |
80.5 |
84.0 |
84.5 |
84.5 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,780 |
1,778 |
1,775 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
30.0 |
40.0 |
50.0 |
| Torque (ft-lbs) |
0.00 |
29.00 |
58.50 |
88.00 |
118.00 |
136.00 |
148.00 |
