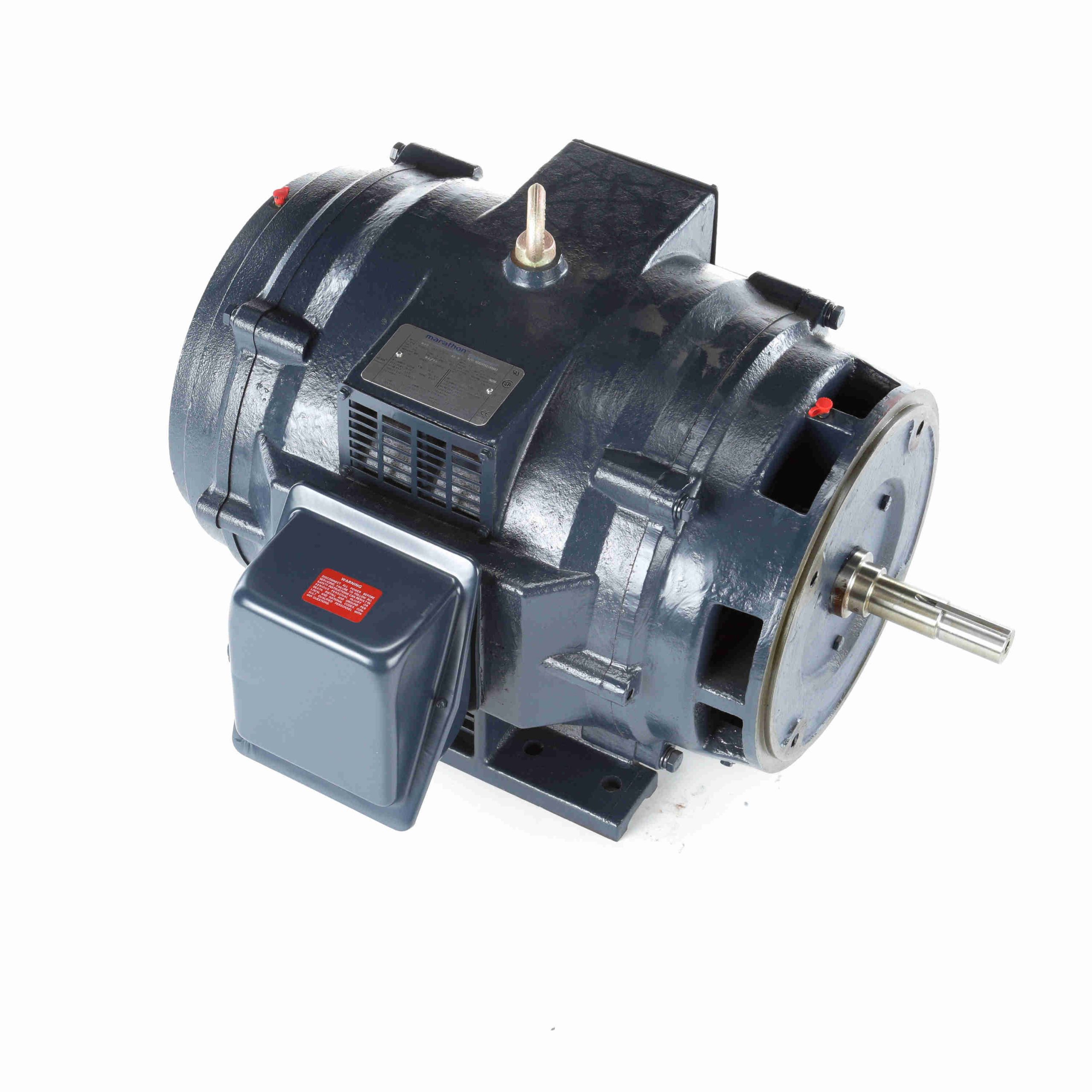

324TTDCA6082 – Marathon 25 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 230/460 V, 324JMV Frame, ODP – GT0429
324TTDCA6082 Marathon JM Motors
General Specifications
| UPC: |
722856049872 |
Weight: |
625 LB |
| Packaged Length: |
31.77 IN |
Packaged Width: |
28.03 IN |
| Packaged Height: |
28.14 IN |
Nameplate Specifications
| Output HP: |
25 Hp |
Output KW: |
18.7 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
68.0/34.0 A |
Speed: |
1190 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93 % |
Power Factor: |
74 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
324JMV |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Wye Start Delta Run Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
.3287 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal Or Shaft Down |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
JM |
Overall Length: |
28.94 in |
| Shaft Diameter: |
1.25 in |
Shaft Extension: |
5.25 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
34.00 |
100.0 |
111.00 |
100.0 |
1,188 |
|
74.0 |
25.00 |
| Break-Down |
115.00 |
338.0 |
243.00 |
219.0 |
1,125 |
|
63.0 |
25.00 |
| 1/3 |
155.00 |
455.0 |
175.00 |
155.0 |
400 |
|
|
25.00 |
| Pull-Up |
150.00 |
445.0 |
175.00 |
155.0 |
600 |
|
|
25.00 |
| 2/3 |
140.00 |
415.0 |
200.00 |
180.0 |
800 |
|
|
25.00 |
| No Load |
16.50 |
48.5 |
0.00 |
0.0 |
1,200 |
|
4.5 |
25.00 |
| Locked-Rotor |
170.00 |
500.0 |
188.00 |
169.0 |
0 |
|
37.0 |
25.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
16.50 |
18.00 |
22.00 |
27.50 |
34.00 |
38.00 |
41.50 |
| Rated Output (KW) |
0.75 |
5.40 |
10.20 |
15.00 |
20.00 |
23.20 |
25.20 |
| Efficiency (%) |
0.0 |
87.5 |
91.7 |
93.0 |
93.0 |
93.0 |
92.4 |
| Power Factor (%) |
4.5 |
37.0 |
57.0 |
69.0 |
75.0 |
75.5 |
76.0 |
| Speed (RPM) |
1,200 |
1,198 |
1,195 |
1,190 |
1,188 |
1,185 |
1,182 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
35.0 |
50.0 |
60.0 |
| Torque (ft-lbs) |
0.00 |
27.50 |
55.00 |
82.50 |
111.00 |
127.00 |
139.00 |
