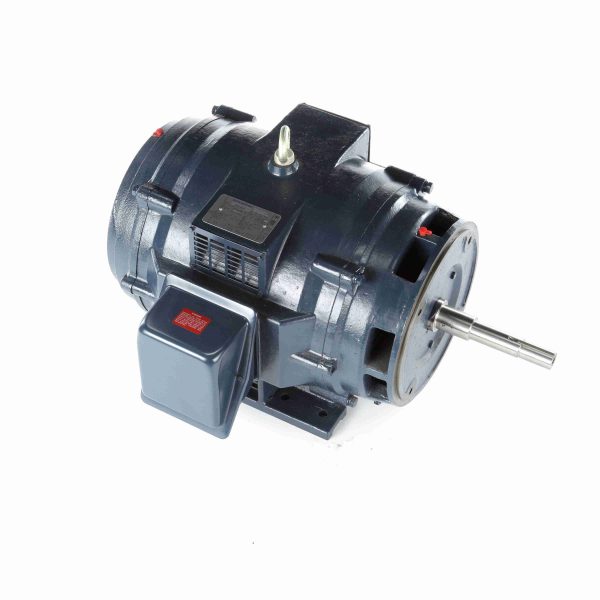

324TTDCA6085 – Marathon 25 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 230/460 V, 324JPV Frame, ODP – GT2429

324TTDCA6085 – Marathon 25 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 230/460 V, 324JPV Frame, ODP – GT2429

324TTDCA6085 Marathon JP Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Nameplated 60/50 hertz, 190/380 volts at next lower HP
  • Class F Insulation
  • Standard assembly F1, reversible to F2 assembly
  • Will become build-up item when current stock is gone

Marathon Motors
Regal Beloit

Description

324TTDCA6085 – Marathon 25 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 230/460 V, 324JPV Frame, ODP – GT2429

324TTDCA6085 Marathon JP Motors

General Specifications

UPC: 722856050076 Weight: 632 LB
Packaged Length: 13.5 IN Packaged Width: 26 IN
Packaged Height: 22 IN

Nameplate Specifications

Output HP: 25 Hp Output KW: 18.7 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 68.0/34.0 A Speed: 1190 rpm
Service Factor: 1.15 Efficiency: 93 %
Power Factor: 74 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Frame: 324JPV
Enclosure: Drip Proof Thermal Protection: No
Ambient Temperature: 40 °C Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6311 UL: Recognized
CSA: Y IP Code: 12

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Wye Start Delta Run Or Inverter
Poles: 6 Rotation: Reversible
Resistance Main: .3287 Ohms Mounting: Rigid Base
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Cast Iron Shaft Type: JP
Overall Length: 31.82 in Shaft Diameter: 1.25 in
Shaft Extension: 8.12 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 170.00 500.0 188.00 169.0 0 37.0 25.00
1/3 155.00 455.0 175.00 155.0 400 25.00
Full Load 34.00 100.0 111.00 100.0 1,188 74.0 25.00
No Load 16.50 48.5 0.00 0.0 1,200 4.5 25.00
Pull-Up 150.00 445.0 175.00 155.0 600 25.00
2/3 140.00 415.0 200.00 180.0 800 25.00
Break-Down 115.00 338.0 243.00 219.0 1,125 63.0 25.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 16.50 18.00 22.00 27.50 34.00 38.00 41.50
Rated Output (KW) 0.75 5.40 10.20 15.00 20.00 23.20 25.20
Efficiency (%) 0.0 87.5 91.7 93.0 93.0 93.0 92.4
Power Factor (%) 4.5 37.0 57.0 69.0 75.0 75.5 76.0
Speed (RPM) 1,200 1,198 1,195 1,190 1,188 1,185 1,182
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 50.0 60.0
Torque (ft-lbs) 0.00 27.50 55.00 82.50 111.00 127.00 139.00
