Description

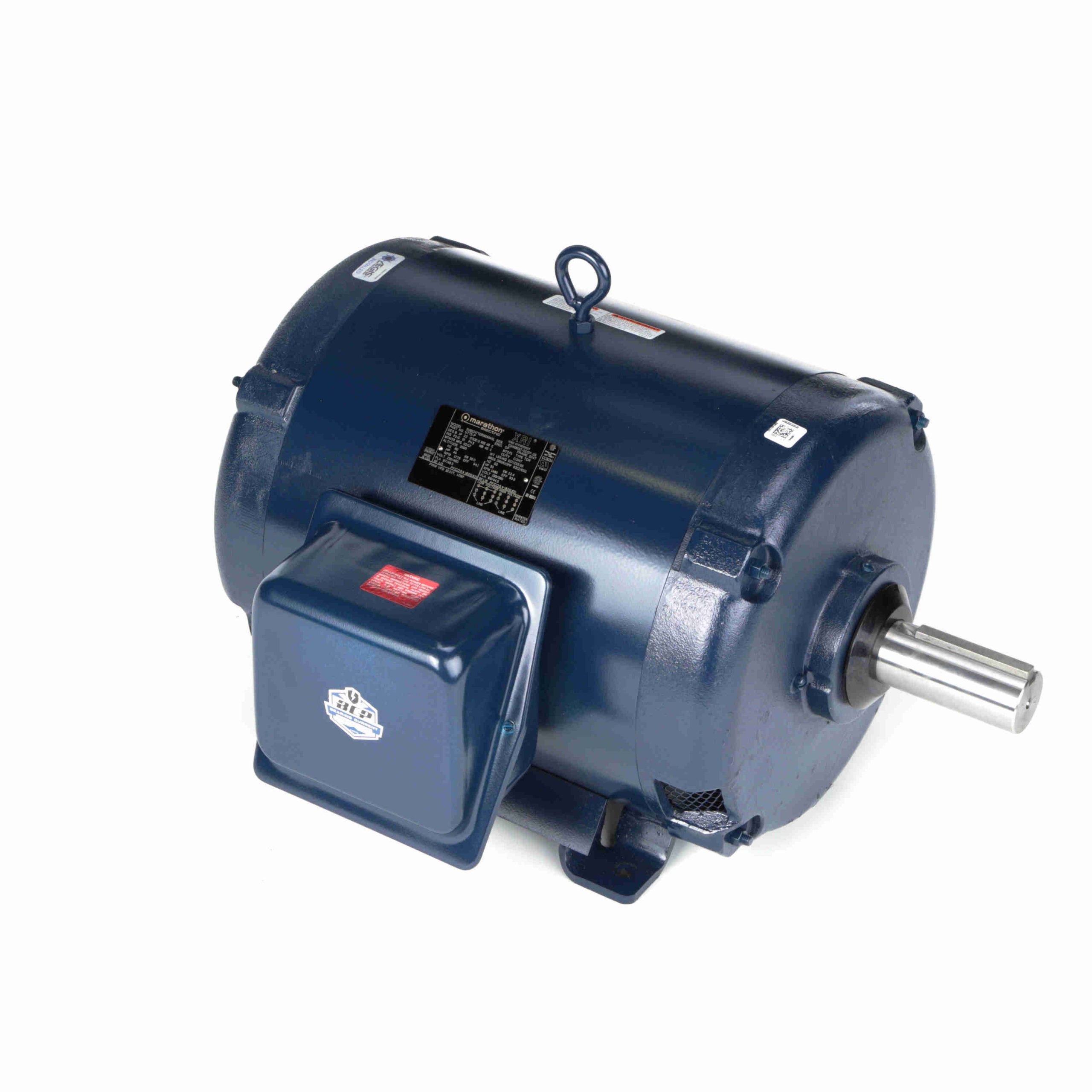

324TTDR16050 – Marathon 40 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 324T Frame, ODP – U775-P
324TTDR16050 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856013477 |
Weight: |
517 LB |
| Packaged Length: |
35 IN |
Packaged Width: |
26 IN |
| Packaged Height: |
25.28 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
97.0/48.5 A |
Speed: |
1775 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
82 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
324T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.13 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
28.31 in |
| Frame Length: |
14.50 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
5.47 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
250.00 |
515.0 |
170.00 |
144.0 |
600 |
|
|
40.00 |
| Full Load |
49.00 |
101.0 |
118.00 |
100.0 |
1,775 |
|
82.0 |
40.00 |
| Locked-Rotor |
275.00 |
567.0 |
200.00 |
169.0 |
0 |
|
31.0 |
40.00 |
| 2/3 |
210.00 |
433.0 |
210.00 |
178.0 |
1,200 |
|
|
40.00 |
| Break-Down |
175.00 |
361.0 |
275.00 |
233.0 |
1,700 |
|
63.0 |
40.00 |
| No Load |
18.00 |
37.0 |
0.00 |
0.0 |
1,800 |
|
5.0 |
40.00 |
| Pull-Up |
230.00 |
474.0 |
180.00 |
153.0 |
900 |
|
|
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
18.00 |
21.00 |
28.50 |
38.00 |
48.50 |
56.00 |
61.00 |
| Rated Output (KW) |
0.75 |
8.50 |
16.00 |
24.00 |
31.80 |
36.50 |
40.00 |
| Efficiency (%) |
0.0 |
89.5 |
93.0 |
93.6 |
94.1 |
93.6 |
93.0 |
| Power Factor (%) |
6.0 |
49.0 |
70.0 |
79.0 |
82.0 |
82.5 |
83.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,775 |
1,772 |
1,770 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
70.0 |
85.0 |
| Torque (ft-lbs) |
0.00 |
29.50 |
59.00 |
88.50 |
118.00 |
136.00 |
148.00 |
