Description

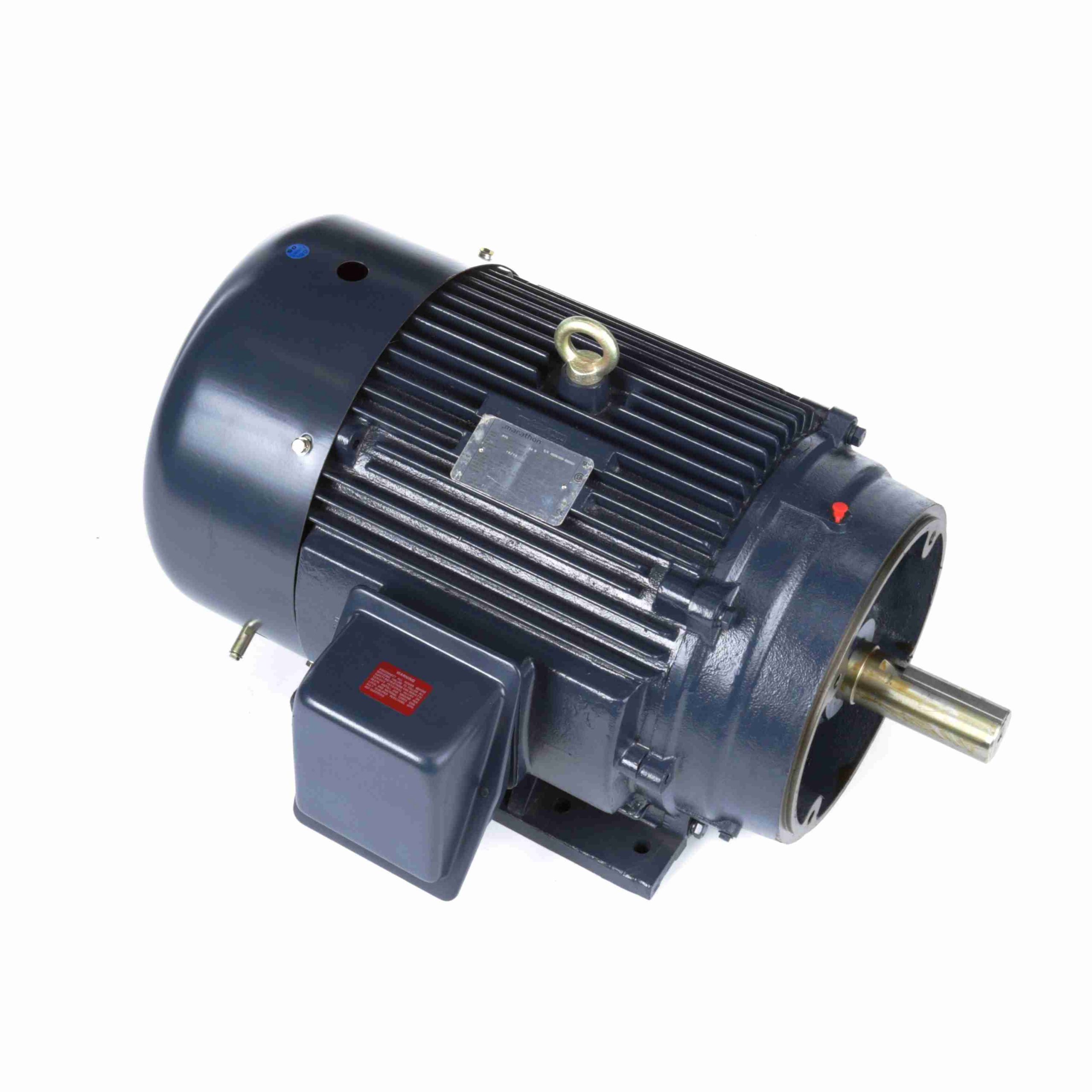

324TTFCD6028 – Marathon 40 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 324TC Frame, TEFC – GT1234A
324TTFCD6028 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856062819 |
Weight: |
646 LB |
| Packaged Length: |
31.77 IN |
Packaged Width: |
28.03 IN |
| Packaged Height: |
28.14 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
95.0/47.5 A |
Speed: |
1782 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
84 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
324TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6212 |
| UL: |
Listed |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
| Hazardous Location: |
DIVISION 2 T2B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
.18 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
29.69 in |
| Frame Length: |
13.07 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
5.25 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
230.00 |
485.0 |
180.00 |
152.0 |
900 |
0.00 |
0.0 |
40.00 |
| Locked-Rotor |
290.00 |
610.0 |
212.00 |
180.0 |
0 |
71.50 |
32.0 |
40.00 |
| No Load |
17.50 |
37.0 |
0.00 |
0.0 |
1,800 |
0.00 |
5.0 |
40.00 |
| Break-Down |
170.00 |
360.0 |
313.00 |
265.0 |
1,710 |
90.70 |
67.0 |
40.00 |
| 1/3 |
250.00 |
525.0 |
175.00 |
150.0 |
600 |
0.00 |
0.0 |
40.00 |
| Full Load |
47.50 |
100.0 |
118.00 |
100.0 |
1,782 |
31.50 |
84.0 |
40.00 |
| 2/3 |
210.00 |
440.0 |
220.00 |
185.0 |
1,200 |
0.00 |
0.0 |
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
17.50 |
20.50 |
27.80 |
37.00 |
47.50 |
54.20 |
59.00 |
| Rated Output (KW) |
0.70 |
8.20 |
15.90 |
23.70 |
31.70 |
36.60 |
39.90 |
| Efficiency (%) |
0.0 |
91.0 |
93.6 |
94.1 |
94.1 |
93.6 |
93.0 |
| Power Factor (%) |
5.0 |
50.5 |
72.5 |
81.0 |
84.0 |
85.5 |
85.5 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,788 |
1,782 |
1,780 |
1,778 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
55.0 |
75.0 |
85.0 |
| Torque (ft-lbs) |
0.00 |
29.30 |
58.50 |
88.30 |
118.00 |
136.00 |
148.50 |
