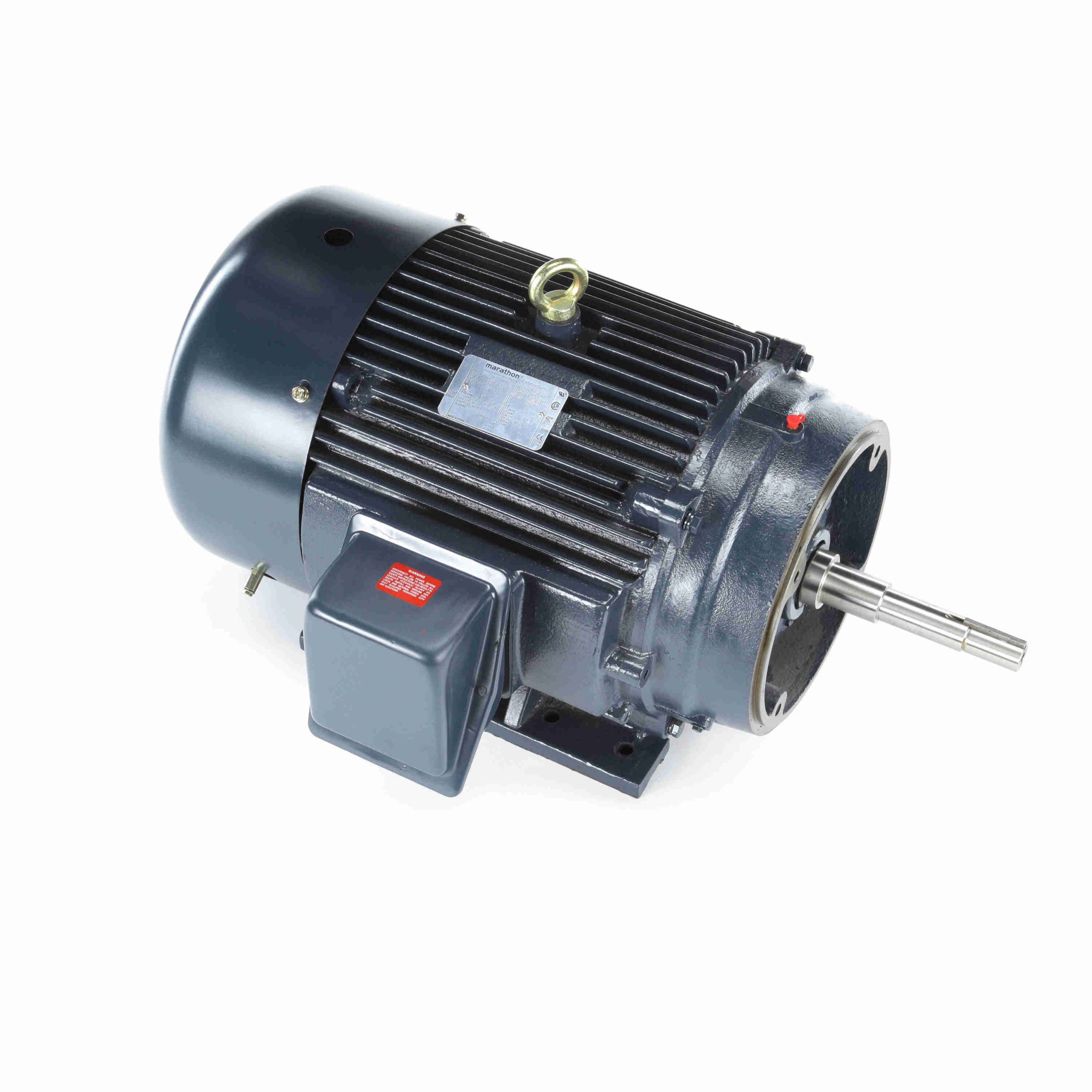

324TTFCD6038 – Marathon 40 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 324JP Frame, TEFC – GT3534A

324TTFCD6038 – Marathon 40 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 324JP Frame, TEFC – GT3534A

324TTFCD6038 Marathon JP Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

Marathon Motors
Regal Beloit

Description

324TTFCD6038 – Marathon 40 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 324JP Frame, TEFC – GT3534A

324TTFCD6038 Marathon JP Motors

General Specifications

UPC: 722856064110 Weight: 647 LB
Packaged Length: 31.77 IN Packaged Width: 28.03 IN
Packaged Height: 28.14 IN

Nameplate Specifications

Output HP: 40 Hp Output KW: 30.0 kW
Frequency: 60 Hz Voltage: 575 V
Current: 38.0 A Speed: 1782 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 94.1 % Power Factor: 84
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 324JP Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6312 Opp Drive End Bearing Size: 6212
UL: Listed CSA: Y
CE: Y IP Code: 55
Hazardous Location: DIVISION 2 T2B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Selective Clockwise
Resistance Main: .18 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: JP Overall Length: 36.92 in
Frame Length: 13.07 in Shaft Diameter: 1.296 in
Shaft Extension: 10.98 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 47.50 100.0 118.00 100.0 1,782 31.50 84.0 40.00
Break-Down 170.00 360.0 313.00 265.0 1,710 90.70 67.0 40.00
1/3 250.00 525.0 175.00 150.0 600 0.00 0.0 40.00
No Load 17.50 37.0 0.00 0.0 1,800 0.00 5.0 40.00
2/3 210.00 440.0 220.00 185.0 1,200 0.00 0.0 40.00
Locked-Rotor 290.00 610.0 212.00 180.0 0 71.50 32.0 40.00
Pull-Up 230.00 485.0 180.00 152.0 900 0.00 0.0 40.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 14.00 16.40 22.24 29.60 38.00 43.36 47.20
Rated Output (KW) 0.70 8.20 15.90 23.70 31.70 36.60 39.90
Efficiency (%) 0.0 91.0 93.6 94.1 94.1 93.6 93.0
Power Factor (%) 5.0 50.5 72.5 81.0 84.0 85.5 85.5
Speed (RPM) 1,800 1,795 1,790 1,788 1,782 1,780 1,778
Temp. Rise @ FL 0.0 0.0 0.0 0.0 55.0 75.0 85.0
Torque (ft-lbs) 0.00 29.30 58.50 88.30 118.00 136.00 148.50
