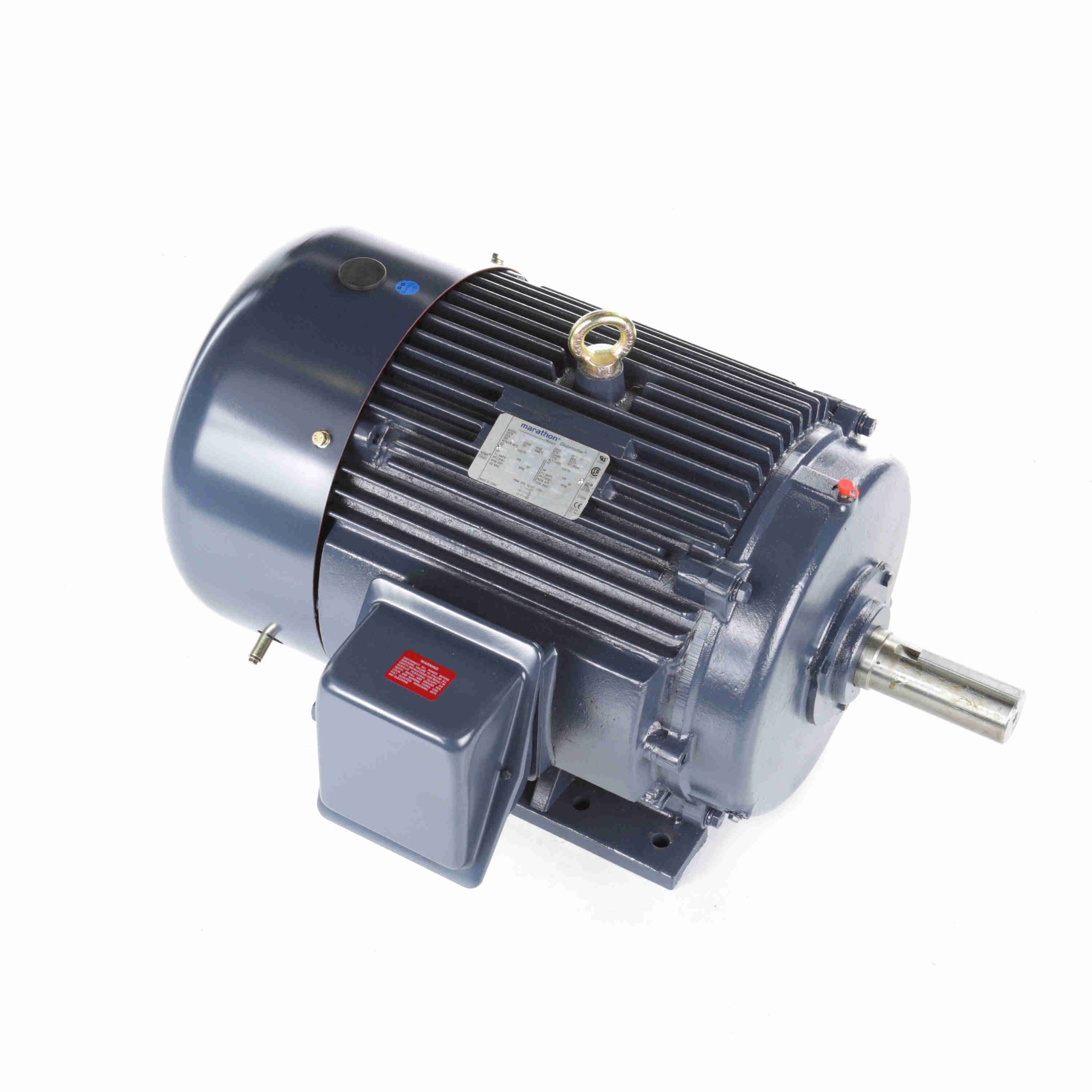

324TTFCD6080 – Marathon 25 HP General Purpose Motor, 3 phase, 1200 RPM, 575 V, 324T Frame, TEFC – GT1129A

324TTFCD6080 – Marathon 25 HP General Purpose Motor, 3 phase, 1200 RPM, 575 V, 324T Frame, TEFC – GT1129A

324TTFCD6080 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

Marathon Motors
Regal Beloit

Original price was: $7,836.00.Current price is: $4,000.80.

Description

324TTFCD6080 – Marathon 25 HP General Purpose Motor, 3 phase, 1200 RPM, 575 V, 324T Frame, TEFC – GT1129A

324TTFCD6080 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856063090 Weight: 690 LB
Packaged Length: 31.77 IN Packaged Width: 28.03 IN
Packaged Height: 28.14 IN

Nameplate Specifications

Output HP: 25 Hp Output KW: 18.7 kW
Frequency: 60 Hz Voltage: 575 V
Current: 25.6 A Speed: 1184 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 93 % Power Factor: 78.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 324T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6312 Opp Drive End Bearing Size: 6212
UL: Listed CSA: Y
CE: Y IP Code: 55
Hazardous Location: DIVISION 2 T2B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Selective Clockwise
Resistance Main: .327 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 29.69 in
Frame Length: 13.07 in Shaft Diameter: 2.125 in
Shaft Extension: 5.25 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
2/3 132.00 410.0 208.00 188.0 800 25.00
Locked-Rotor 182.00 562.0 200.00 180.0 0 36.0 25.00
Break-Down 105.00 325.0 272.00 245.0 1,138 65.0 25.00
Full Load 32.00 100.0 111.00 100.0 1,184 78.5 25.00
Pull-Up 145.00 450.0 168.00 150.0 600 25.00
1/3 158.00 490.0 165.00 150.0 400 25.00
No Load 15.00 47.0 0.00 0.0 1,200 4.5 25.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 12.00 13.20 16.40 20.80 25.60 29.20 31.60
Rated Output (KW) 0.76 5.40 10.20 15.00 20.00 23.00 25.20
Efficiency (%) 0.0 88.5 92.4 93.0 93.0 92.7 92.4
Power Factor (%) 4.5 39.8 62.0 73.5 78.5 80.5 81.0
Speed (RPM) 1,200 1,196 1,192 1,188 1,184 1,180 1,180
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 80.0 95.0
Torque (ft-lbs) 0.00 27.50 55.00 82.50 111.00 127.00 139.00
