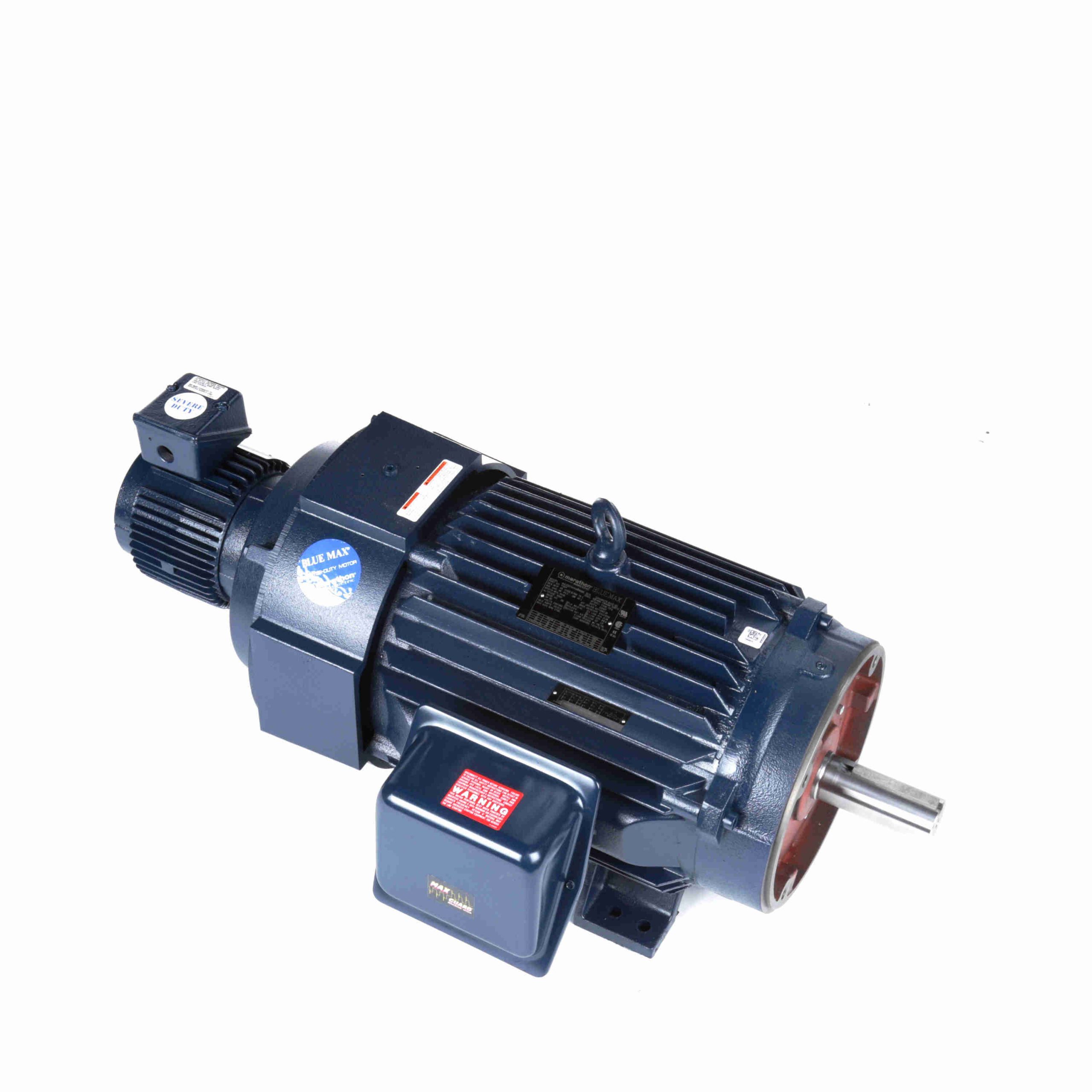

326THFPA8086 – Marathon 30 HP Variable Speed Motor, 3 phase, 1200 RPM, 230/460 V, 326TC Frame, TEBC – Y584

326THFPA8086 – Marathon 30 HP Variable Speed Motor, 3 phase, 1200 RPM, 230/460 V, 326TC Frame, TEBC – Y584

326THFPA8086 Marathon 2000:1 With Encoder Provision Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • MAX GUARD® Class H insulation system
  • Constant torque operation from 0 to base speed on vector drive, including TEFC (On Volts/Hertz drives, TEFC motors are limited to 20:1 constant torque
  • Constant HP operation to twice base speed (143-256 frame);1.5 times base (all others)
  • Optimized for operation with IGBT inverter (NEMA Design B)
  • Separate power supply required for blower motor
  • Normally closed thermostats (one per phase, class F)
  • Continuous duty at 40°C ambient
  • Blue Chip quality, cast iron frame and brackets
  • Patented “fracket” design (TEBC enclosure)

Marathon Motors
Regal Beloit

Original price was: $22,974.00.Current price is: $13,348.82.

Description

326THFPA8086 – Marathon 30 HP Variable Speed Motor, 3 phase, 1200 RPM, 230/460 V, 326TC Frame, TEBC – Y584

326THFPA8086 Marathon 2000:1 With Encoder Provision Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856025302 Weight: 627 LB
Packaged Length: 50 IN Packaged Width: 26 IN
Packaged Height: 23.63 IN

Nameplate Specifications

Output HP: 30 Hp Output KW: 22.4 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 80.5/40.0 A Speed: 1170 rpm
Service Factor: 1 Phase: 3
Efficiency: 89.5 % Power Factor: 78
Duty: Continuous Insulation Class: H
Design Code: INV KVA Code: G
Frame: 326TC Enclosure: Totally Enclosed Blower cooled – Axial
Thermal Protection: Thermostats (N/C) Ambient Temperature: 40 °C
Drive End Bearing Size: 6312 Opp Drive End Bearing Size: 6311
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Duty Starting Method: Inverter Only
Poles: 6 Rotation: Reversible
Resistance Main: .28 Ohms Mounting: Rigid base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 42.04 in
Frame Length: 16.25 in Shaft Diameter: 2.125 in
Shaft Extension: 5 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 210.00 522.0 215.00 159.0 0 37.0 30.00
Full Load 40.20 100.0 135.00 100.0 1,170 30.00
No Load 18.50 46.0 0.00 0.0 1,200 30.00
2/3 180.00 448.0 225.00 167.0 800 30.00
1/3 200.00 498.0 185.00 137.0 400 30.00
Break-Down 130.00 323.0 320.00 237.0 1,070 64.0 30.00
Pull-Up 190.00 473.0 195.00 144.0 600 30.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 % 200 %
Current (Amps) 18.50 21.00 26.00 32.50 40.20 49.50 0.00 0.00
Rated Output (KW) 0.90 6.50 12.50 18.50 25.00 31.50 0.00 0.00
Efficiency (%) 0.0 85.5 90.2 90.2 89.5 88.5 0.0 0.0
Power Factor (%) 6.0 40.0 63.0 73.0 78.0 80.0 0.0 0.0
Speed (RPM) 1,200 1,192 1,186 1,178 1,170 1,160 0 0
Temp. Rise @ FL 0.0 0.0 0.0 0.0 75.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 33.00 66.00 100.00 135.00 170.00 0.00 0.00
