Description

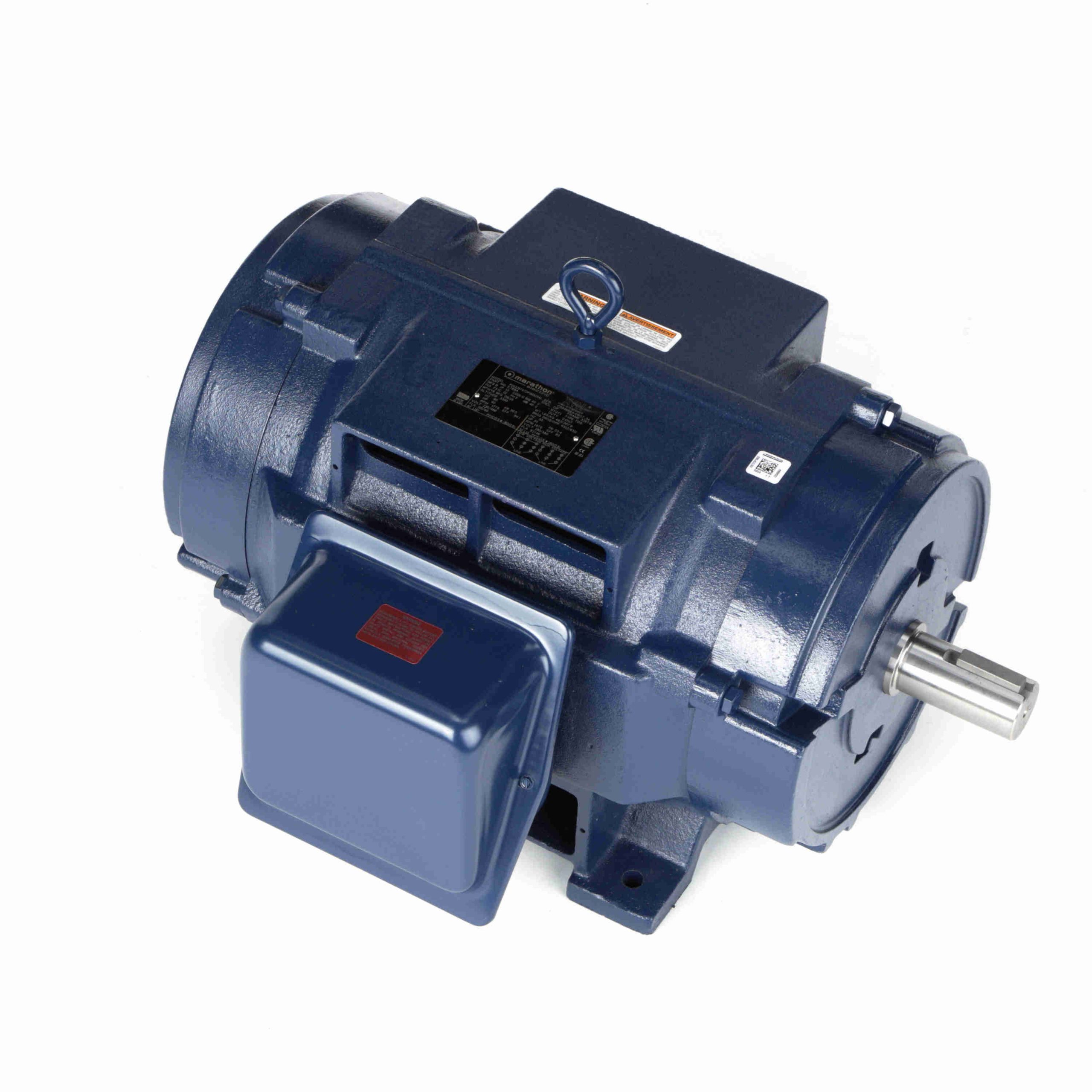

326TSTDP16032 – Marathon 40 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 326TS Frame, ODP – E789A
326TSTDP16032 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856013224 |
Weight: |
462 LB |
| Packaged Length: |
35 IN |
Packaged Width: |
26 IN |
| Packaged Height: |
24.36 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
100.0/50.0 A |
Speed: |
1775 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
80 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
326TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
23 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.155 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
26.00 in |
| Frame Length: |
15.12 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
4.02 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
22.00 |
44.0 |
0.00 |
0.0 |
1,800 |
|
4.5 |
40.00 |
| Full Load |
50.00 |
100.0 |
119.00 |
100.0 |
1,775 |
|
80.0 |
40.00 |
| Break-Down |
200.00 |
400.0 |
310.00 |
261.0 |
1,655 |
|
65.0 |
40.00 |
| Pull-Up |
260.00 |
520.0 |
210.00 |
176.0 |
900 |
|
|
40.00 |
| Locked-Rotor |
285.00 |
570.0 |
238.00 |
200.0 |
0 |
|
36.0 |
40.00 |
| 1/3 |
275.00 |
550.0 |
210.00 |
176.0 |
600 |
|
|
40.00 |
| 2/3 |
240.00 |
480.0 |
250.00 |
210.0 |
1,200 |
|
|
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
140 % |
| Current (Amps) |
22.00 |
25.00 |
31.50 |
40.00 |
50.00 |
57.00 |
61.00 |
68.00 |
| Rated Output (KW) |
1.00 |
8.50 |
16.00 |
24.00 |
31.50 |
36.50 |
40.00 |
45.00 |
| Efficiency (%) |
0.0 |
89.5 |
93.0 |
94.1 |
94.1 |
93.6 |
93.0 |
92.4 |
| Power Factor (%) |
4.5 |
42.0 |
64.0 |
75.0 |
80.0 |
82.0 |
82.5 |
83.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,785 |
1,780 |
1,775 |
1,770 |
1,765 |
1,758 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
45.0 |
60.0 |
75.0 |
90.0 |
| Torque (ft-lbs) |
0.00 |
29.50 |
59.00 |
88.50 |
119.00 |
138.00 |
150.00 |
167.00 |
