326TTDBD6032 – Marathon 50 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 230/460 V, 326JM Frame, ODP – GT0477

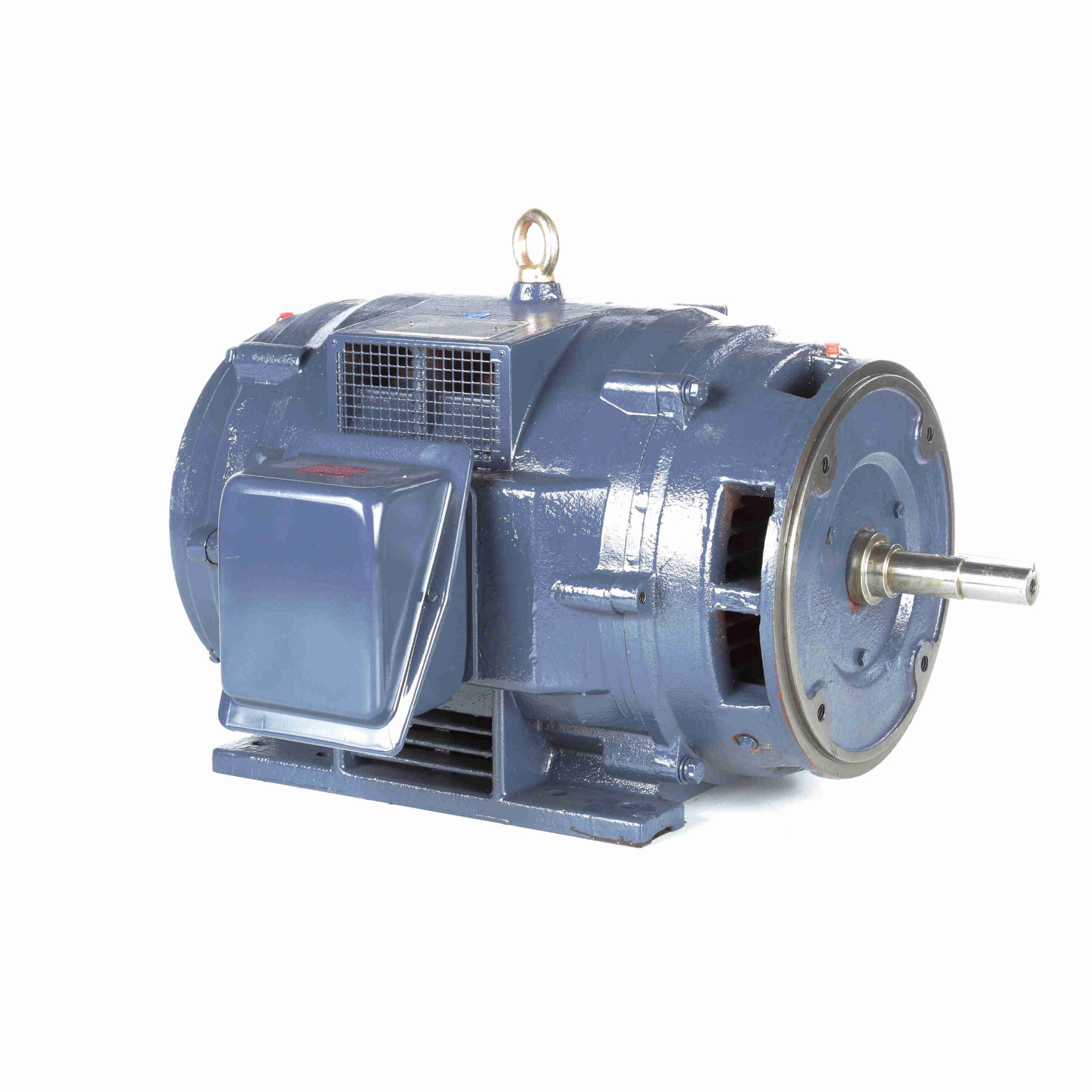

326TTDBD6032 Marathon JM Motors
General Specifications
| UPC: |
722856060839 |
Weight: |
608 LB |
| Packaged Length: |
31.77 IN |
Packaged Width: |
28.03 IN |
| Packaged Height: |
28.14 IN |
Nameplate Specifications
| Output HP: |
50 Hp |
Output KW: |
37.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
118.0/59.0 A |
Speed: |
1780 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.5 % |
Power Factor: |
84 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
326JM |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
.158 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
JM |
Overall Length: |
30.12 in |
| Frame Length: |
15.74 in |
Shaft Diameter: |
2.36 in |
| Shaft Extension: |
5.5 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
310.00 |
525.0 |
235.00 |
160.0 |
600 |
|
|
50.00 |
| Break-Down |
193.00 |
330.0 |
363.00 |
245.0 |
1,695 |
|
67.0 |
50.00 |
| 2/3 |
255.00 |
430.0 |
295.00 |
200.0 |
1,200 |
|
|
50.00 |
| Full Load |
59.00 |
100.0 |
148.00 |
100.0 |
1,780 |
|
84.0 |
50.00 |
| No Load |
24.00 |
41.0 |
0.00 |
0.0 |
1,800 |
|
3.5 |
50.00 |
| Locked-Rotor |
355.00 |
600.0 |
274.00 |
185.0 |
0 |
|
36.0 |
50.00 |
| Pull-Up |
285.00 |
485.0 |
240.00 |
162.0 |
900 |
|
|
50.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
24.00 |
27.50 |
35.50 |
46.50 |
59.00 |
67.00 |
72.80 |
| Rated Output (KW) |
0.72 |
10.00 |
19.60 |
29.30 |
39.30 |
45.50 |
49.50 |
| Efficiency (%) |
0.0 |
92.4 |
94.5 |
95.0 |
94.5 |
94.1 |
94.1 |
| Power Factor (%) |
3.5 |
46.5 |
69.5 |
79.5 |
84.0 |
85.0 |
85.5 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,780 |
1,775 |
1,775 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
35.0 |
50.0 |
60.0 |
| Torque (ft-lbs) |
0.00 |
36.50 |
73.50 |
110.00 |
147.00 |
170.00 |
184.50 |
