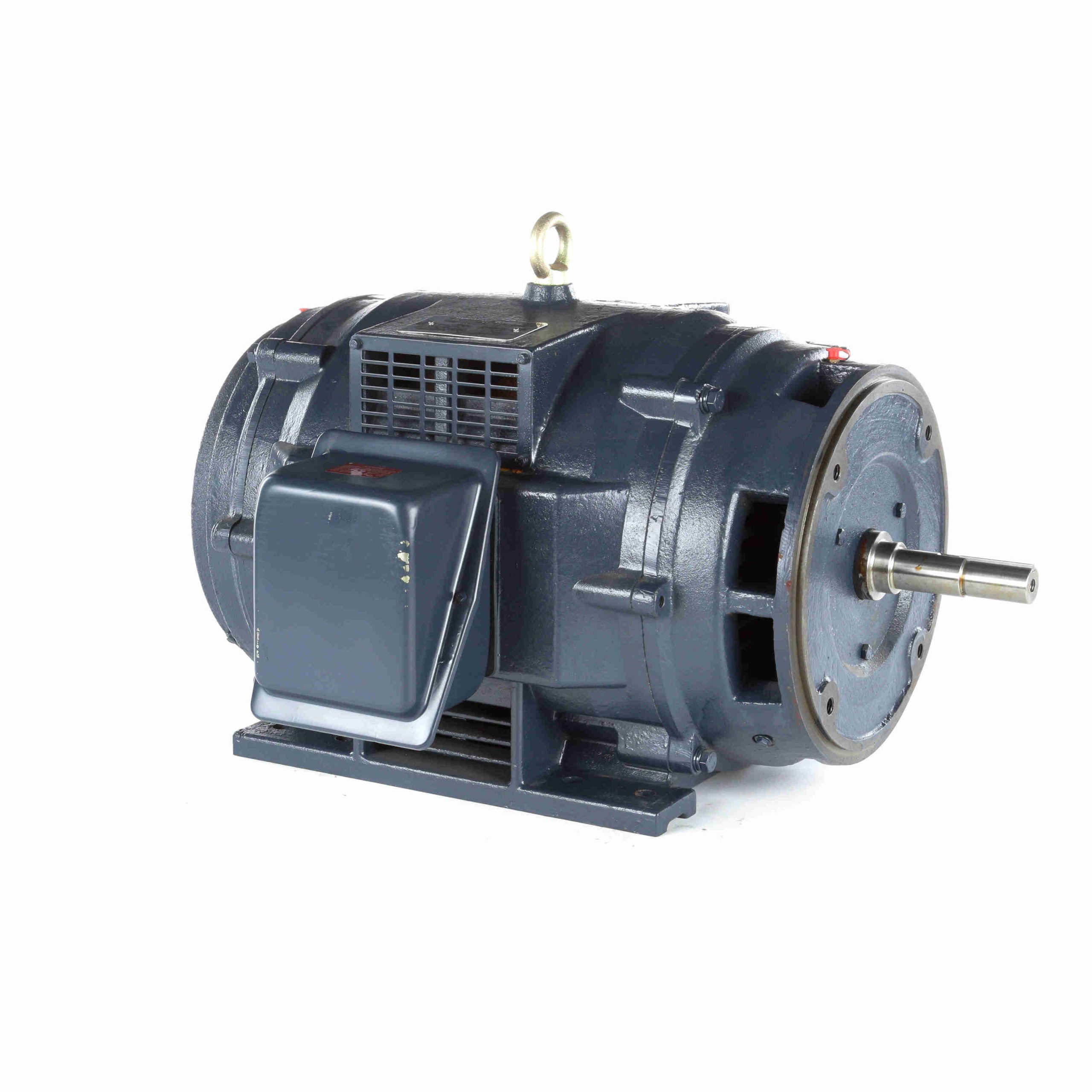

326TTDBD6082 – Marathon 30 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 230/460 V, 326JM Frame, ODP – GT0471
326TTDBD6082 Marathon JM Motors
General Specifications
| UPC: |
722856063670 |
Weight: |
625 LB |
| Packaged Length: |
31.77 IN |
Packaged Width: |
28.03 IN |
| Packaged Height: |
28.14 IN |
Nameplate Specifications
| Output HP: |
30 Hp |
Output KW: |
22.4 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
75.0/37.5 A |
Speed: |
1188 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93.6 % |
Power Factor: |
79.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
326JM |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
.246 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
JM |
Overall Length: |
30.12 in |
| Frame Length: |
15.74 in |
Shaft Diameter: |
1.249 in |
| Shaft Extension: |
5.5 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
37.60 |
100.0 |
133.00 |
100.0 |
1,185 |
|
79.5 |
30.00 |
| 1/3 |
182.00 |
485.0 |
195.00 |
148.0 |
400 |
|
|
30.00 |
| Pull-Up |
165.00 |
440.0 |
200.00 |
150.0 |
600 |
|
|
30.00 |
| Break-Down |
111.00 |
295.0 |
319.00 |
240.0 |
130 |
|
64.0 |
30.00 |
| No Load |
16.50 |
44.0 |
0.00 |
0.0 |
1,200 |
|
4.5 |
30.00 |
| Locked-Rotor |
210.00 |
560.0 |
239.00 |
180.0 |
0 |
|
35.0 |
30.00 |
| 2/3 |
150.00 |
400.0 |
250.00 |
188.0 |
800 |
|
|
30.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
16.50 |
18.60 |
23.40 |
30.00 |
37.60 |
42.70 |
46.30 |
| Rated Output (KW) |
0.75 |
6.40 |
12.20 |
17.90 |
24.00 |
27.40 |
30.00 |
| Efficiency (%) |
0.0 |
89.5 |
93.3 |
93.6 |
93.6 |
93.6 |
93.0 |
| Power Factor (%) |
4.5 |
42.0 |
64.0 |
75.0 |
79.5 |
81.0 |
81.5 |
| Speed (RPM) |
1,200 |
1,198 |
1,196 |
1,192 |
1,188 |
1,185 |
1,182 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
55.0 |
65.0 |
| Torque (ft-lbs) |
0.00 |
32.80 |
66.00 |
99.00 |
133.00 |
153.00 |
166.00 |
