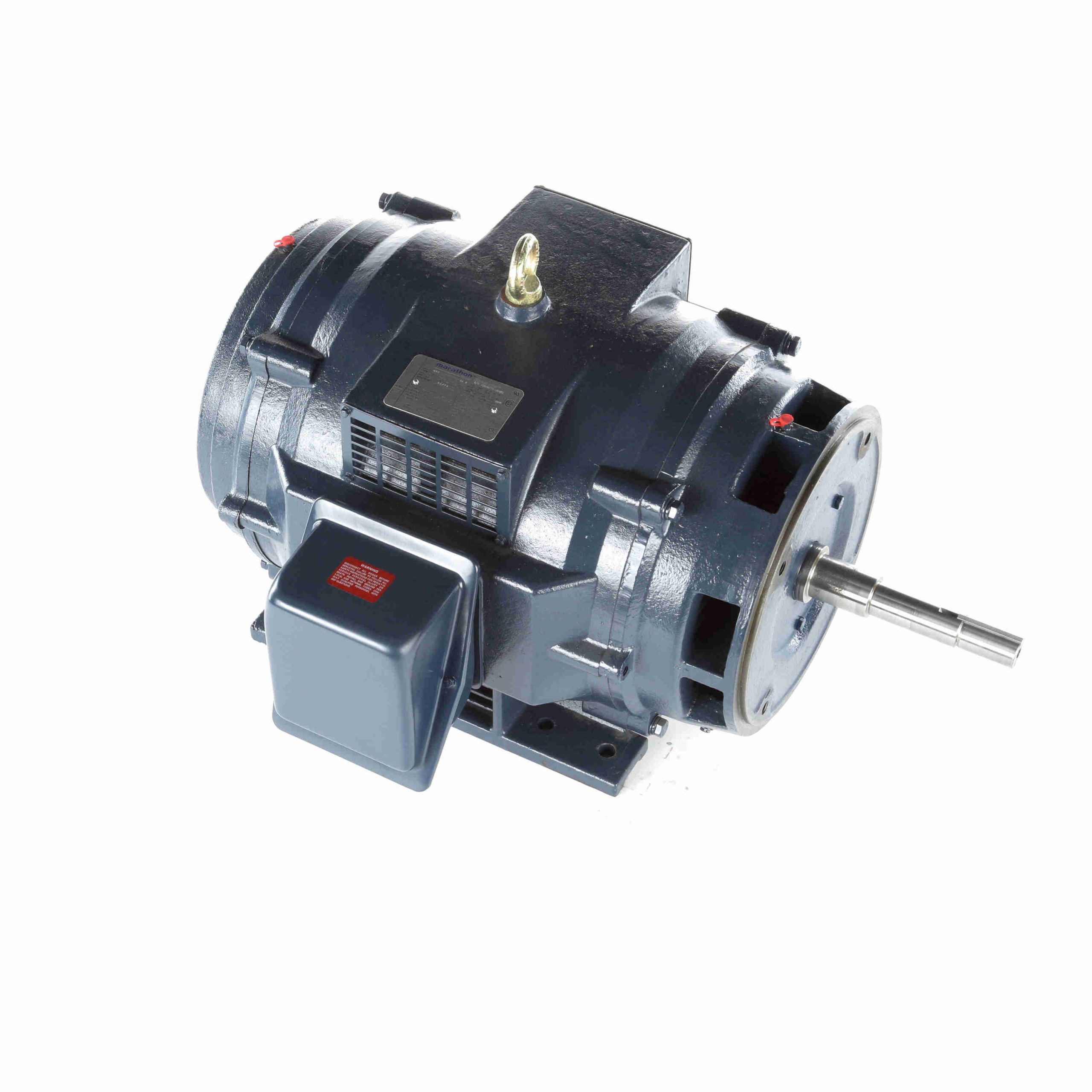

326TTDBD6085 – Marathon 30 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 230/460 V, 326JP Frame, ODP – GT2471

326TTDBD6085 – Marathon 30 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 230/460 V, 326JP Frame, ODP – GT2471

326TTDBD6085 Marathon JP Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Nameplated 60/50 hertz, 190/380 volts at next lower HP
  • Steel frame with Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

Marathon Motors
Regal Beloit

Description

326TTDBD6085 – Marathon 30 HP Close-Coupled Pump Motor, 3 phase, 1200 RPM, 230/460 V, 326JP Frame, ODP – GT2471

326TTDBD6085 Marathon JP Motors

General Specifications

UPC: 722856063984 Weight: 688 LB
Packaged Length: 36 IN Packaged Width: 35 IN
Packaged Height: 21 IN

Nameplate Specifications

Output HP: 30 Hp Output KW: 22.4 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 75.0/37.5 A Speed: 1188 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 93.6 % Power Factor: 79.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 326JP Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6312 Opp Drive End Bearing Size: 6311
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Selective Clockwise
Resistance Main: .246 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: JP Overall Length: 33.00 in
Frame Length: 15.74 in Shaft Diameter: 1.249 in
Shaft Extension: 8.37 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 37.60 100.0 133.00 100.0 1,185 79.5 30.00
2/3 150.00 400.0 250.00 188.0 800 30.00
1/3 182.00 485.0 195.00 148.0 400 30.00
Locked-Rotor 210.00 560.0 239.00 180.0 0 35.0 30.00
Pull-Up 165.00 440.0 200.00 150.0 600 30.00
Break-Down 111.00 295.0 319.00 240.0 130 64.0 30.00
No Load 16.50 44.0 0.00 0.0 1,200 4.5 30.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 16.50 18.60 23.40 30.00 37.60 42.70 46.30
Rated Output (KW) 0.75 6.40 12.20 17.90 24.00 27.40 30.00
Efficiency (%) 0.0 89.5 93.3 93.6 93.6 93.6 93.0
Power Factor (%) 4.5 42.0 64.0 75.0 79.5 81.0 81.5
Speed (RPM) 1,200 1,198 1,196 1,192 1,188 1,185 1,182
Temp. Rise @ FL 0.0 0.0 0.0 0.0 40.0 55.0 65.0
Torque (ft-lbs) 0.00 32.80 66.00 99.00 133.00 153.00 166.00
