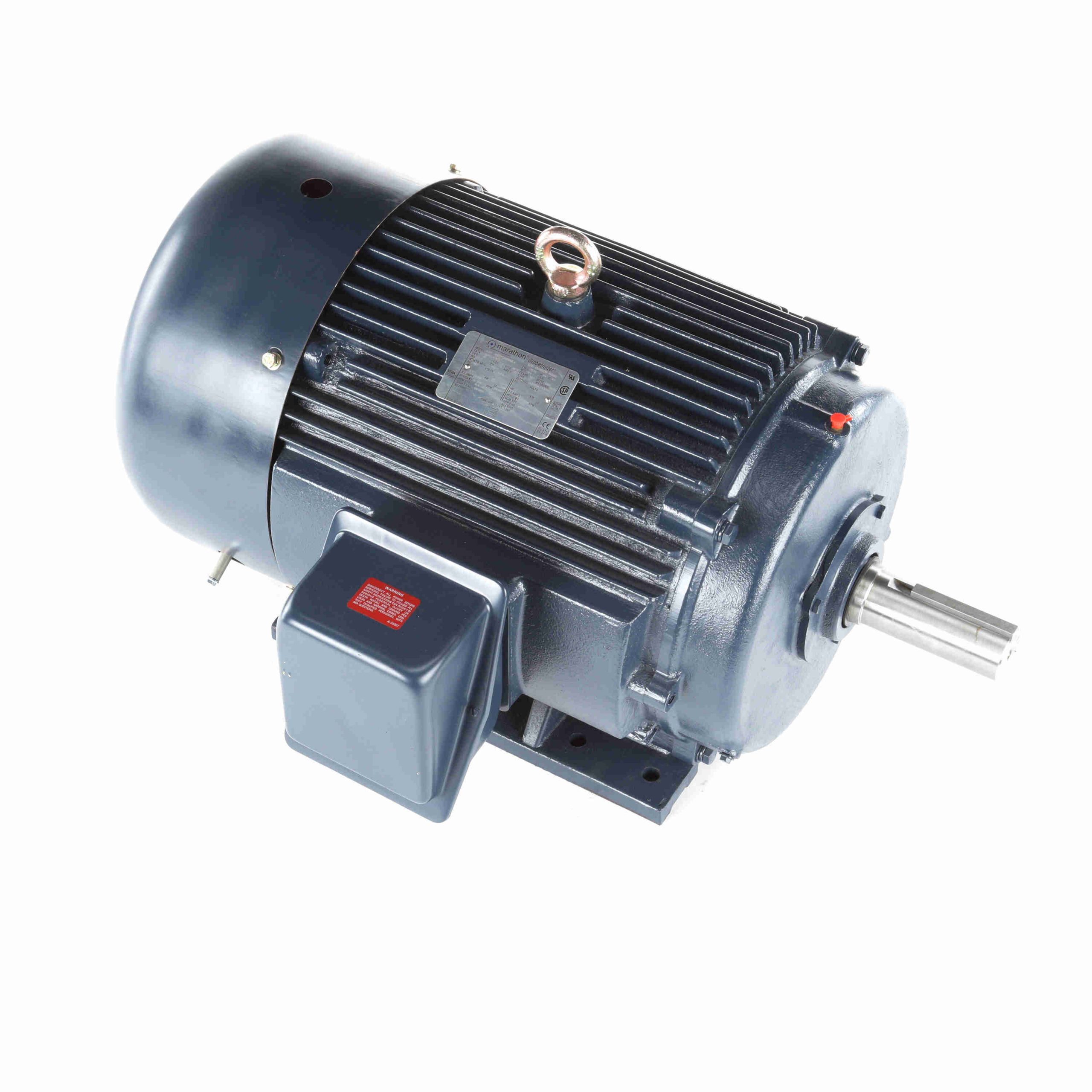

326TTFCD6080 – Marathon 30 HP General Purpose Motor, 3 phase, 1200 RPM, 575 V, 326T Frame, TEFC – GT1132A

326TTFCD6080 – Marathon 30 HP General Purpose Motor, 3 phase, 1200 RPM, 575 V, 326T Frame, TEFC – GT1132A

326TTFCD6080 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

Marathon Motors
Regal Beloit

Original price was: $8,590.00.Current price is: $4,385.21.

Description

326TTFCD6080 – Marathon 30 HP General Purpose Motor, 3 phase, 1200 RPM, 575 V, 326T Frame, TEFC – GT1132A

326TTFCD6080 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856063731 Weight: 670 LB
Packaged Length: 31.77 IN Packaged Width: 28.03 IN
Packaged Height: 28.14 IN

Nameplate Specifications

Output HP: 30 Hp Output KW: 22.4 kW
Frequency: 60 Hz Voltage: 575 V
Current: 30.5 A Speed: 1185 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 93 % Power Factor: 79
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 326T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6312 Opp Drive End Bearing Size: 6212
UL: Listed CSA: Y
CE: Y IP Code: 55
Hazardous Location: DIVISION 2 T2B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Selective Clockwise
Resistance Main: .268 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 31.19 in
Frame Length: 14.50 in Shaft Diameter: 2.125 in
Shaft Extension: 5.25 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 217.00 560.0 252.00 190.0 0 37.0 30.00
Full Load 38.00 100.0 133.00 100.0 1,185 79.0 30.00
2/3 160.00 415.0 260.00 195.0 800 30.00
Pull-Up 175.00 455.0 210.00 158.0 600 30.00
Break-Down 127.00 330.0 332.00 250.0 1,135 65.0 30.00
1/3 190.00 492.0 205.00 155.0 400 30.00
No Load 18.00 47.0 0.00 0.0 1,200 4.5 30.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 14.40 16.00 19.60 24.80 30.40 34.96 37.76
Rated Output (KW) 0.80 6.30 12.10 17.50 24.00 27.60 30.20
Efficiency (%) 0.0 88.5 92.4 93.3 93.0 92.7 92.4
Power Factor (%) 4.5 40.0 62.5 73.5 79.0 80.5 81.2
Speed (RPM) 1,200 1,196 1,192 1,188 1,185 1,182 1,180
Temp. Rise @ FL 0.0 0.0 0.0 0.0 65.0 85.0 100.0
Torque (ft-lbs) 0.00 33.00 66.00 99.50 133.00 153.00 167.00
