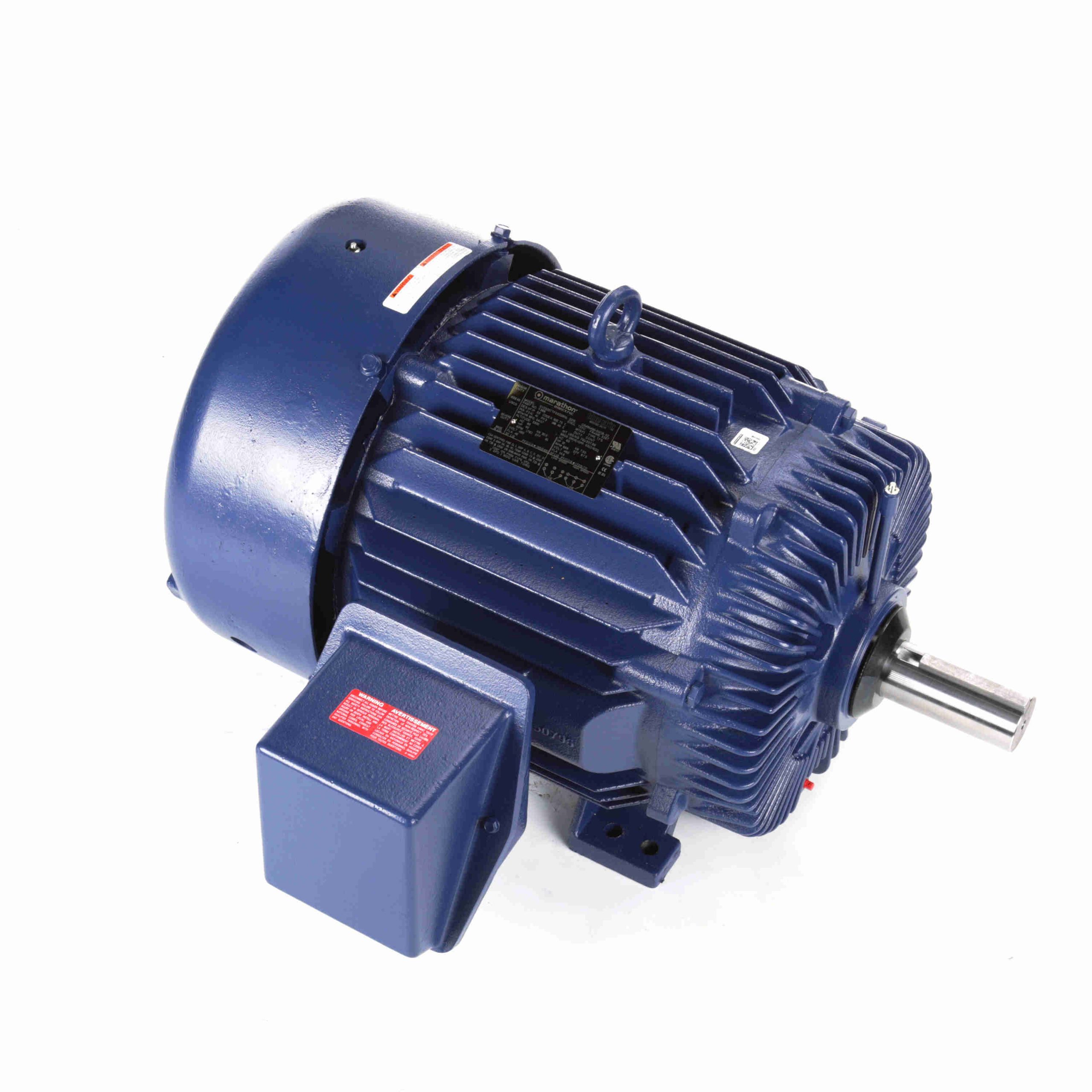

326TTFS9210 – Marathon 40,10 HP 2 speed Definite Purpose AC Motor, 3 phase, 1800/900 RPM, 460 V, 326T Frame, TEFC – Y388
326TTFS9210 Marathon Other Purpose Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856042293 |
Weight: |
751 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
24.4 IN |
Nameplate Specifications
| Output HP: |
40,10 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60/60 Hz |
Voltage: |
460 V |
| Current: |
46,14.6 A |
Speed: |
1782,888 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91 % |
Power Factor: |
88 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
1VT |
KVA Code: |
K |
| Frame: |
326T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6311 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4/8 |
Rotation: |
Reversible |
| Resistance Main: |
.188 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
30.38 in |
| Frame Length: |
13.00 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
5.49 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
14.20 |
31.0 |
0.00 |
0.0 |
1,800 |
|
|
40.00 |
| 1/3 |
400.00 |
870.0 |
200.00 |
169.0 |
600 |
|
|
40.00 |
| Pull-Up |
375.00 |
815.0 |
200.00 |
169.0 |
1,050 |
|
|
40.00 |
| Locked-Rotor |
425.00 |
924.0 |
225.00 |
191.0 |
0 |
|
33.0 |
40.00 |
| 2/3 |
325.00 |
707.0 |
210.00 |
178.0 |
1,400 |
|
|
40.00 |
| Break-Down |
225.00 |
489.0 |
375.00 |
318.0 |
1,675 |
|
73.0 |
40.00 |
| Full Load |
46.00 |
100.0 |
118.00 |
100.0 |
1,782 |
|
|
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
14.20 |
18.20 |
26.00 |
35.50 |
46.00 |
53.60 |
57.50 |
| Rated Output (KW) |
1.50 |
8.80 |
16.50 |
24.50 |
32.60 |
37.80 |
41.20 |
| Efficiency (%) |
0.0 |
85.5 |
90.2 |
91.7 |
91.0 |
91.0 |
90.2 |
| Power Factor (%) |
9.0 |
60.0 |
79.0 |
86.0 |
88.0 |
89.0 |
89.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,792 |
1,788 |
1,782 |
1,780 |
1,778 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
105.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
29.30 |
58.70 |
88.20 |
118.00 |
136.00 |
148.00 |
