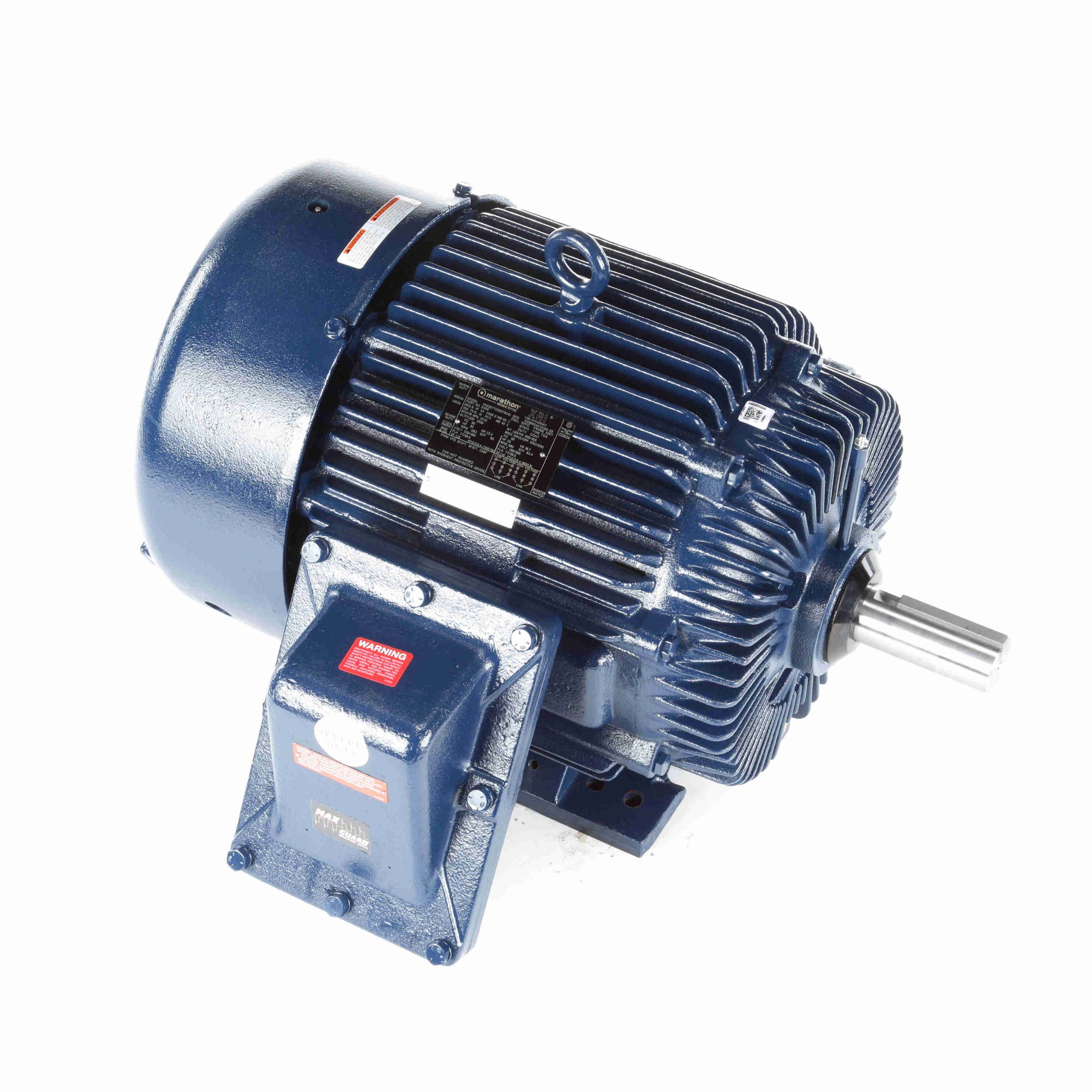

326TTGS6578 – Marathon 30 HP Explosion Proof Motor, 3 phase, 1200 RPM, 230/460 V, 326T Frame, EPFC – E565

326TTGS6578 – Marathon 30 HP Explosion Proof Motor, 3 phase, 1200 RPM, 230/460 V, 326T Frame, EPFC – E565

326TTGS6578 Marathon Explosion Proof NEMA Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets NEMA Premium® efficiency
  • 10:1 Variable torque, see Inverter Duty column for constant torque
  • MAX GUARD® Class F insulation system
  • Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
  • Internal and external epoxy paint
  • 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power
  • Precision balanced to .08”/sec, Extended grease tubes
  • Normally closed thermostats (must be connected to control circuit)
  • Meets temperature code T3B, Shaft slinger, Nameplated 60/50 Hz, 190/380 Volts, at next lower HP
  • UL listed file no. E12044, CSA certified file no. LR47504

Marathon Motors
Regal Beloit

Original price was: $13,213.00.Current price is: $9,418.23.

Description

326TTGS6578 – Marathon 30 HP Explosion Proof Motor, 3 phase, 1200 RPM, 230/460 V, 326T Frame, EPFC – E565

326TTGS6578 Marathon Explosion Proof NEMA Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856023551 Weight: 900 LB
Packaged Length: 37.88 IN Packaged Width: 31.88 IN
Packaged Height: 24.79 IN

Nameplate Specifications

Output HP: 30 Hp Output KW: 22.4 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 77.0/38.5 A Speed: 1182 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 93 % Power Factor: 79
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 326T Enclosure: Explosion Proof Fan cooled
Thermal Protection: Thermostats (N/C) Ambient Temperature: 40 °C
Drive End Bearing Size: 6312 Opp Drive End Bearing Size: 6311
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Resistance Main: .21 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 30.37 in
Frame Length: 13.00 in Shaft Diameter: 2.125 in
Shaft Extension: 5.5 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
1/3 210.00 545.0 175.00 131.0 400 30.00
2/3 180.00 468.0 190.00 142.0 800 30.00
Locked-Rotor 217.00 564.0 200.00 149.0 0 30.0 30.00
Pull-Up 200.00 519.0 175.00 131.0 600 30.00
No Load 15.00 39.0 0.00 0.0 1,200 30.00
Break-Down 140.00 364.0 375.00 280.0 1,100 66.0 30.00
Full Load 38.50 100.0 134.00 100.0 1,182 30.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 15.00 17.50 23.00 30.00 38.50 43.50 47.50
Rated Output (KW) 0.50 6.50 12.00 18.00 24.00 27.50 30.50
Efficiency (%) 0.0 88.5 92.4 93.0 93.0 92.4 91.7
Power Factor (%) 5.0 46.0 66.0 75.0 79.0 80.0 80.5
Speed (RPM) 1,200 1,195 1,190 1,185 1,182 1,178 1,175
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 80.0 100.0
Torque (ft-lbs) 0.00 33.00 66.00 100.00 134.00 154.00 168.00
