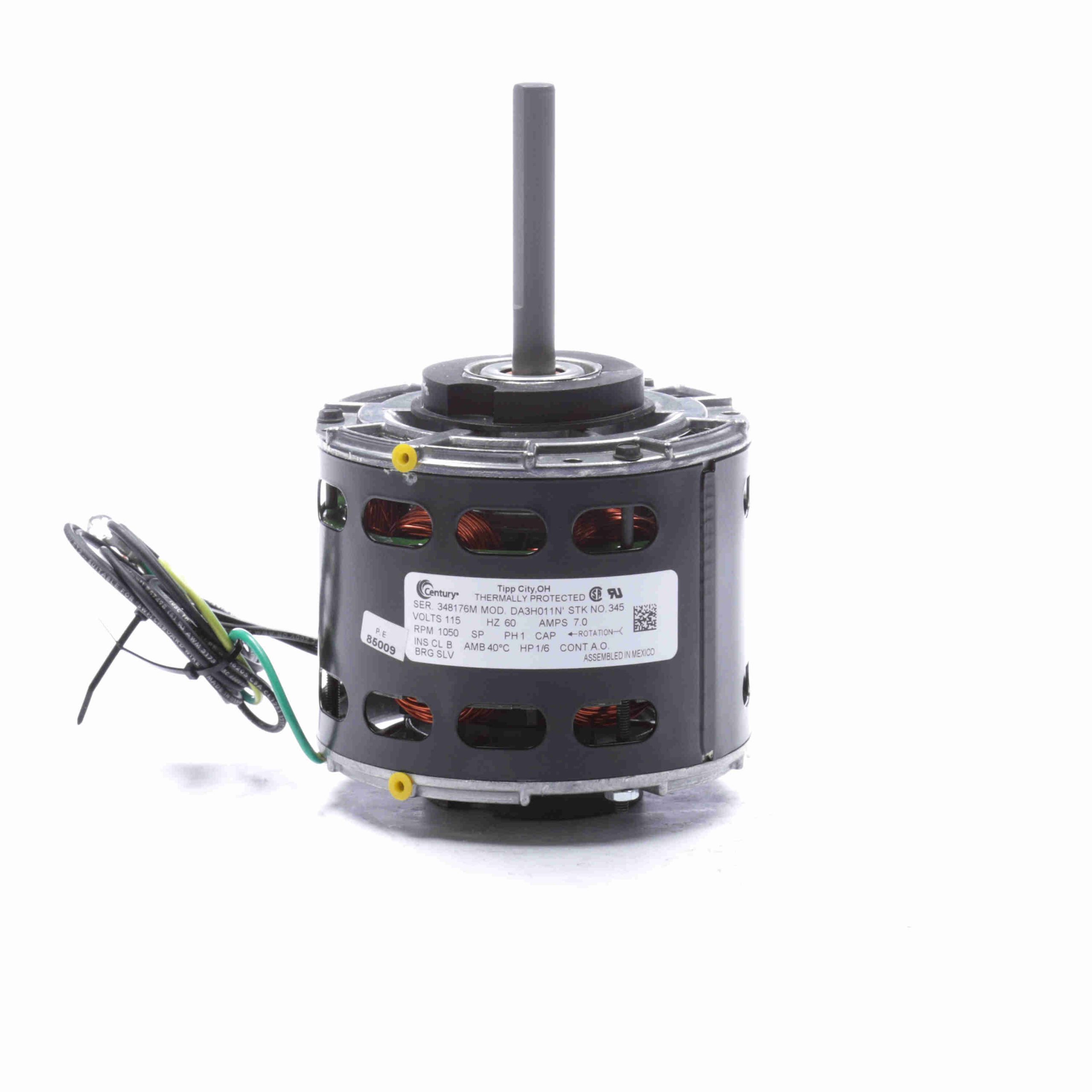

345 – Century 1/6 HP Fan & Blower Motor, 1050 RPM, 115 Volts, 42 Frame, OAO – 345

345 – Century 1/6 HP Fan & Blower Motor, 1050 RPM, 115 Volts, 42 Frame, OAO – 345

345 Century Direct Drive Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
  • 5″ Diameter – 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Shaft with Flat
  • 30″ Leads
  • Resilient Ring Mounting

Century Motors
Regal Beloit

Description

345 – Century 1/6 HP Fan & Blower Motor, 1050 RPM, 115 Volts, 42 Frame, OAO – 345

345 Century Direct Drive Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674006585 Weight: 10 LB
Packaged Length: 11 IN Packaged Width: 7.5 IN
Packaged Height: 7 IN

Nameplate Specifications

Output HP: 1/6 Hp Output KW: 0.13 kW
Frequency: 60 Hz Voltage: 115 V
Current: 7.0 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Air Over Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 6 Rotation: Clockwise Shaft End
Mounting: Resilient Rings Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 7.71 in Frame Length: 3.42 in
Shaft Diameter: 0.500 in Shaft Extension: 3.71 in
