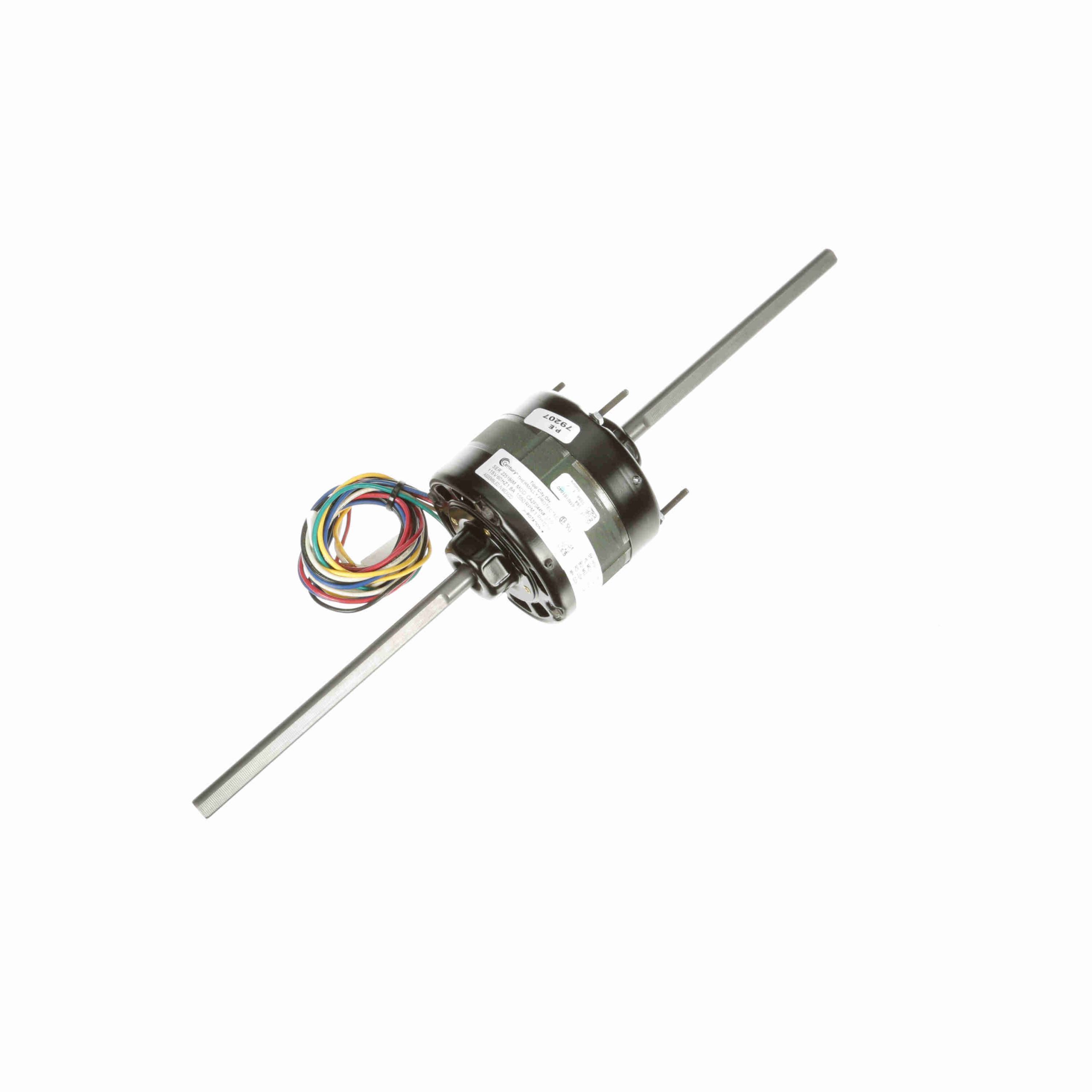

364 – Century 1/20-1/30-1/40-1/60 HP Condenser Fan Motor, 1550 RPM, 4 Speed, 115 Volts, 4.3″ Diameter, OAO – 364

364 – Century 1/20-1/30-1/40-1/60 HP Condenser Fan Motor, 1550 RPM, 4 Speed, 115 Volts, 4.3″ Diameter, OAO – 364

364 Century Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Fan Coil Motor
  • 4.4″ Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Double Shaft with Flat
  • 36″ Leads
  • Extended Studs Opposite Lead End, Resilient Ring Mounting

Century Motors
Regal Beloit

Description

364 – Century 1/20-1/30-1/40-1/60 HP Condenser Fan Motor, 1550 RPM, 4 Speed, 115 Volts, 4.3″ Diameter, OAO – 364

364 Century Condenser Fans Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674006714 Weight: 8 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 26.88 IN

Nameplate Specifications

Output HP: 1/20-1/30-1/40-1/60 Hp Output KW: 0.04 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.8/1.3/.95/.70 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Air Over Insulation Class: B
Frame: 4.4 Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Lead End
Mounting: Extended Studs Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 19.25 in Shaft Diameter: 0.500 in
Shaft Extension: 8 X 1/2 X 8 in
