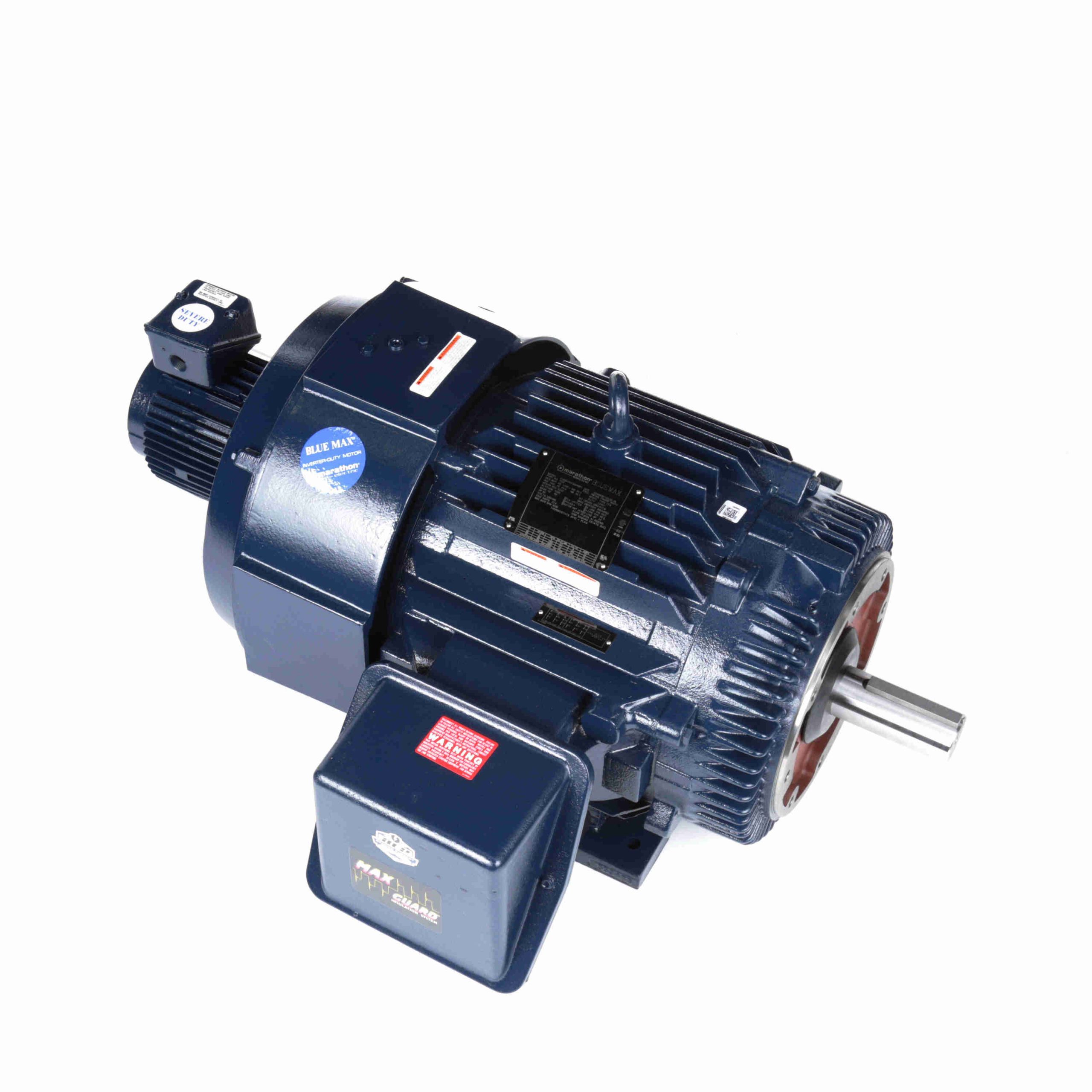

364THFS8046 – Marathon 60 HP Variable Speed Motor, 3 phase, 1800 RPM, 230/460 V, 364TC Frame, TEBC – Y515
364THFS8046 Marathon 2000:1 With Encoder Provision Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856025142 |
Weight: |
0 LB |
| Packaged Length: |
55 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
27.04 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
146.0/73.0 A |
Speed: |
1782 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
92.4 % |
Power Factor: |
83 |
| Duty: |
Continuous |
Insulation Class: |
H |
| Design Code: |
INV |
KVA Code: |
J |
| Frame: |
364TC |
Enclosure: |
Totally Enclosed Blower cooled – Axial |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Duty |
Starting Method: |
Inverter Only |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.087 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
42.67 in |
| Frame Length: |
13.50 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
5.62 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
525.00 |
714.0 |
400.00 |
226.0 |
600 |
|
|
60.00 |
| Full Load |
73.00 |
99.0 |
177.00 |
100.0 |
1,782 |
|
|
60.00 |
| Pull-Up |
500.00 |
680.0 |
425.00 |
240.0 |
900 |
|
|
60.00 |
| 2/3 |
450.00 |
612.0 |
475.00 |
268.0 |
1,200 |
|
|
60.00 |
| No Load |
27.50 |
37.0 |
0.00 |
0.0 |
1,800 |
|
|
60.00 |
| Break-Down |
285.00 |
388.0 |
525.00 |
297.0 |
1,700 |
|
68.0 |
60.00 |
| Locked-Rotor |
540.00 |
735.0 |
445.00 |
251.0 |
0 |
|
37.5 |
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
200 % |
| Current (Amps) |
27.50 |
33.00 |
44.00 |
57.50 |
73.50 |
90.00 |
108.00 |
0.00 |
| Rated Output (KW) |
1.50 |
13.00 |
24.50 |
36.50 |
48.50 |
60.50 |
73.00 |
0.00 |
| Efficiency (%) |
0.0 |
85.5 |
90.2 |
91.7 |
92.4 |
92.4 |
91.7 |
0.0 |
| Power Factor (%) |
9.5 |
50.5 |
71.0 |
79.5 |
83.0 |
84.5 |
84.5 |
0.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,786 |
1,782 |
1,776 |
1,770 |
0 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
60.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
44.00 |
88.00 |
132.00 |
177.00 |
222.00 |
267.00 |
0.00 |
