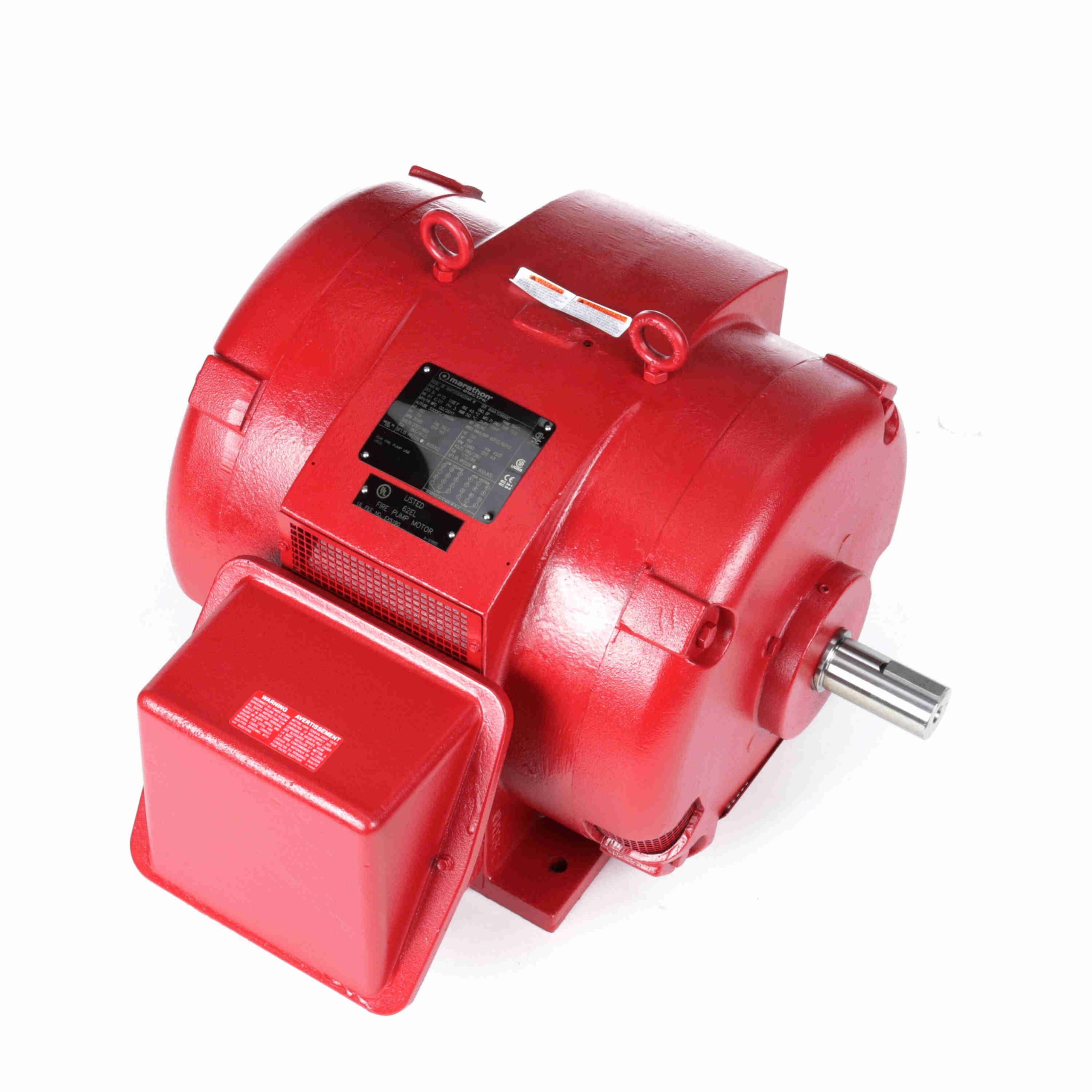

| UPC: | 722856036117 | Weight: | 750 LB |
| Packaged Length: | 37.88 IN | Packaged Width: | 31.88 IN |
| Packaged Height: | 24.92 IN |
| Output HP: | 75 Hp | Output KW: | 56.0 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 183.0/91.5 A | Speed: | 3560 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 93 % | Power Factor: | 82 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | B | KVA Code: | F |
| Frame: | 364TS | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 50 °C |
| Drive End Bearing Size: | 6312 | Opp Drive End Bearing Size: | 6312 |
| UL: | No | CSA: | Y |
| CE: | Y | IP Code: | 12 |
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Part Wdg Start Low Volt Only & Wye Start Delta Run |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | .34 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | TS | Overall Length: | 26.50 in |
| Frame Length: | 14.00 in | Shaft Diameter: | 1.875 in |
| Shaft Extension: | 4 in | Assembly/Box Mounting: | F1 ONLY |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 91.50 | 100.0 | 111.00 | 100.0 | 3,560 | 75.00 | ||
| 2/3 | 425.00 | 464.0 | 175.00 | 158.0 | 2,400 | 75.00 | ||
| Break-Down | 325.00 | 355.0 | 260.00 | 234.0 | 3,375 | 75.00 | ||
| No Load | 31.00 | 34.0 | 0.00 | 0.0 | 3,600 | 75.00 | ||
| 1/3 | 475.00 | 519.0 | 160.00 | 144.0 | 1,200 | 75.00 | ||
| Pull-Up | 450.00 | 492.0 | 165.00 | 149.0 | 1,800 | 75.00 | ||
| Locked-Rotor | 500.00 | 546.0 | 175.00 | 158.0 | 0 | 34.0 | 75.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 31.00 | 39.00 | 53.00 | 71.00 | 91.50 | 105.00 | 114.00 |
| Rated Output (KW) | 1.70 | 15.70 | 30.00 | 45.00 | 60.00 | 69.00 | 75.50 |
| Efficiency (%) | 0.0 | 88.5 | 92.4 | 93.0 | 93.0 | 93.0 | 92.4 |
| Power Factor (%) | 6.5 | 51.0 | 71.0 | 79.0 | 82.0 | 82.5 | 83.0 |
| Speed (RPM) | 3,600 | 3,588 | 3,578 | 3,565 | 3,560 | 3,550 | 3,540 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 45.0 | 60.0 | 75.0 |
| Torque (ft-lbs) | 0.00 | 27.50 | 55.00 | 83.00 | 111.00 | 128.00 | 140.00 |
