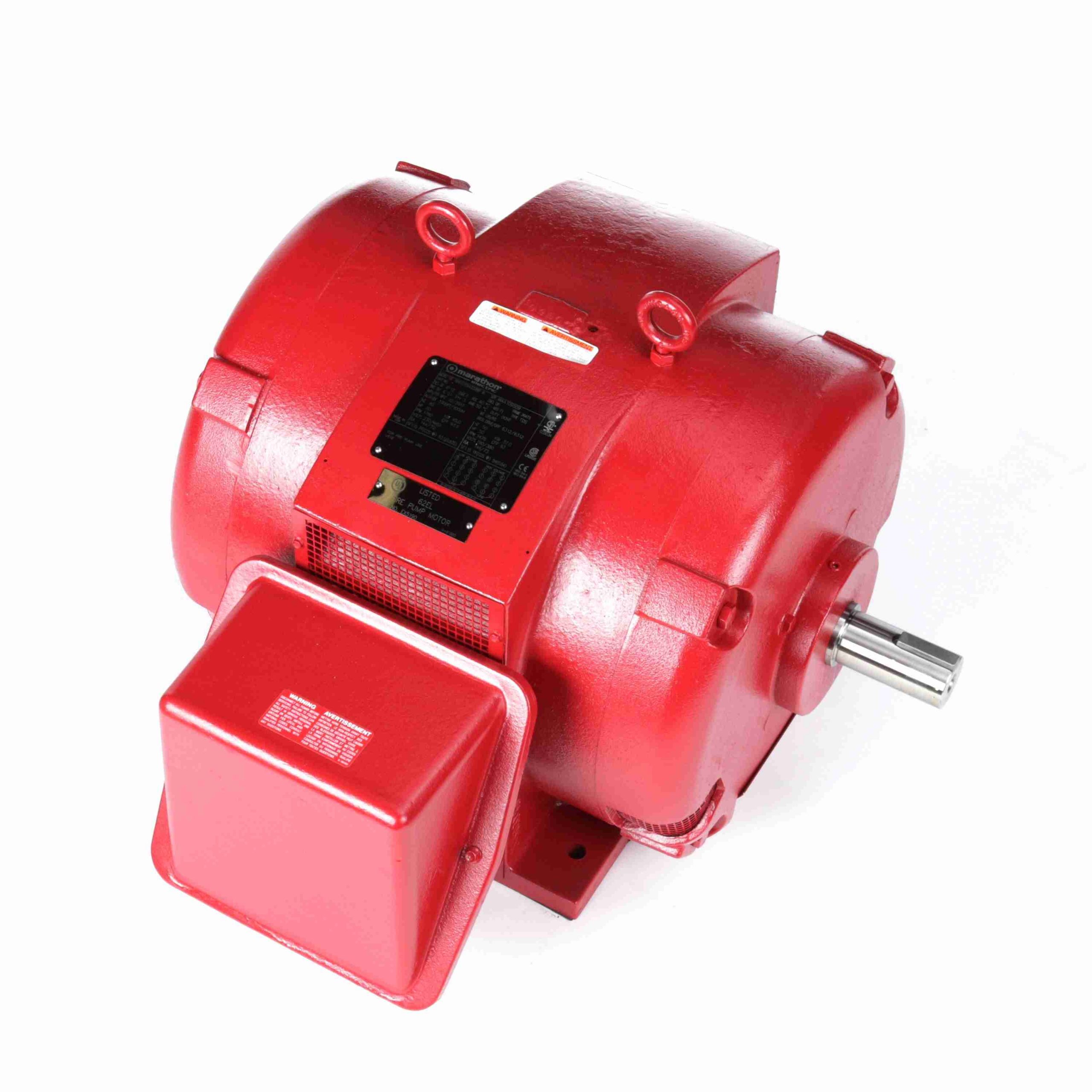

364TSTDS4332 – Marathon 60 HP Fire Pump Motor, 3 phase, 1800 RPM, 230/460 V, 364TS Frame, ODP – U518
364TSTDS4332 Marathon Fire Pump Motors
General Specifications
| UPC: |
722856036063 |
Weight: |
699 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
24.92 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
144.0/72.0 A |
Speed: |
1780 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93.6 % |
Power Factor: |
83.5 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
F |
| Frame: |
364TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
50 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
No |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Part Wdg Start Low Volt Only & Wye Start Delta Run |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.115 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
26.50 in |
| Frame Length: |
14.00 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
4 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
72.00 |
100.0 |
177.00 |
100.0 |
1,780 |
|
|
60.00 |
| No Load |
25.50 |
35.0 |
0.00 |
0.0 |
1,800 |
|
|
60.00 |
| Break-Down |
225.00 |
313.0 |
400.00 |
226.0 |
1,675 |
|
64.0 |
60.00 |
| 1/3 |
400.00 |
556.0 |
250.00 |
141.0 |
600 |
|
|
60.00 |
| Pull-Up |
375.00 |
521.0 |
275.00 |
155.0 |
900 |
|
|
60.00 |
| 2/3 |
300.00 |
417.0 |
325.00 |
184.0 |
1,200 |
|
|
60.00 |
| Locked-Rotor |
415.00 |
576.0 |
300.00 |
169.0 |
0 |
|
31.0 |
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
25.50 |
30.50 |
41.50 |
56.00 |
72.00 |
82.50 |
90.00 |
| Rated Output (KW) |
1.00 |
12.50 |
24.00 |
36.00 |
48.00 |
55.50 |
60.50 |
| Efficiency (%) |
0.0 |
90.2 |
93.0 |
93.6 |
93.6 |
93.0 |
92.4 |
| Power Factor (%) |
5.5 |
51.0 |
72.0 |
80.0 |
83.5 |
84.0 |
84.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,780 |
1,775 |
1,770 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
55.0 |
65.0 |
| Torque (ft-lbs) |
0.00 |
44.00 |
88.00 |
132.00 |
177.00 |
204.00 |
222.00 |
