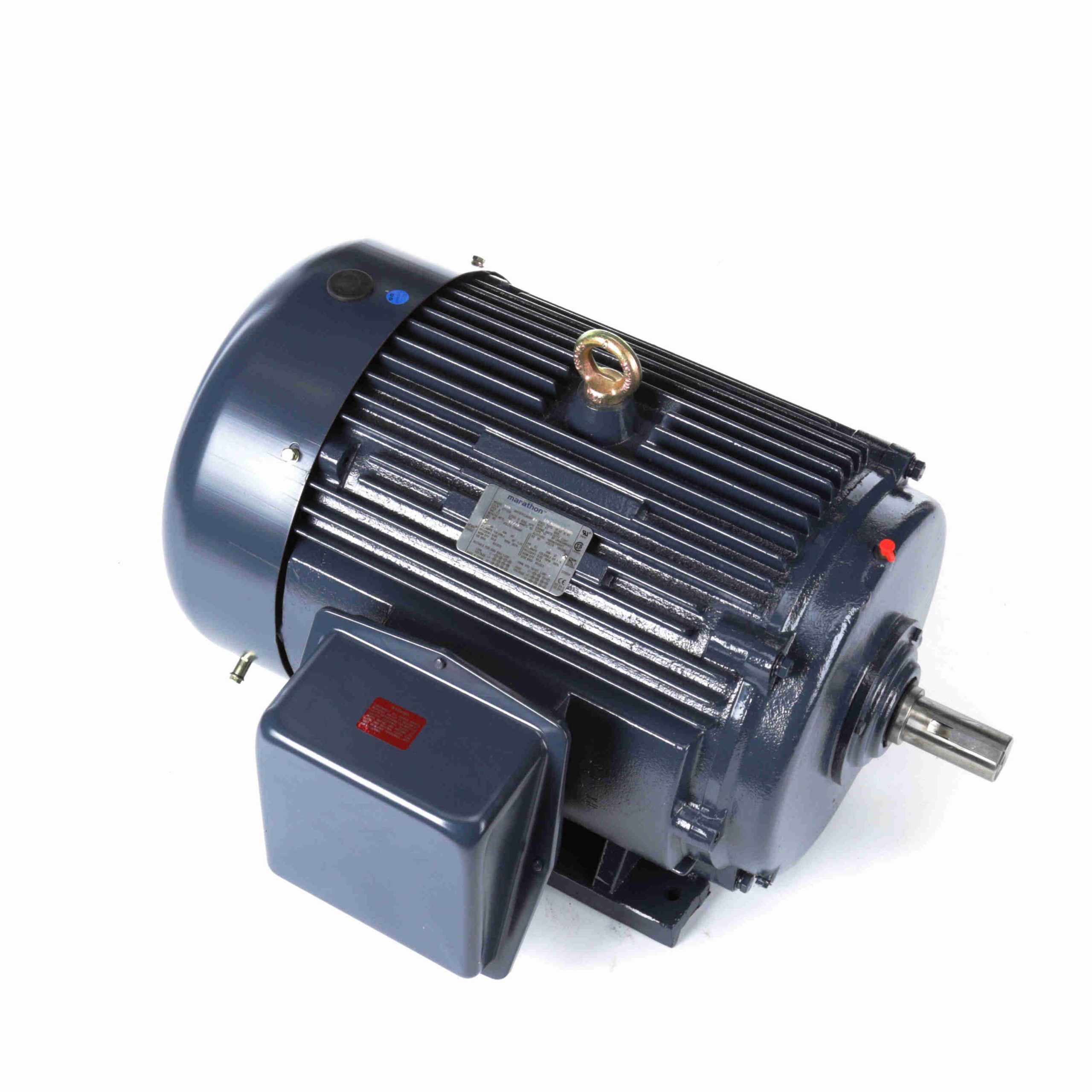

364TSTFCA6001 – Marathon 60 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 364TS Frame, TEFC – GT1039
364TSTFCA6001 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856002464 |
Weight: |
942 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
26.03 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
135.0/67.5 A |
Speed: |
3575 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93.6 % |
Power Factor: |
88.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
364TS |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.0677 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
34.57 in |
| Shaft Diameter: |
1.875 in |
Shaft Extension: |
3.75 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
375.00 |
555.0 |
175.00 |
198.0 |
2,400 |
|
|
60.00 |
| Pull-Up |
425.00 |
630.0 |
150.00 |
170.0 |
1,800 |
|
|
60.00 |
| No Load |
18.50 |
27.5 |
0.00 |
0.0 |
3,600 |
|
10.0 |
60.00 |
| 1/3 |
450.00 |
668.0 |
150.00 |
170.0 |
1,200 |
|
|
60.00 |
| Break-Down |
290.00 |
430.0 |
245.00 |
278.0 |
3,430 |
|
63.0 |
60.00 |
| Full Load |
67.50 |
100.0 |
88.00 |
100.0 |
3,575 |
|
88.5 |
60.00 |
| Locked-Rotor |
475.00 |
705.0 |
185.00 |
210.0 |
0 |
|
32.0 |
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
18.50 |
25.00 |
37.50 |
52.00 |
67.50 |
77.00 |
84.50 |
| Rated Output (KW) |
1.60 |
12.80 |
24.30 |
35.90 |
47.70 |
54.90 |
59.70 |
| Efficiency (%) |
0.0 |
87.5 |
91.7 |
93.6 |
93.6 |
93.6 |
93.6 |
| Power Factor (%) |
10.0 |
64.0 |
81.0 |
86.5 |
88.5 |
89.0 |
89.0 |
| Speed (RPM) |
3,600 |
3,595 |
3,588 |
3,582 |
3,575 |
3,570 |
3,565 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
55.0 |
75.0 |
90.0 |
| Torque (ft-lbs) |
0.00 |
22.00 |
44.00 |
66.00 |
88.00 |
102.00 |
110.00 |
