364TTDCB6086 – Marathon 40 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 364T Frame, ODP – GT0035

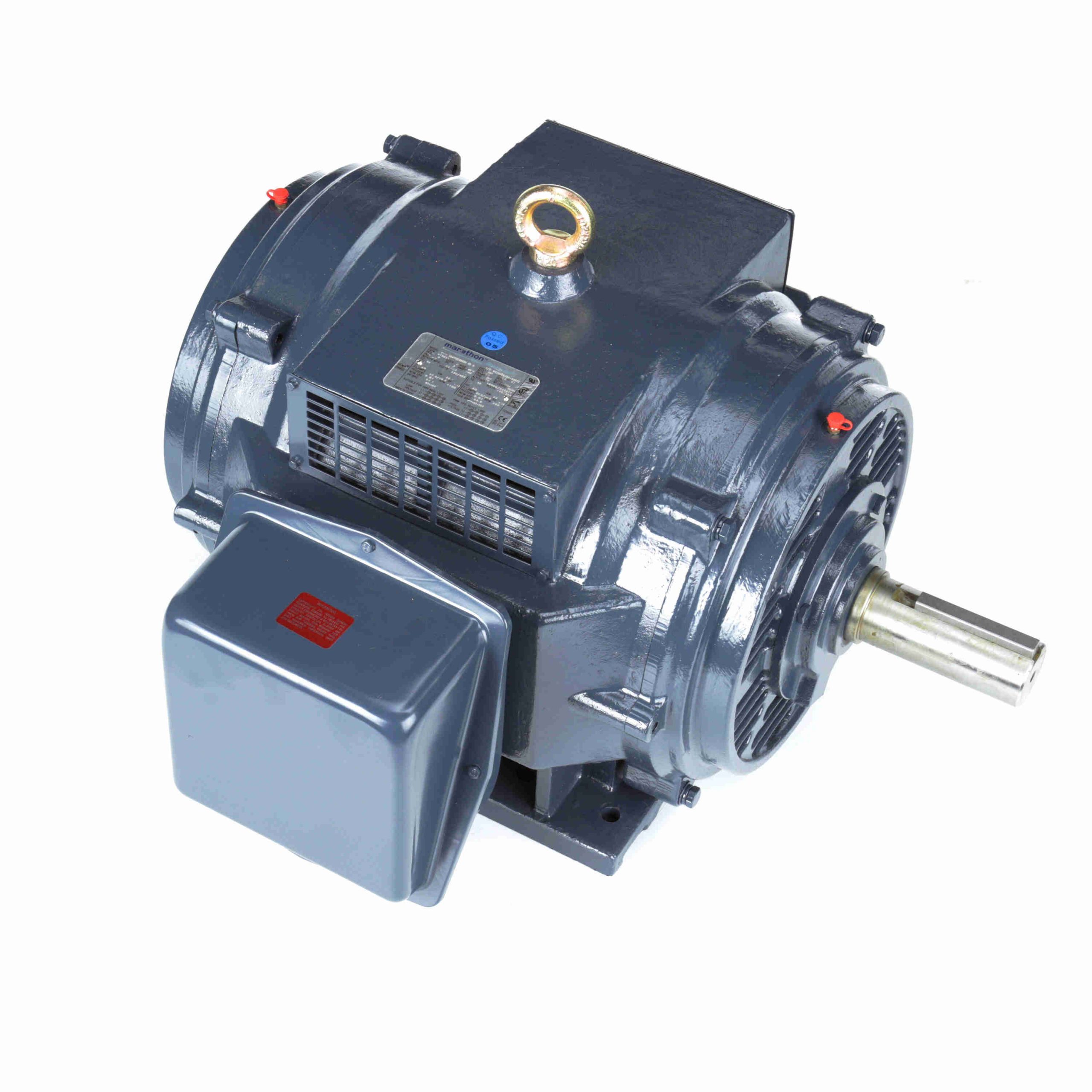

364TTDCB6086 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856000330 |
Weight: |
830 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
25.94 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
99.0/49.5 A |
Speed: |
1188 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
80 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
F |
| Frame: |
364T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6313 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
.182 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
31.69 in |
| Shaft Diameter: |
2.375 in |
Shaft Extension: |
5.87 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
49.50 |
100.0 |
177.00 |
100.0 |
1,188 |
|
80.0 |
40.00 |
| No Load |
20.00 |
41.0 |
0.00 |
0.0 |
1,200 |
|
5.0 |
40.00 |
| 1/3 |
260.00 |
540.0 |
285.00 |
161.0 |
300 |
|
|
40.00 |
| Pull-Up |
240.00 |
520.0 |
302.00 |
170.0 |
600 |
|
|
40.00 |
| Locked-Rotor |
275.00 |
555.0 |
350.00 |
195.0 |
0 |
|
37.0 |
40.00 |
| Break-Down |
170.00 |
330.0 |
450.00 |
254.0 |
1,135 |
|
66.0 |
40.00 |
| 2/3 |
210.00 |
455.0 |
325.00 |
352.0 |
900 |
|
|
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
20.00 |
23.00 |
30.00 |
39.50 |
49.50 |
56.00 |
61.50 |
| Rated Output (KW) |
1.00 |
8.40 |
16.00 |
23.80 |
31.80 |
36.50 |
40.00 |
| Efficiency (%) |
0.0 |
89.5 |
93.0 |
94.1 |
94.1 |
94.1 |
93.6 |
| Power Factor (%) |
5.0 |
45.0 |
66.5 |
76.0 |
80.0 |
81.0 |
81.5 |
| Speed (RPM) |
1,200 |
1,198 |
1,195 |
1,190 |
1,188 |
1,185 |
1,182 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
30.0 |
40.0 |
50.0 |
| Torque (ft-lbs) |
0.00 |
44.00 |
88.00 |
132.00 |
177.00 |
204.00 |
222.00 |
