364TTFCA6086 – Marathon 40 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 364T Frame, TEFC – GT1035

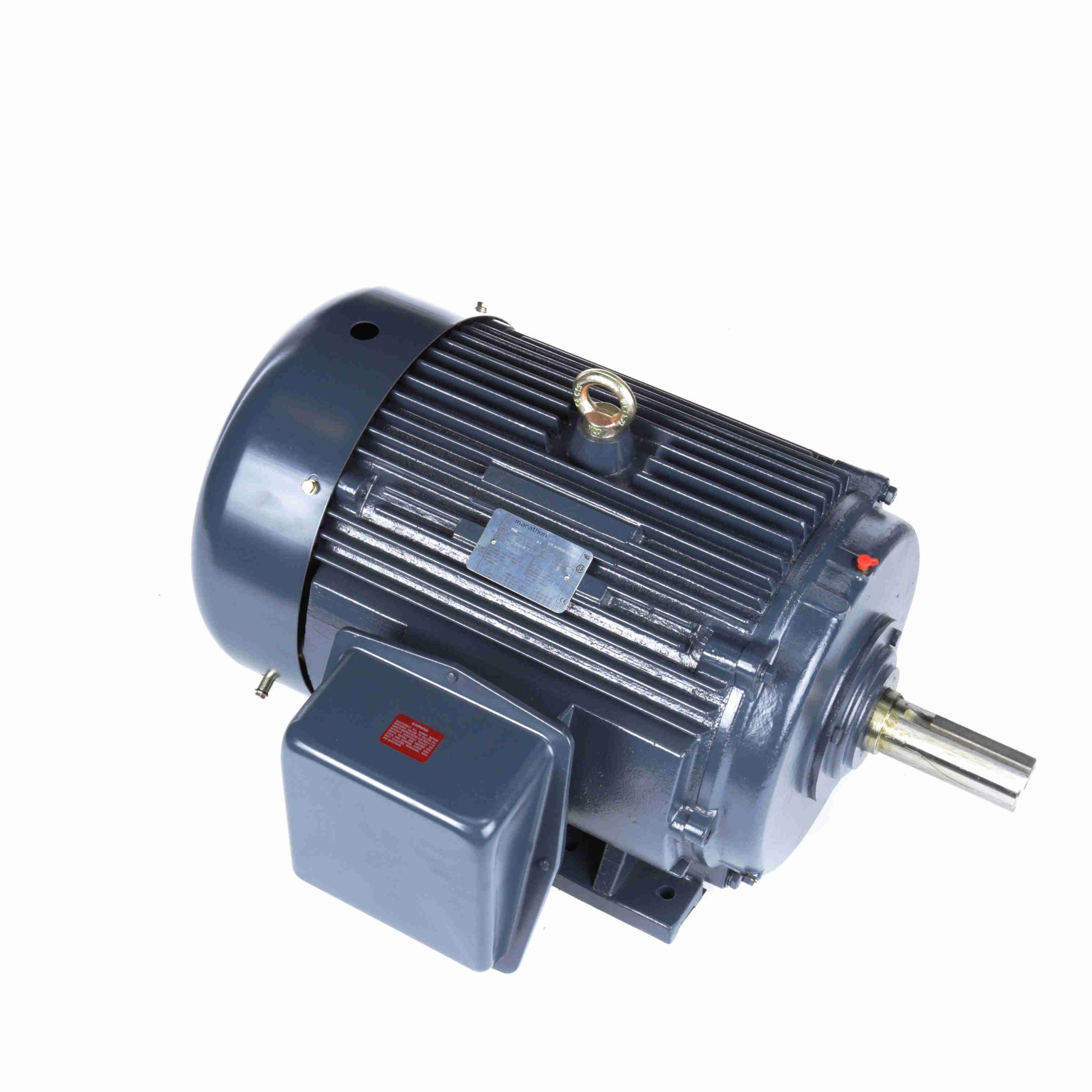

364TTFCA6086 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856002310 |
Weight: |
950 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
26.03 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
94.0/47.0 A |
Speed: |
1188 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
83 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
364T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6313 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
.1559 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
36.61 in |
| Shaft Diameter: |
2.375 in |
Shaft Extension: |
5.87 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
250.00 |
532.0 |
282.00 |
159.0 |
600 |
|
|
40.00 |
| Break-Down |
182.00 |
420.0 |
475.00 |
268.0 |
1,130 |
|
65.0 |
40.00 |
| 2/3 |
222.00 |
472.0 |
329.00 |
185.0 |
800 |
|
|
40.00 |
| Full Load |
47.00 |
100.0 |
177.00 |
100.0 |
1,188 |
|
83.0 |
40.00 |
| No Load |
18.00 |
37.0 |
0.00 |
0.0 |
1,200 |
|
6.0 |
40.00 |
| Locked-Rotor |
278.00 |
591.0 |
315.00 |
180.0 |
0 |
|
33.0 |
40.00 |
| 1/3 |
250.00 |
530.0 |
266.00 |
150.0 |
400 |
|
|
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
18.00 |
21.50 |
29.00 |
38.00 |
47.00 |
54.00 |
60.00 |
| Rated Output (KW) |
0.90 |
8.20 |
16.00 |
23.60 |
31.50 |
36.50 |
39.50 |
| Efficiency (%) |
0.0 |
90.2 |
94.1 |
94.5 |
94.1 |
94.1 |
93.6 |
| Power Factor (%) |
5.0 |
48.0 |
69.0 |
78.0 |
83.0 |
83.5 |
84.0 |
| Speed (RPM) |
1,200 |
1,198 |
1,195 |
1,192 |
1,188 |
1,185 |
1,182 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
48.0 |
65.0 |
80.0 |
| Torque (ft-lbs) |
0.00 |
44.00 |
88.00 |
132.00 |
177.00 |
204.00 |
222.00 |
