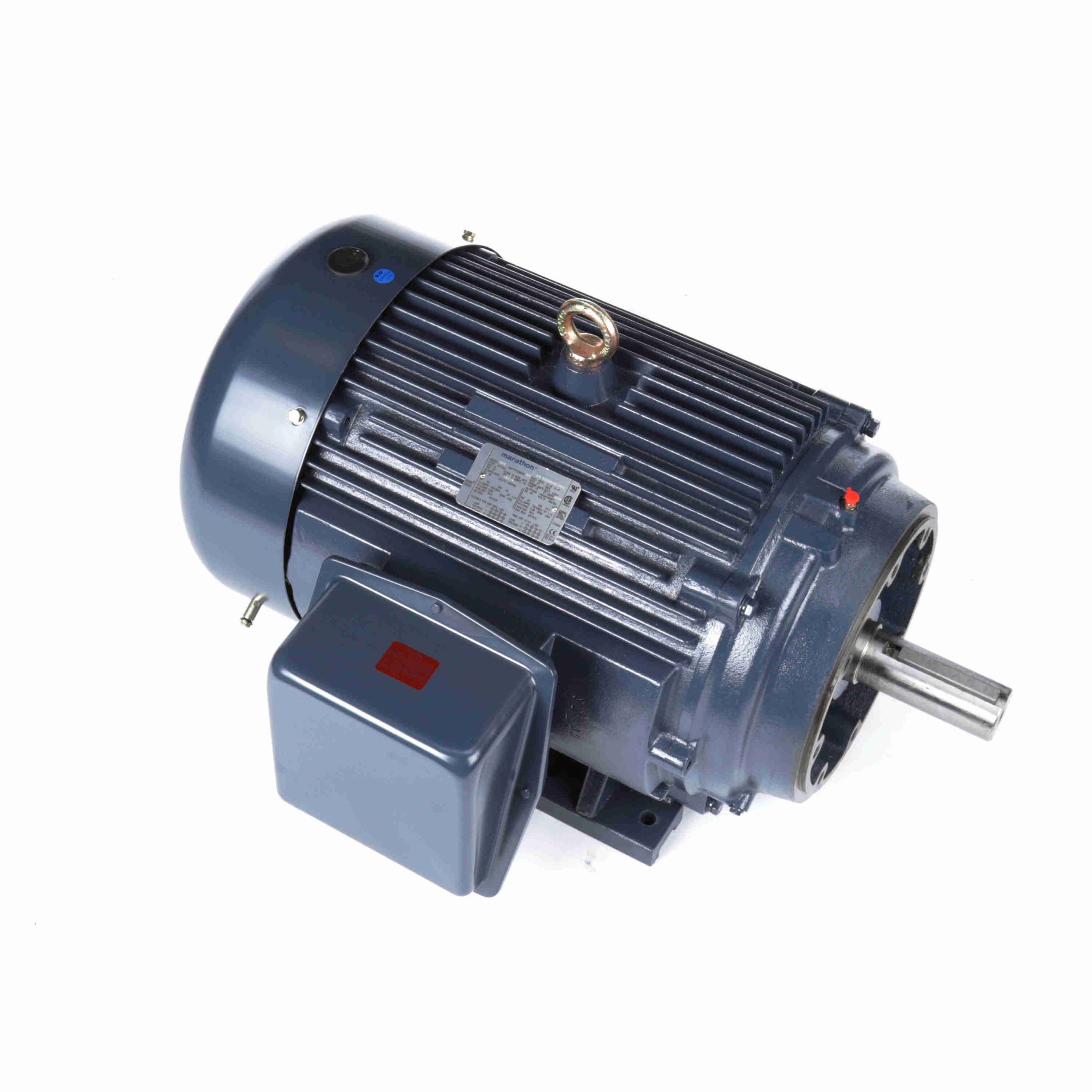

364TTFCD6038 – Marathon 60 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 364TC Frame, TEFC – GT1240A
364TTFCD6038 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856063922 |
Weight: |
952 LB |
| Packaged Length: |
35 IN |
Packaged Width: |
30 IN |
| Packaged Height: |
24 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
138.0/69.0 A |
Speed: |
1782 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95 % |
Power Factor: |
85.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
364TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6313 |
Opp Drive End Bearing Size: |
6213 |
| UL: |
Listed |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
| Hazardous Location: |
DIVISION 2 T2B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
.103 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
33.32 in |
| Frame Length: |
15.74 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
5.88 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
375.00 |
540.0 |
290.00 |
164.0 |
600 |
|
|
60.00 |
| Break-Down |
238.00 |
345.0 |
451.00 |
255.0 |
1,715 |
|
65.0 |
60.00 |
| Full Load |
69.00 |
100.0 |
177.00 |
100.0 |
1,782 |
|
85.5 |
60.00 |
| No Load |
22.50 |
33.0 |
0.00 |
0.0 |
1,800 |
|
4.0 |
60.00 |
| Pull-Up |
350.00 |
505.0 |
297.00 |
168.0 |
900 |
|
|
60.00 |
| 2/3 |
315.00 |
455.0 |
367.00 |
207.0 |
1,200 |
|
|
60.00 |
| Locked-Rotor |
435.00 |
630.0 |
354.00 |
200.0 |
0 |
|
33.0 |
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
22.50 |
27.80 |
39.00 |
53.20 |
69.00 |
79.50 |
86.50 |
| Rated Output (KW) |
0.80 |
12.00 |
23.40 |
35.00 |
46.90 |
54.40 |
59.10 |
| Efficiency (%) |
0.0 |
93.0 |
95.0 |
95.4 |
95.0 |
95.0 |
94.5 |
| Power Factor (%) |
4.0 |
54.5 |
75.5 |
83.0 |
85.5 |
86.0 |
86.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,782 |
1,780 |
1,775 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
55.0 |
75.0 |
90.0 |
| Torque (ft-lbs) |
0.00 |
44.00 |
88.00 |
132.00 |
177.00 |
204.00 |
222.00 |
