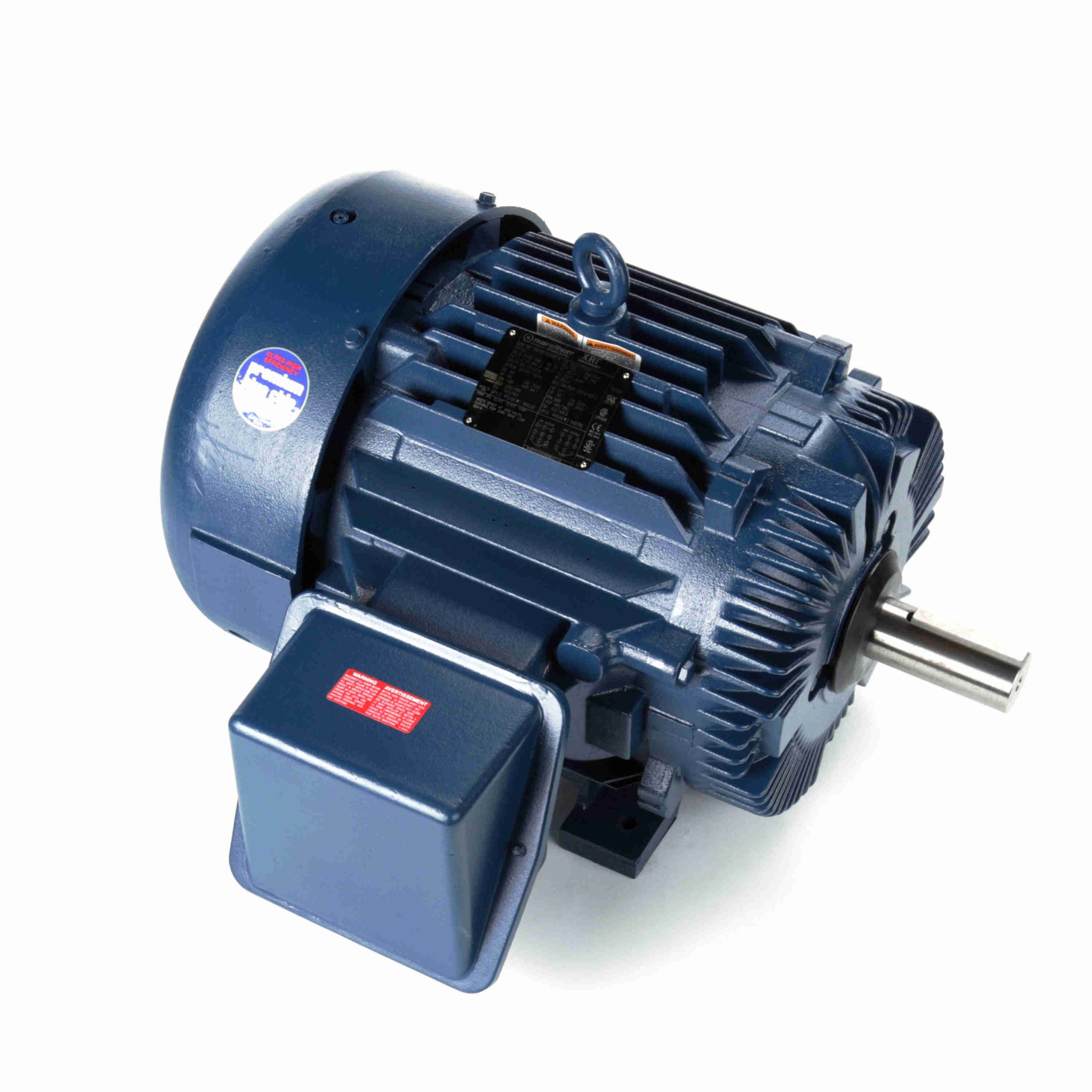

364TTFS16083 – Marathon 40 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 364T Frame, TEFC – E241A

364TTFS16083 – Marathon 40 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 364T Frame, TEFC – E241A

364TTFS16083 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • C-Face Footed models are rated 60/50 Hz, same HP
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • F1 conduit box on Rigid Base, F3 on C-Face Footed (Rigid Base) motors
  • Motor will accept a C-face kit
  • Shaft slinger, Class F insulation

Marathon Motors
Regal Beloit

Description

364TTFS16083 – Marathon 40 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 364T Frame, TEFC – E241A

364TTFS16083 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856017840 Weight: 878 LB
Packaged Length: 37.88 IN Packaged Width: 31.88 IN
Packaged Height: 26.92 IN

Nameplate Specifications

Output HP: 40 Hp Output KW: 30.0 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 100.0/50.0 A Speed: 1185 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 94.1 % Power Factor: 80
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 364T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6314 Opp Drive End Bearing Size: 6312
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Resistance Main: .16 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 31.52 in
Frame Length: 13.50 in Shaft Diameter: 2.375 in
Shaft Extension: 6.13 in Assembly/Box Mounting: F1/F2 Capable

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 50.00 100.0 177.00 100.0 1,185 40.00
Locked-Rotor 290.00 580.0 350.00 198.0 0 32.0 40.00
2/3 225.00 450.0 375.00 212.0 800 40.00
Break-Down 175.00 350.0 450.00 254.0 1,100 65.0 40.00
No Load 21.50 43.0 0.00 0.0 1,200 40.00
1/3 275.00 550.0 300.00 169.0 400 40.00
Pull-Up 250.00 500.0 325.00 184.0 600 40.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 21.50 24.50 31.00 40.00 50.00 56.50 61.00
Rated Output (KW) 0.75 8.50 16.00 24.00 32.00 36.80 40.00
Efficiency (%) 0.0 90.2 93.6 94.1 94.1 93.6 93.0
Power Factor (%) 4.0 42.5 64.0 75.0 80.0 81.5 82.0
Speed (RPM) 1,200 1,195 1,192 1,188 1,185 1,180 1,178
Temp. Rise @ FL 0.0 0.0 0.0 0.0 65.0 85.0 0.0
Torque (ft-lbs) 0.00 44.00 88.00 133.00 177.00 205.00 223.00
