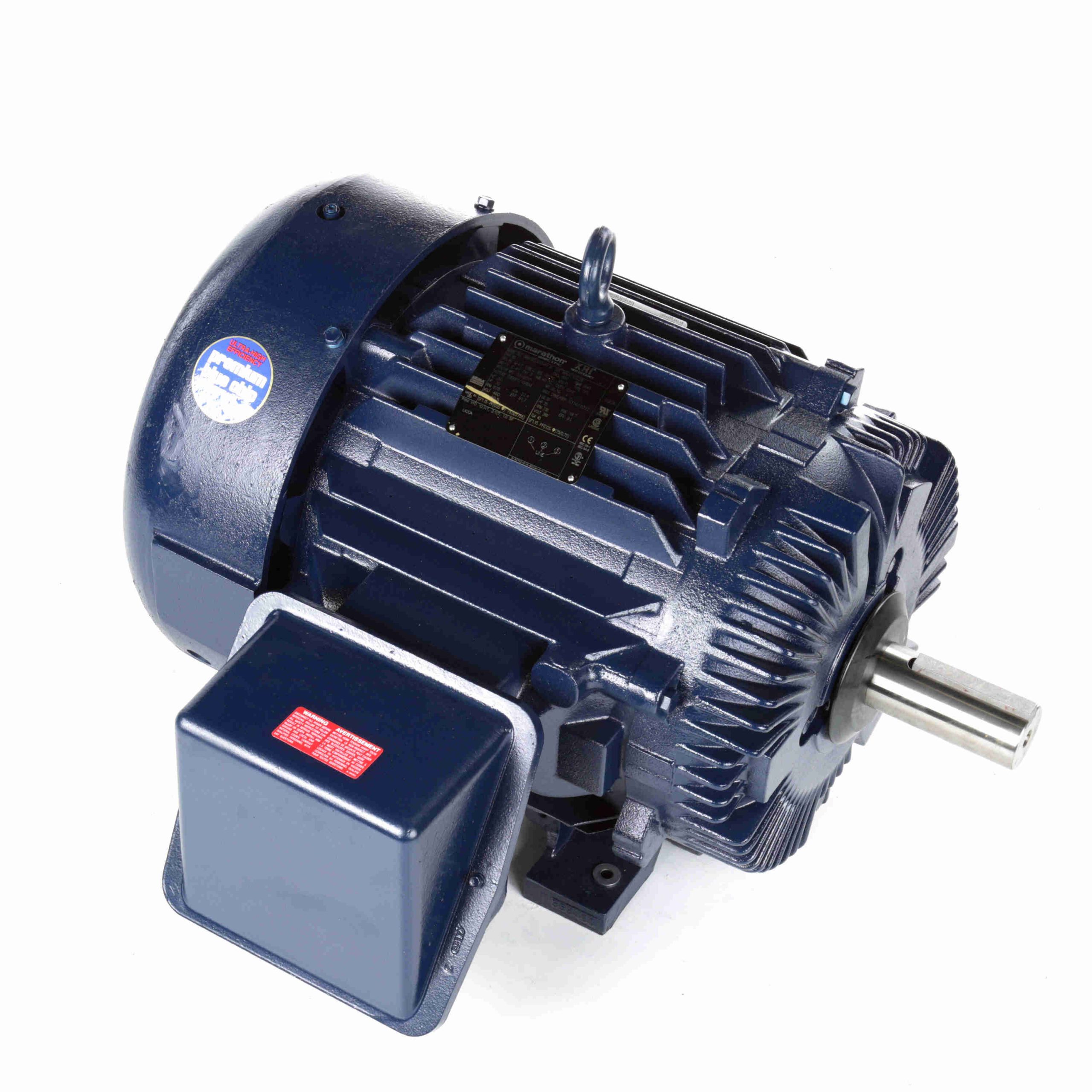

364TTFS16104 – Marathon 30 HP General Purpose Motor, 3 phase, 900 RPM, 460 V, 364T Frame, TEFC – L420A
364TTFS16104 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856052186 |
Weight: |
878 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
26.92 IN |
Nameplate Specifications
| Output HP: |
30 Hp |
Output KW: |
22.4 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
40.5 A |
Speed: |
878 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91.7 % |
Power Factor: |
75.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
364T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
8 |
Rotation: |
Reversible |
| Resistance Main: |
.265 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
31.51 in |
| Frame Length: |
13.50 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
5.88 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
210.00 |
519.0 |
240.00 |
133.0 |
300 |
|
|
30.00 |
| Pull-Up |
200.00 |
494.0 |
240.00 |
133.0 |
500 |
|
|
30.00 |
| Full Load |
40.50 |
100.0 |
180.00 |
100.0 |
878 |
|
|
30.00 |
| Locked-Rotor |
215.00 |
534.0 |
270.00 |
150.0 |
0 |
|
30.0 |
30.00 |
| 2/3 |
180.00 |
444.0 |
250.00 |
139.0 |
750 |
|
|
30.00 |
| Break-Down |
140.00 |
346.0 |
450.00 |
250.0 |
775 |
|
64.0 |
30.00 |
| No Load |
21.00 |
52.0 |
0.00 |
0.0 |
900 |
|
|
30.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
21.00 |
23.00 |
27.50 |
33.50 |
40.50 |
46.00 |
48.50 |
| Rated Output (KW) |
1.00 |
6.50 |
12.50 |
18.20 |
24.50 |
28.50 |
30.50 |
| Efficiency (%) |
0.0 |
86.5 |
91.0 |
91.7 |
91.7 |
91.0 |
90.2 |
| Power Factor (%) |
4.5 |
36.0 |
56.0 |
68.5 |
75.5 |
78.0 |
79.0 |
| Speed (RPM) |
900 |
895 |
890 |
885 |
878 |
875 |
872 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
65.0 |
85.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
44.00 |
88.60 |
134.00 |
180.00 |
207.00 |
222.00 |
