Description

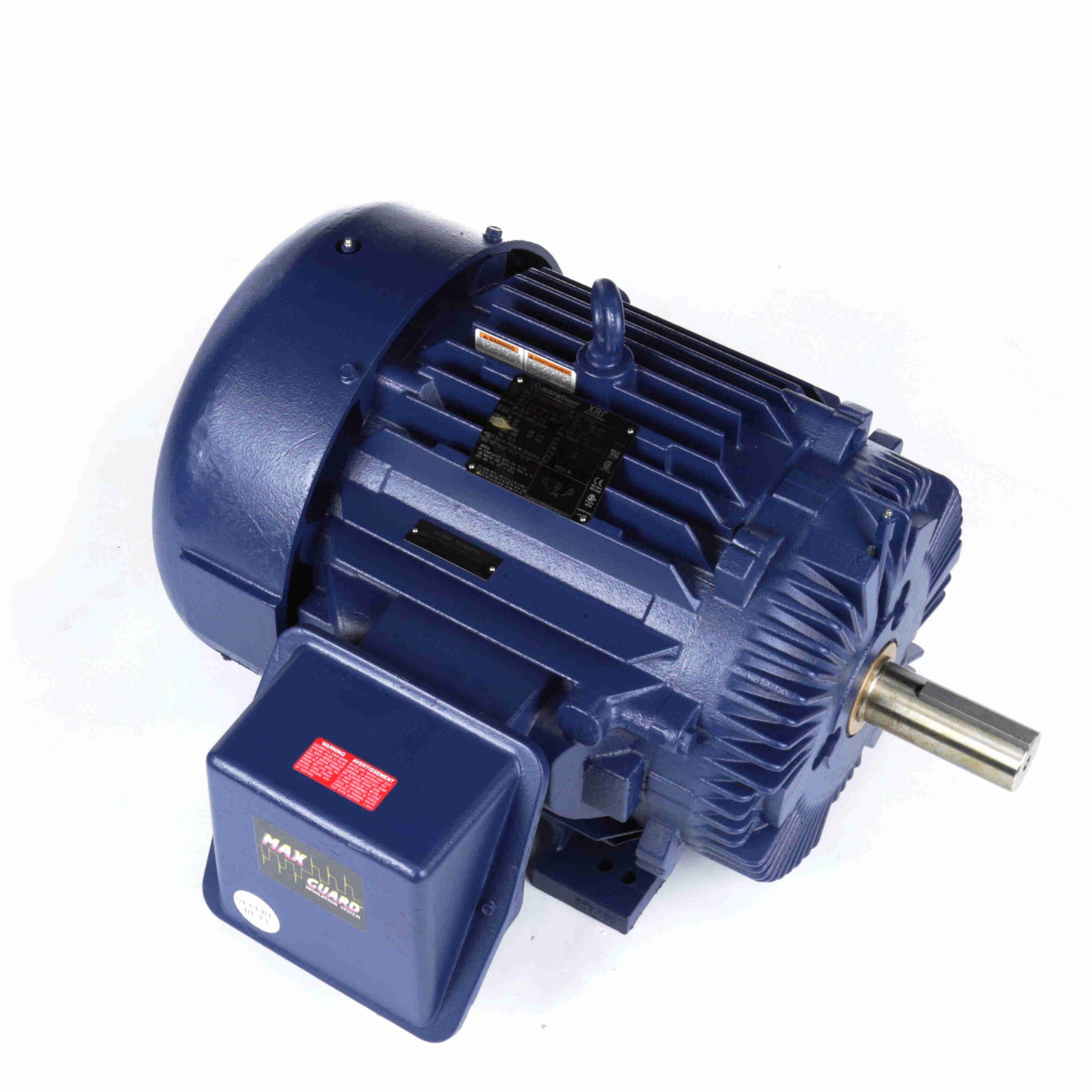

365THFS19086 – Marathon 50 HP Severe Duty Motor, 3 phase, 1200 RPM, 460 V, 365T Frame, TEFC – W582A
365THFS19086 Marathon Other Severe Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856021564 |
Weight: |
942 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
26.92 IN |
Nameplate Specifications
| Output HP: |
50 Hp |
Output KW: |
37.0 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
61.5 A |
Speed: |
1182 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.5 % |
Power Factor: |
80.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
365T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
56 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
.12 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
32.51 in |
| Frame Length: |
14.50 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
6.12 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
275.00 |
447.0 |
475.00 |
214.0 |
800 |
|
|
50.00 |
| Break-Down |
225.00 |
366.0 |
625.00 |
282.0 |
1,125 |
|
67.0 |
50.00 |
| 1/3 |
350.00 |
569.0 |
400.00 |
180.0 |
400 |
|
|
50.00 |
| Pull-Up |
325.00 |
528.0 |
425.00 |
191.0 |
600 |
|
|
50.00 |
| Full Load |
61.50 |
100.0 |
222.00 |
100.0 |
1,182 |
|
|
50.00 |
| No Load |
25.00 |
41.0 |
0.00 |
0.0 |
1,200 |
|
|
50.00 |
| Locked-Rotor |
362.00 |
589.0 |
445.00 |
200.0 |
0 |
|
34.0 |
50.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
25.00 |
28.50 |
37.50 |
49.00 |
61.50 |
70.00 |
76.00 |
| Rated Output (KW) |
1.00 |
10.50 |
20.00 |
29.50 |
39.50 |
46.00 |
50.00 |
| Efficiency (%) |
0.0 |
91.0 |
94.1 |
94.5 |
94.5 |
94.1 |
93.6 |
| Power Factor (%) |
4.0 |
45.0 |
66.0 |
76.0 |
80.5 |
81.5 |
82.0 |
| Speed (RPM) |
1,200 |
1,195 |
1,192 |
1,188 |
1,182 |
1,178 |
1,175 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
70.0 |
90.0 |
110.0 |
| Torque (ft-lbs) |
0.00 |
55.00 |
110.00 |
166.00 |
222.00 |
256.00 |
280.00 |
