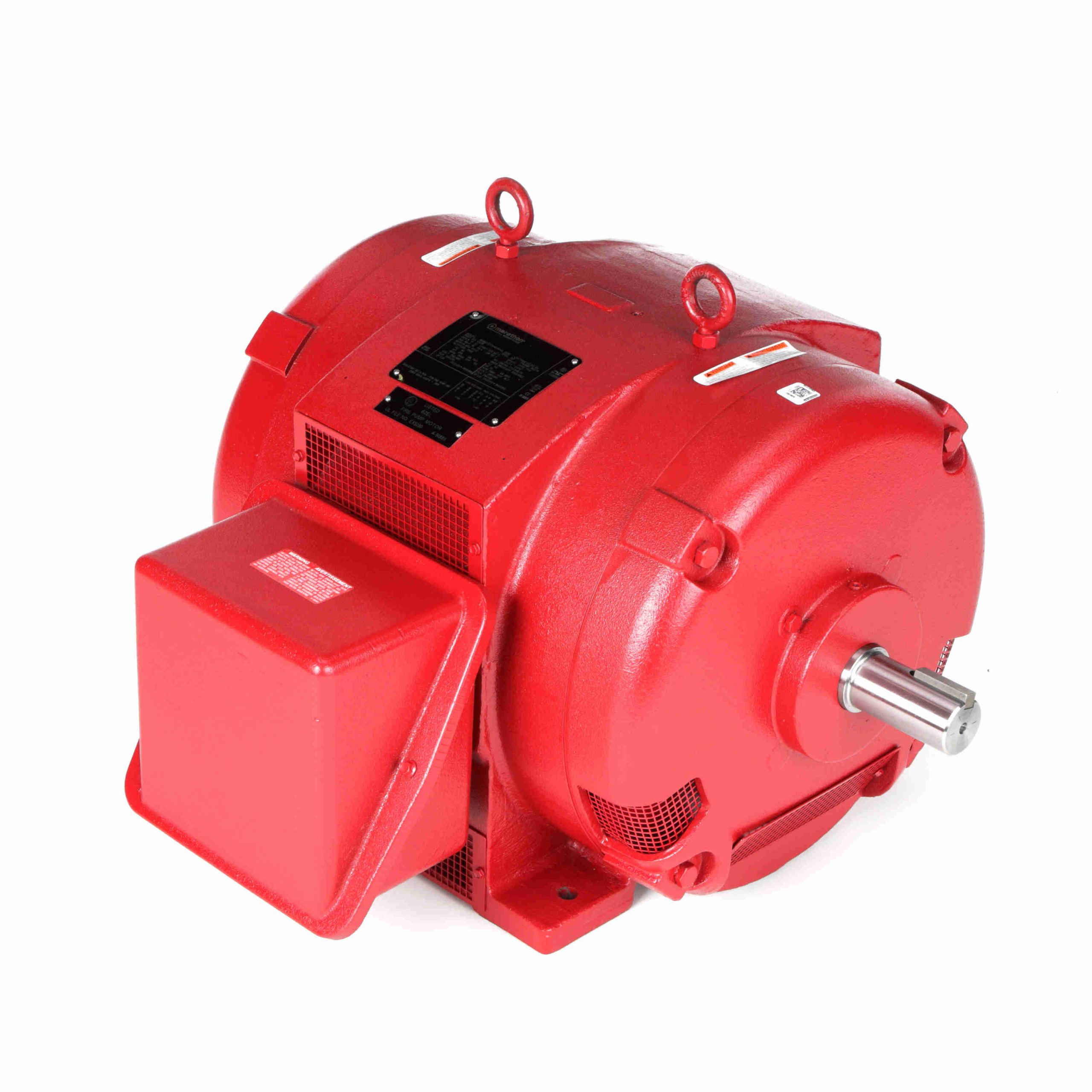

365TSTDS4025 – Marathon 100 HP Fire Pump Motor, 3 phase, 3600 RPM, 230/460 V, 365TS Frame, ODP – U526
365TSTDS4025 Marathon Fire Pump Motors
General Specifications
| UPC: |
722856036155 |
Weight: |
775 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
24.92 IN |
Nameplate Specifications
| Output HP: |
100 Hp |
Output KW: |
75.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
240.0/120.0 A |
Speed: |
3550 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
93 % |
Power Factor: |
83.5 |
| Duty: |
Continous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
F |
| Frame: |
365TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
50 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
No |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.064 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
27.50 in |
| Frame Length: |
15.00 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
4 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
525.00 |
438.0 |
185.00 |
125.0 |
1,800 |
|
|
100.00 |
| 2/3 |
475.00 |
396.0 |
210.00 |
142.0 |
2,600 |
|
|
100.00 |
| Full Load |
120.00 |
100.0 |
148.00 |
100.0 |
3,550 |
|
|
100.00 |
| 1/3 |
575.00 |
479.0 |
180.00 |
122.0 |
1,200 |
|
|
100.00 |
| No Load |
34.00 |
28.0 |
0.00 |
0.0 |
3,600 |
|
|
100.00 |
| Break-Down |
375.00 |
313.0 |
315.00 |
213.0 |
3,425 |
|
65.0 |
100.00 |
| Locked-Rotor |
610.00 |
508.0 |
215.00 |
145.0 |
0 |
|
32.0 |
100.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
34.00 |
45.50 |
65.50 |
91.00 |
120.00 |
138.00 |
150.00 |
| Rated Output (KW) |
2.50 |
21.00 |
40.00 |
60.00 |
80.50 |
92.50 |
102.00 |
| Efficiency (%) |
0.0 |
90.2 |
92.4 |
93.0 |
93.0 |
92.4 |
91.7 |
| Power Factor (%) |
8.0 |
57.0 |
77.0 |
82.0 |
83.5 |
84.0 |
84.5 |
| Speed (RPM) |
3,600 |
3,588 |
3,575 |
3,565 |
3,550 |
3,540 |
3,530 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
55.0 |
75.0 |
90.0 |
| Torque (ft-lbs) |
0.00 |
36.50 |
73.50 |
110.00 |
148.00 |
170.00 |
185.00 |
