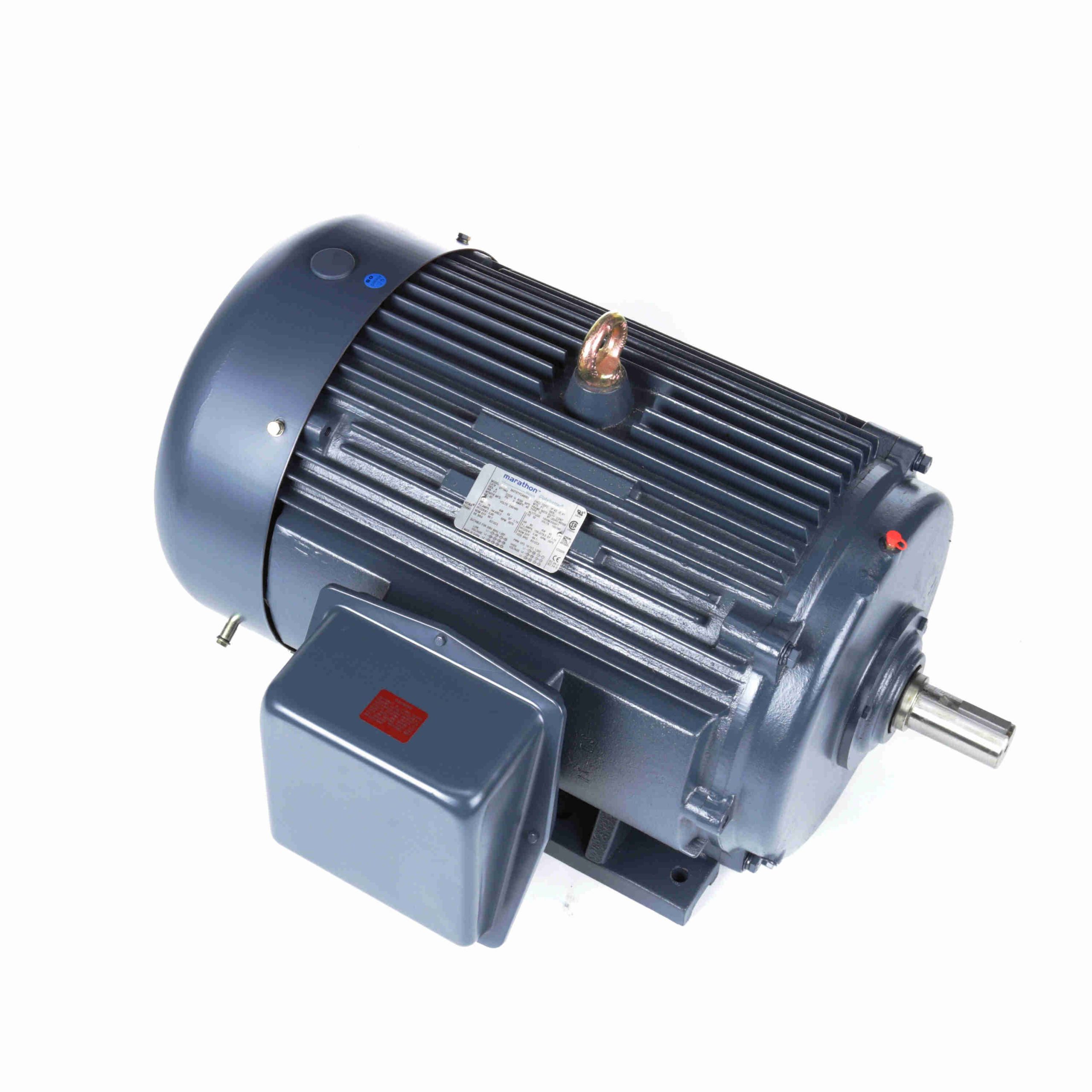

365TSTFCA6001 – Marathon 75 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 365TS Frame, TEFC – GT1042
365TSTFCA6001 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856002341 |
Weight: |
0 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
26.03 IN |
Nameplate Specifications
| Output HP: |
75 Hp |
Output KW: |
56.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
169.0/84.5 A |
Speed: |
3568 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
88 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
365TS |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Wye Start Delta Run Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.051 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
36.34 in |
| Shaft Diameter: |
1.875 in |
Shaft Extension: |
3.75 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
24.30 |
29.0 |
0.00 |
0.0 |
3,600 |
|
7.0 |
75.00 |
| Break-Down |
322.00 |
380.0 |
280.00 |
255.0 |
3,450 |
|
67.0 |
75.00 |
| 1/3 |
525.00 |
618.0 |
162.00 |
147.0 |
1,200 |
|
|
75.00 |
| Locked-Rotor |
593.00 |
650.0 |
190.00 |
173.0 |
0 |
|
28.5 |
75.00 |
| Full Load |
84.50 |
100.0 |
110.00 |
100.0 |
3,568 |
|
88.0 |
75.00 |
| Pull-Up |
495.00 |
586.0 |
162.00 |
147.0 |
1,800 |
|
|
75.00 |
| 2/3 |
465.00 |
550.0 |
171.00 |
155.0 |
2,400 |
|
|
75.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
24.00 |
31.50 |
46.50 |
64.00 |
82.00 |
95.00 |
105.00 |
| Rated Output (KW) |
2.00 |
15.60 |
30.10 |
44.60 |
59.50 |
68.50 |
75.00 |
| Efficiency (%) |
0.0 |
89.5 |
93.0 |
94.1 |
94.1 |
94.1 |
93.6 |
| Power Factor (%) |
7.5 |
62.5 |
81.5 |
87.5 |
90.0 |
90.5 |
90.5 |
| Speed (RPM) |
3,600 |
3,598 |
3,591 |
3,583 |
3,575 |
3,570 |
3,560 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
70.0 |
90.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
27.40 |
54.80 |
82.40 |
110.00 |
127.00 |
138.00 |
