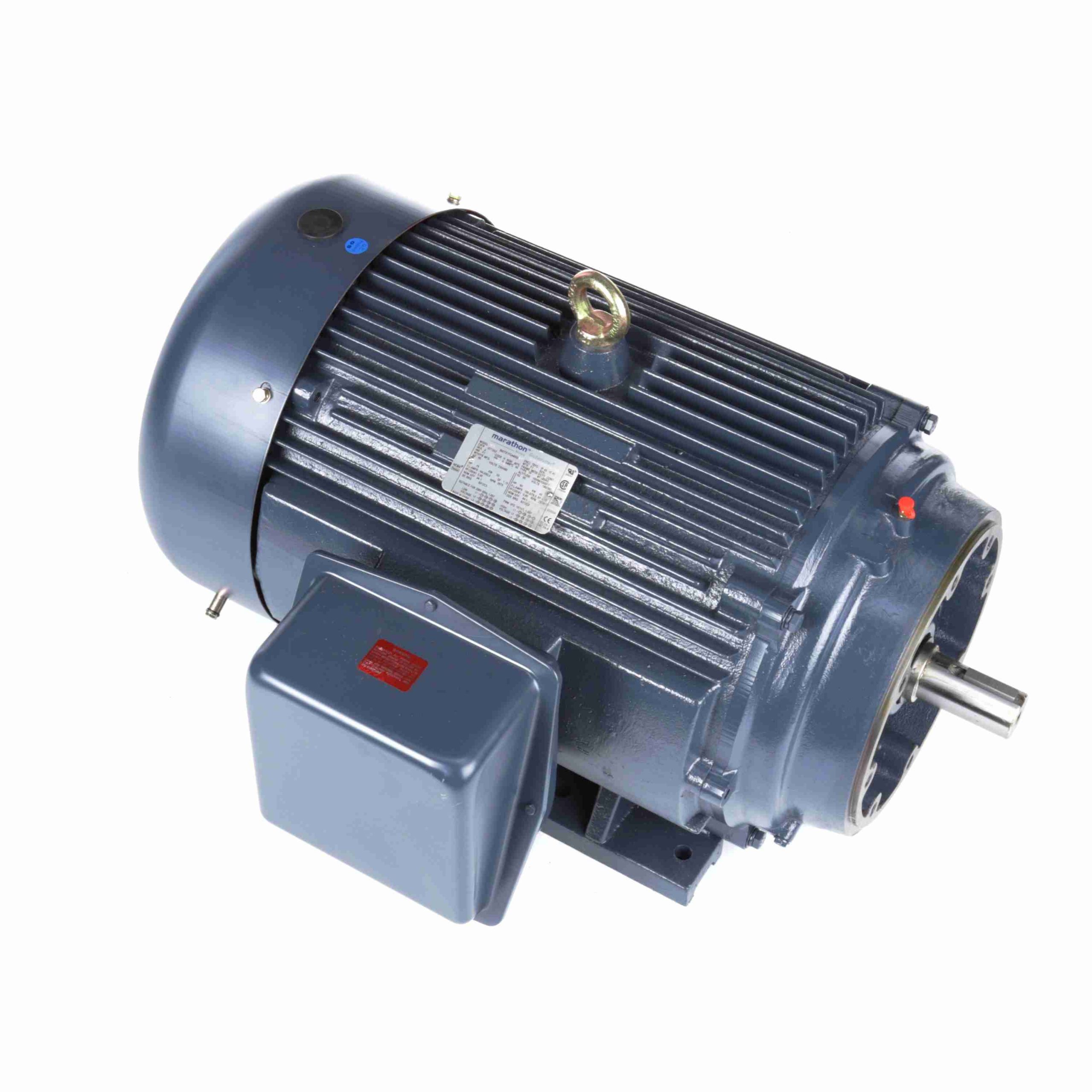

365TSTFCD6003 – Marathon 75 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 365TSC Frame, TEFC – GT1242A

365TSTFCD6003 – Marathon 75 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 365TSC Frame, TEFC – GT1242A

365TSTFCD6003 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.
  • 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting

Marathon Motors
Regal Beloit

Original price was: $17,002.00.Current price is: $7,748.70.

Description

365TSTFCD6003 – Marathon 75 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 365TSC Frame, TEFC – GT1242A

365TSTFCD6003 Marathon Three Phase TEFC Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856063311 Weight: 945 LB
Packaged Length: 35 IN Packaged Width: 30 IN
Packaged Height: 24 IN

Nameplate Specifications

Output HP: 75 Hp Output KW: 56.0 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 168.0/84.0 A Speed: 3570 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 94.1 % Power Factor: 89
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 365TS Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6313 Opp Drive End Bearing Size: 6213
UL: Listed CSA: Y
CE: Y IP Code: 55
Hazardous Location: DIVISION 2 T2B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Selective Clockwise
Resistance Main: .077 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: TS Overall Length: 32.17 in
Frame Length: 16.73 in Shaft Diameter: 1.875 in
Shaft Extension: 3.75 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 432.00 510.0 153.00 140.0 1,800 75.00
Locked-Rotor 542.00 640.0 204.00 185.0 0 29.0 75.00
1/3 472.00 555.0 150.00 135.0 1,200 75.00
No Load 25.00 30.0 0.00 0.0 3,600 8.0 75.00
Break-Down 315.00 375.0 308.00 280.0 3,445 68.0 75.00
2/3 395.00 465.0 190.00 175.0 2,400 75.00
Full Load 84.00 100.0 110.00 100.0 3,570 89.0 75.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 25.00 32.00 47.00 64.50 84.00 96.50 105.00
Rated Output (KW) 1.90 15.60 30.10 44.60 59.50 68.50 75.00
Efficiency (%) 0.0 89.5 93.0 94.1 94.1 93.6 93.6
Power Factor (%) 8.0 61.0 80.0 86.5 89.0 89.5 89.5
Speed (RPM) 3,600 3,592 3,584 3,576 3,570 3,562 3,558
Temp. Rise @ FL 0.0 0.0 0.0 0.0 70.0 90.0 105.0
Torque (ft-lbs) 0.00 27.40 54.80 82.40 110.00 127.00 138.00
