365TSTGS16503 – Marathon 75 HP Explosion Proof Motor, 3 phase, 3600 RPM, 230/460 V, 365TS Frame, EPFC – E575

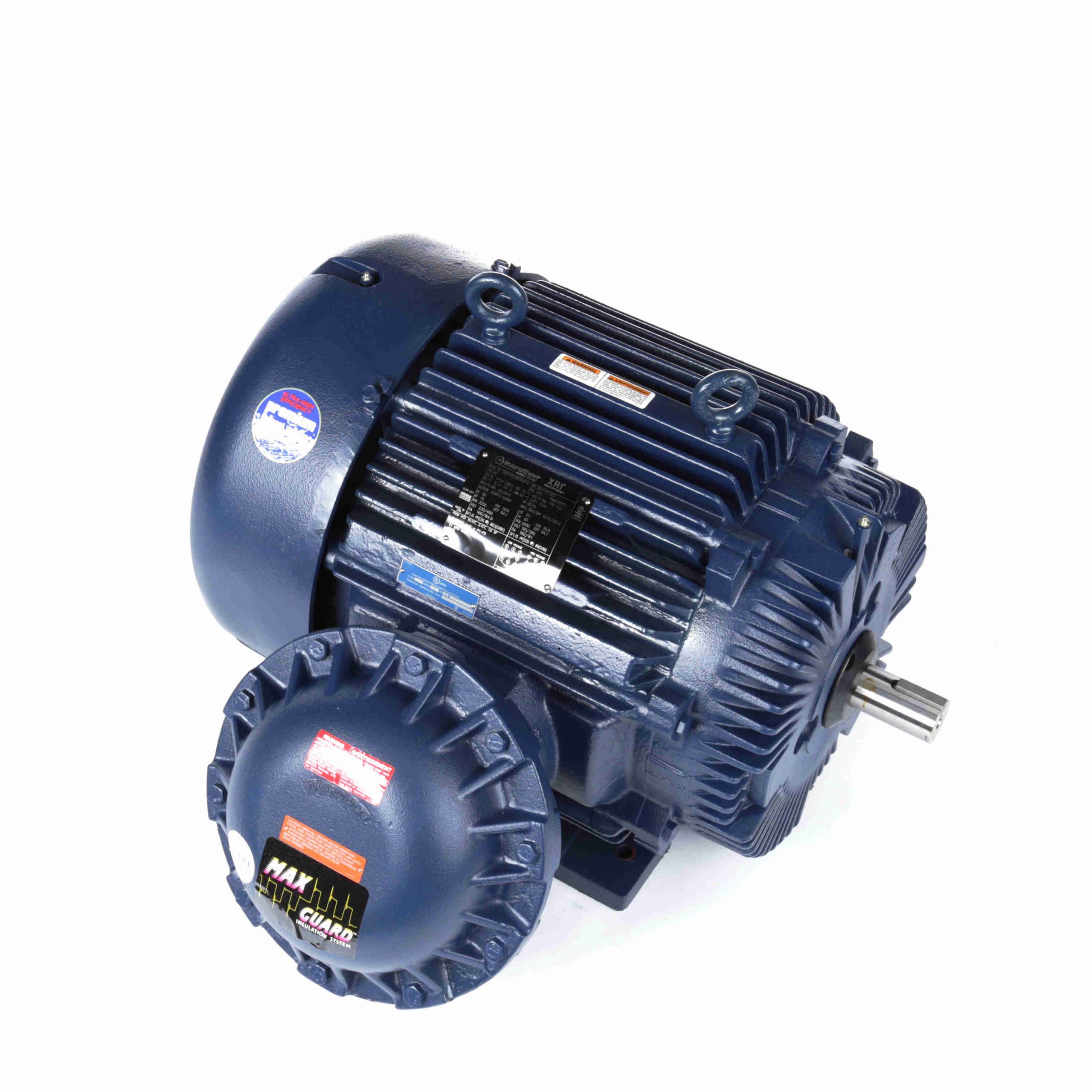

365TSTGS16503 Marathon Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856023926 |
Weight: |
0 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
27.01 IN |
Nameplate Specifications
| Output HP: |
75 Hp |
Output KW: |
56.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
169.0/84.5 A |
Speed: |
3555 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
88.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
365TS |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6312 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
UL Listed And CSA Certified |
CSA: |
Y |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.07 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
30.38 in |
| Frame Length: |
14.50 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
4 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
515.00 |
609.0 |
153.00 |
138.0 |
1,200 |
|
|
75.00 |
| No Load |
23.00 |
27.0 |
0.00 |
0.0 |
3,600 |
|
|
75.00 |
| Break-Down |
335.00 |
396.0 |
320.00 |
288.0 |
3,350 |
|
70.0 |
75.00 |
| Locked-Rotor |
542.00 |
641.0 |
180.00 |
162.0 |
0 |
|
31.5 |
75.00 |
| Pull-Up |
488.00 |
578.0 |
162.00 |
146.0 |
1,800 |
|
|
75.00 |
| Full Load |
84.50 |
100.0 |
111.00 |
100.0 |
3,555 |
|
|
75.00 |
| 2/3 |
461.00 |
546.0 |
189.00 |
170.0 |
2,400 |
|
|
75.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
23.00 |
32.00 |
46.50 |
65.00 |
84.50 |
92.00 |
106.00 |
| Rated Output (KW) |
2.50 |
15.50 |
30.00 |
44.50 |
59.50 |
65.50 |
75.00 |
| Efficiency (%) |
0.0 |
90.2 |
93.0 |
94.1 |
94.1 |
94.1 |
93.6 |
| Power Factor (%) |
6.0 |
61.5 |
81.0 |
86.5 |
88.5 |
89.0 |
89.0 |
| Speed (RPM) |
3,600 |
3,590 |
3,580 |
3,565 |
3,555 |
3,545 |
3,540 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
65.0 |
85.0 |
105.0 |
| Torque (ft-lbs) |
0.00 |
27.50 |
55.00 |
83.00 |
111.00 |
128.00 |
140.00 |
