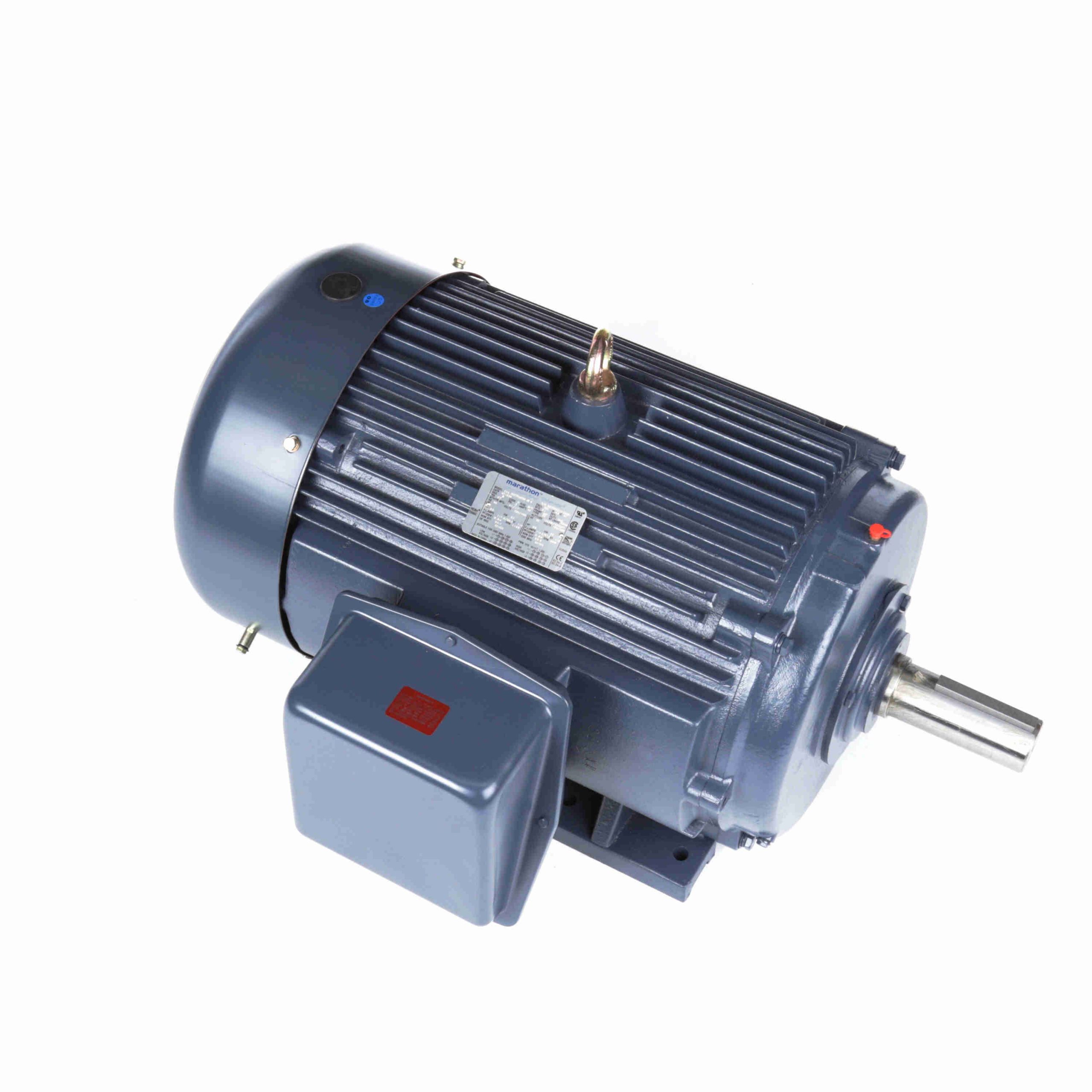

365TTFCA6086 – Marathon 50 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 365T Frame, TEFC – GT1038
365TTFCA6086 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856002327 |
Weight: |
0 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
26.03 IN |
Nameplate Specifications
| Output HP: |
50 Hp |
Output KW: |
37.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
119.0/59.5 A |
Speed: |
1188 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.1 % |
Power Factor: |
83.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
365T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6313 |
Opp Drive End Bearing Size: |
6213 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Wye Start Delta Run Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
.1329 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
34.30 in |
| Shaft Diameter: |
2.375 in |
Shaft Extension: |
5.88 in |
| Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
265.00 |
440.0 |
418.00 |
190.0 |
800 |
|
|
50.00 |
| Break-Down |
215.00 |
360.0 |
620.00 |
280.0 |
1,135 |
|
66.0 |
50.00 |
| Pull-Up |
290.00 |
480.0 |
335.00 |
152.0 |
600 |
|
|
50.00 |
| 1/3 |
315.00 |
520.0 |
330.00 |
150.0 |
400 |
|
|
50.00 |
| No Load |
25.00 |
41.0 |
0.00 |
0.0 |
1,200 |
|
5.0 |
50.00 |
| Locked-Rotor |
362.00 |
600.0 |
398.00 |
180.0 |
0 |
|
34.0 |
50.00 |
| Full Load |
60.50 |
100.0 |
221.00 |
100.0 |
1,188 |
|
82.5 |
50.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
25.00 |
28.50 |
36.80 |
47.80 |
60.50 |
68.80 |
74.50 |
| Rated Output (KW) |
1.00 |
10.50 |
20.00 |
29.50 |
39.50 |
46.00 |
50.00 |
| Efficiency (%) |
0.0 |
90.2 |
93.6 |
94.1 |
94.1 |
94.1 |
93.6 |
| Power Factor (%) |
5.0 |
46.0 |
68.5 |
78.0 |
82.5 |
83.5 |
84.0 |
| Speed (RPM) |
1,200 |
1,198 |
1,195 |
1,190 |
1,188 |
1,185 |
1,184 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
65.0 |
85.0 |
100.0 |
| Torque (ft-lbs) |
0.00 |
55.00 |
110.00 |
165.00 |
221.00 |
255.00 |
277.00 |
