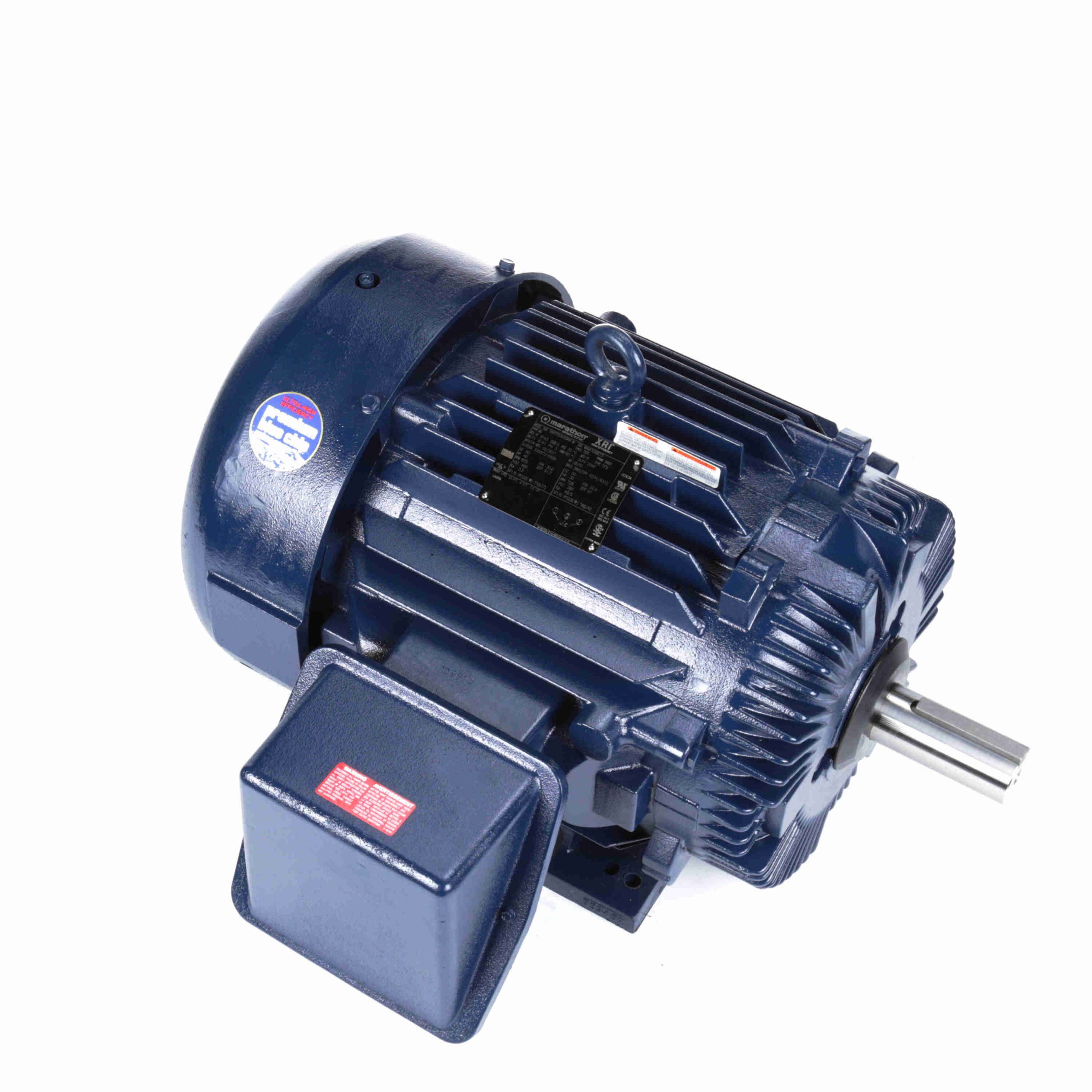

365TTFS16103 – Marathon 40 HP General Purpose Motor, 3 phase, 900 RPM, 460 V, 365T Frame, TEFC – L425A
365TTFS16103 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856052209 |
Weight: |
950 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
26.92 IN |
Nameplate Specifications
| Output HP: |
40 Hp |
Output KW: |
30.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
53.0 A |
Speed: |
875 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91.7 % |
Power Factor: |
77 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
365T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
8 |
Rotation: |
Reversible |
| Resistance Main: |
.198 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
32.51 in |
| Frame Length: |
14.50 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
6.12 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
25.00 |
47.0 |
0.00 |
0.0 |
900 |
|
4.0 |
40.00 |
| Locked-Rotor |
290.00 |
547.0 |
375.00 |
156.0 |
0 |
|
30.0 |
40.00 |
| Pull-Up |
250.00 |
472.0 |
300.00 |
125.0 |
500 |
|
|
40.00 |
| 2/3 |
225.00 |
425.0 |
325.00 |
135.0 |
750 |
|
|
40.00 |
| 1/3 |
275.00 |
519.0 |
300.00 |
125.0 |
300 |
|
|
40.00 |
| Break-Down |
200.00 |
377.0 |
625.00 |
260.0 |
750 |
|
62.0 |
40.00 |
| Full Load |
53.00 |
100.0 |
240.00 |
100.0 |
875 |
|
77.0 |
40.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
25.00 |
27.50 |
34.00 |
42.50 |
53.00 |
59.50 |
64.50 |
| Rated Output (KW) |
1.25 |
8.50 |
16.20 |
24.50 |
32.50 |
37.50 |
41.50 |
| Efficiency (%) |
0.0 |
88.5 |
91.7 |
92.4 |
91.7 |
91.0 |
90.2 |
| Power Factor (%) |
4.0 |
38.0 |
59.0 |
71.0 |
77.0 |
79.0 |
80.0 |
| Speed (RPM) |
900 |
895 |
888 |
882 |
875 |
870 |
865 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
105.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
58.80 |
118.00 |
179.00 |
240.00 |
278.00 |
303.00 |
