Description

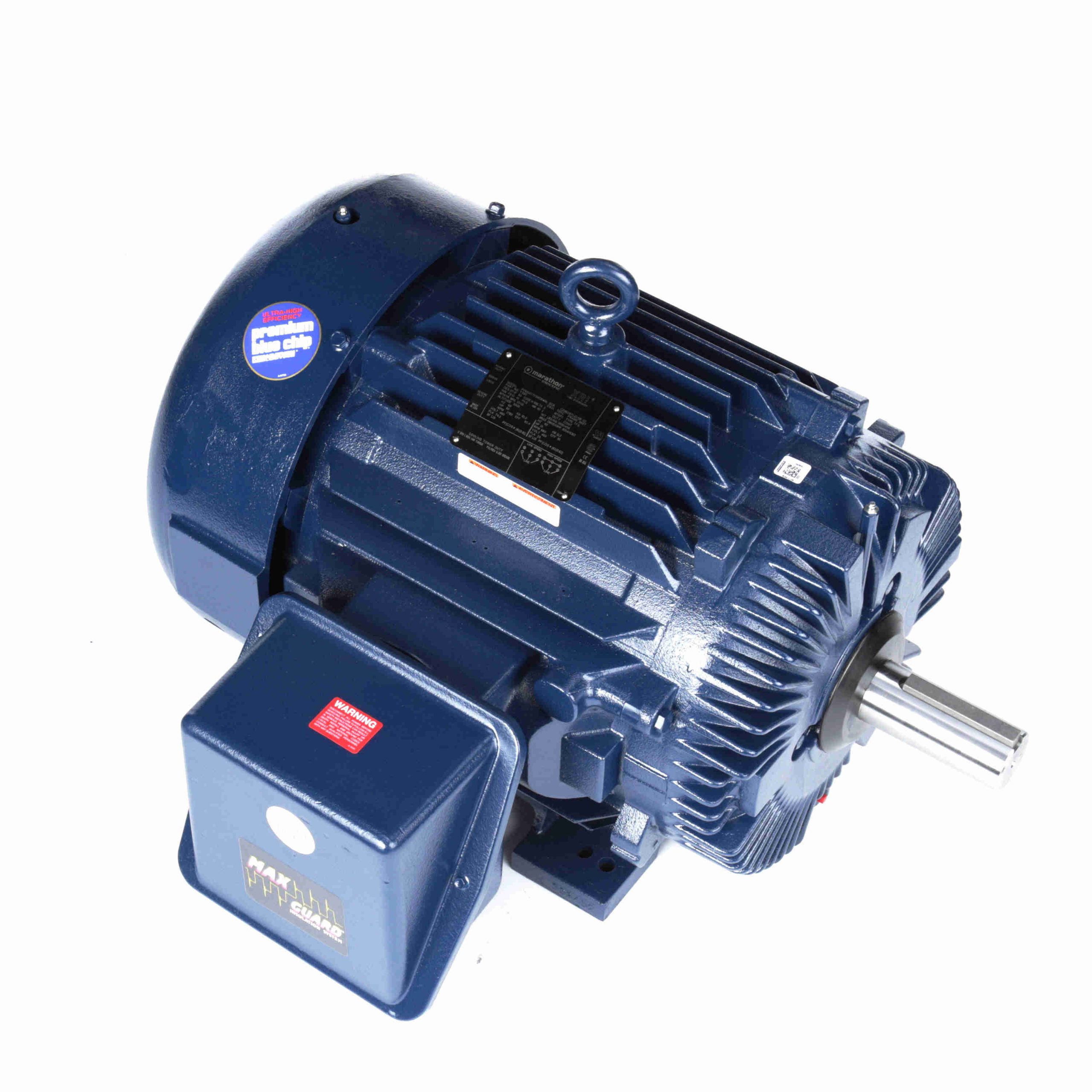

365TTFS9230 – Marathon 60,15 HP 2 speed Definite Purpose AC Motor, 3 phase, 1800/900 RPM, 460 V, 365T Frame, TEFC – Y390
365TTFS9230 Marathon Other Purpose Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856042316 |
Weight: |
0 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
26.5 IN |
Nameplate Specifications
| Output HP: |
60,15 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60/60 Hz |
Voltage: |
460 V |
| Current: |
74.5,25 A |
Speed: |
1780,885 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
92.4 % |
Power Factor: |
81 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
1VT |
KVA Code: |
H |
| Frame: |
365T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4/8 |
Rotation: |
Reversible |
| Resistance Main: |
.115 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
32.50 in |
| Frame Length: |
14.50 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
6.12 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
450.00 |
604.0 |
375.00 |
212.0 |
900 |
|
|
60.00 |
| 1/3 |
475.00 |
638.0 |
340.00 |
192.0 |
600 |
|
|
60.00 |
| Locked-Rotor |
500.00 |
671.0 |
375.00 |
212.0 |
0 |
|
36.0 |
60.00 |
| No Load |
31.00 |
42.0 |
0.00 |
0.0 |
1,800 |
|
|
60.00 |
| Full Load |
74.50 |
100.0 |
177.00 |
100.0 |
1,780 |
|
|
60.00 |
| Break-Down |
325.00 |
436.0 |
475.00 |
268.0 |
1,695 |
|
|
60.00 |
| 2/3 |
400.00 |
537.0 |
400.00 |
226.0 |
1,200 |
|
|
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
31.00 |
35.00 |
46.00 |
59.00 |
74.50 |
84.00 |
91.00 |
| Rated Output (KW) |
1.50 |
13.00 |
24.50 |
36.00 |
48.00 |
55.50 |
60.50 |
| Efficiency (%) |
0.0 |
86.5 |
91.7 |
92.4 |
92.4 |
92.4 |
91.7 |
| Power Factor (%) |
6.0 |
45.0 |
67.0 |
77.0 |
81.0 |
83.0 |
84.0 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,780 |
1,775 |
1,772 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
105.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
44.00 |
88.00 |
132.00 |
177.00 |
204.00 |
222.00 |
