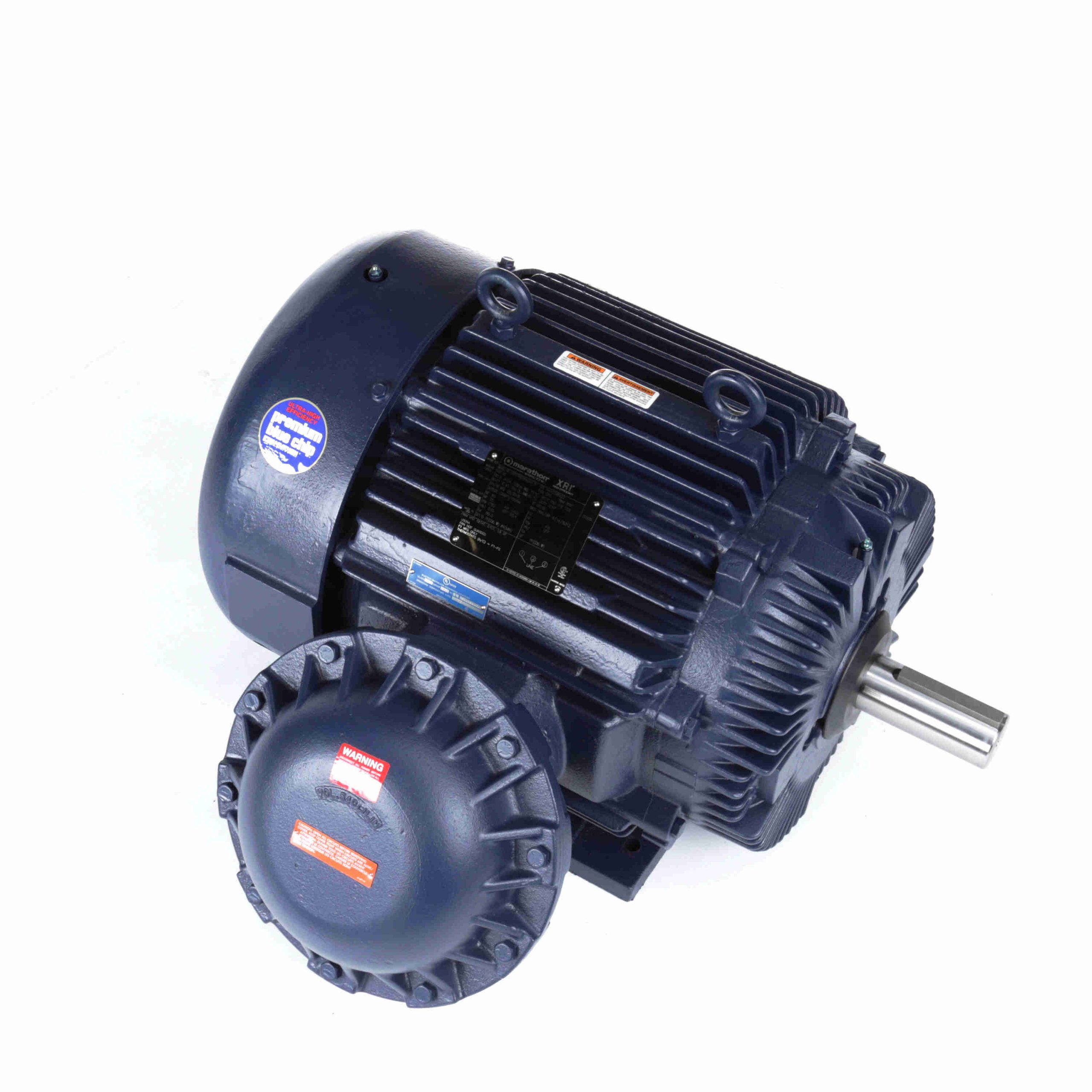

365TTGS16542 – Marathon 75 HP Explosion Proof Motor, 3 phase, 1800 RPM, 575 V, 365T Frame, EPFC – U034A
365TTGS16542 Marathon Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856024084 |
Weight: |
0 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
26.83 IN |
Nameplate Specifications
| Output HP: |
75 Hp |
Output KW: |
56.0 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
69.5 A |
Speed: |
1782 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95.4 % |
Power Factor: |
84 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
A |
KVA Code: |
H |
| Frame: |
365T |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6314 |
Opp Drive End Bearing Size: |
6312 |
| UL: |
UL Listed And CSA Certified |
CSA: |
Y |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.069 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
32.74 in |
| Frame Length: |
14.50 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
6.12 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
625.00 |
720.0 |
425.00 |
192.0 |
600 |
|
|
75.00 |
| No Load |
32.00 |
37.0 |
0.00 |
0.0 |
1,800 |
|
3.5 |
75.00 |
| 2/3 |
500.00 |
575.0 |
475.00 |
215.0 |
1,200 |
|
|
75.00 |
| Break-Down |
360.00 |
415.0 |
625.00 |
282.0 |
1,725 |
|
65.0 |
75.00 |
| Full Load |
87.00 |
100.0 |
221.00 |
100.0 |
1,782 |
|
84.0 |
75.00 |
| Locked-Rotor |
650.00 |
750.0 |
500.00 |
225.0 |
0 |
|
33.0 |
75.00 |
| Pull-Up |
575.00 |
660.0 |
425.00 |
192.0 |
900 |
|
|
75.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
25.60 |
30.40 |
41.20 |
54.80 |
69.60 |
79.20 |
86.40 |
| Rated Output (KW) |
1.50 |
15.00 |
29.50 |
44.00 |
58.80 |
68.00 |
74.00 |
| Efficiency (%) |
0.0 |
92.4 |
95.0 |
95.4 |
95.4 |
95.4 |
95.0 |
| Power Factor (%) |
3.5 |
50.0 |
72.0 |
81.0 |
84.0 |
85.0 |
85.5 |
| Speed (RPM) |
1,800 |
1,795 |
1,790 |
1,785 |
1,782 |
1,778 |
1,775 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
105.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
55.00 |
110.00 |
166.00 |
221.00 |
255.00 |
278.00 |
