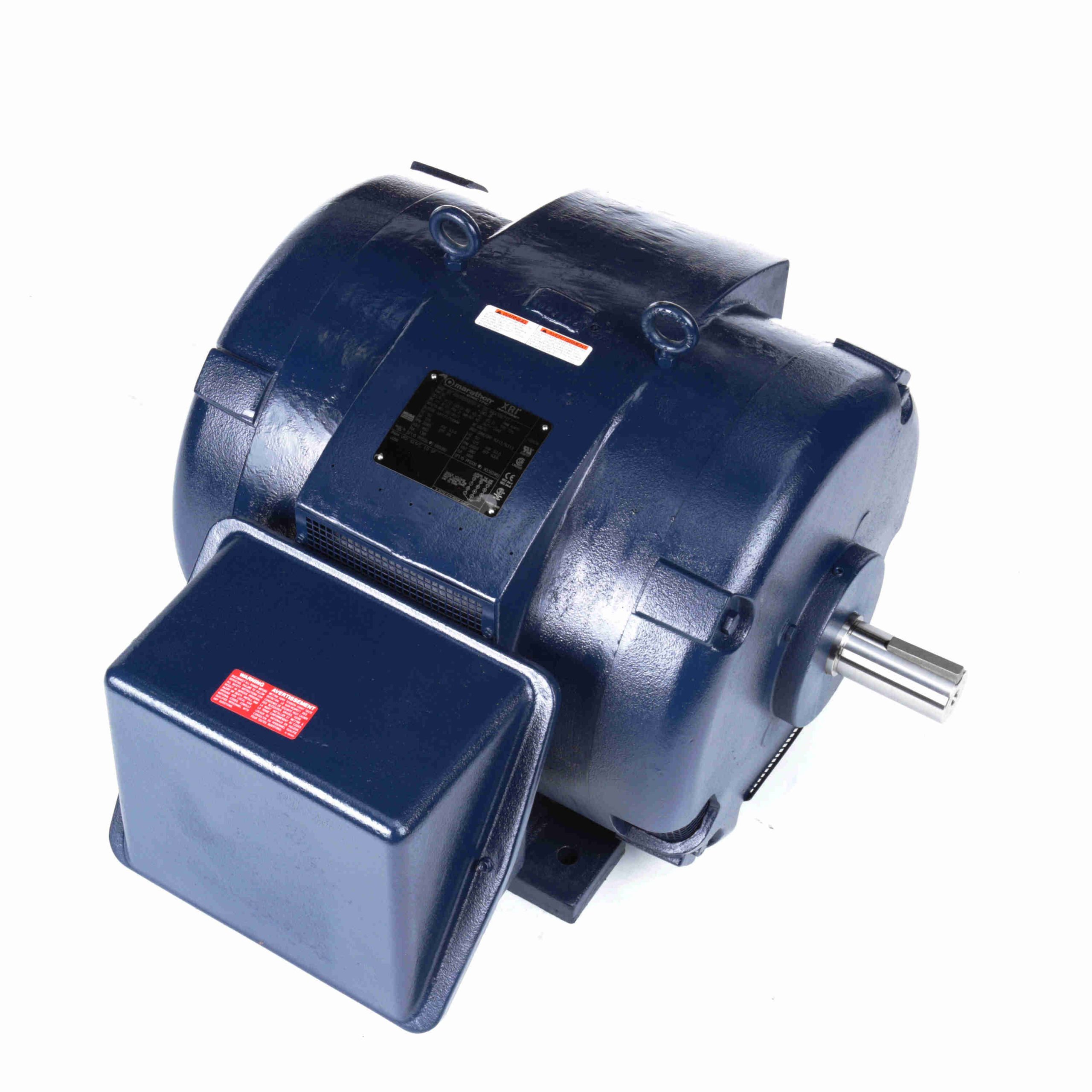

404TSTDS6001 – Marathon 125 HP General Purpose Motor, 3 phase, 3600 RPM, 460 V, 404TS Frame, ODP – U250

404TSTDS6001 – Marathon 125 HP General Purpose Motor, 3 phase, 3600 RPM, 460 V, 404TS Frame, ODP – U250

404TSTDS6001 Marathon Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Motor will accept a C-face kit
  • 12 Leads for WYE-DELTA, parting winding on low voltage, or across-the-line starting

Marathon Motors
Regal Beloit

Description

404TSTDS6001 – Marathon 125 HP General Purpose Motor, 3 phase, 3600 RPM, 460 V, 404TS Frame, ODP – U250

404TSTDS6001 Marathon Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856013354 Weight: 985 LB
Packaged Length: 37.88 IN Packaged Width: 31.88 IN
Packaged Height: 26.98 IN

Nameplate Specifications

Output HP: 125 Hp Output KW: 93.0 kW
Frequency: 60/50 Hz Voltage: 460 V
Current: 138.0 A Speed: 3565 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 95 % Power Factor: 88
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 404TS Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6313 Opp Drive End Bearing Size: 6313
UL: Recognized CSA: Y
CE: Y IP Code: 12

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Part Wdg Start & Wye Start Delta Run
Poles: 2 Rotation: Reversible
Resistance Main: .045 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: TS Overall Length: 29.50 in
Frame Length: 15.50 in Shaft Diameter: 2.125 in
Shaft Extension: 4.49 in Assembly/Box Mounting: F1/F2 Capable

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 830.00 593.0 260.00 141.0 1,800 125.00
No Load 38.00 30.0 0.00 0.0 3,600 6.5 125.00
1/3 850.00 607.0 260.00 141.0 1,200 125.00
Break-Down 565.00 404.0 515.00 280.0 3,400 66.5 125.00
2/3 775.00 554.0 340.00 185.0 2,400 125.00
Locked-Rotor 907.00 648.0 260.00 140.0 0 30.0 125.00
Full Load 138.00 100.0 184.00 100.0 3,565 88.0 125.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 38.00 50.00 76.00 105.00 138.00 158.00 172.00
Rated Output (KW) 2.50 26.00 49.50 74.00 98.50 112.00 123.00
Efficiency (%) 0.0 91.0 94.1 95.0 95.0 94.5 94.1
Power Factor (%) 6.5 65.0 82.0 86.0 88.0 89.0 89.0
Speed (RPM) 3,600 3,595 3,585 3,575 3,565 3,560 3,555
Temp. Rise @ FL 0.0 0.0 0.0 0.0 45.0 60.0 75.0
Torque (ft-lbs) 0.00 46.00 92.00 138.00 184.00 212.00 231.00
