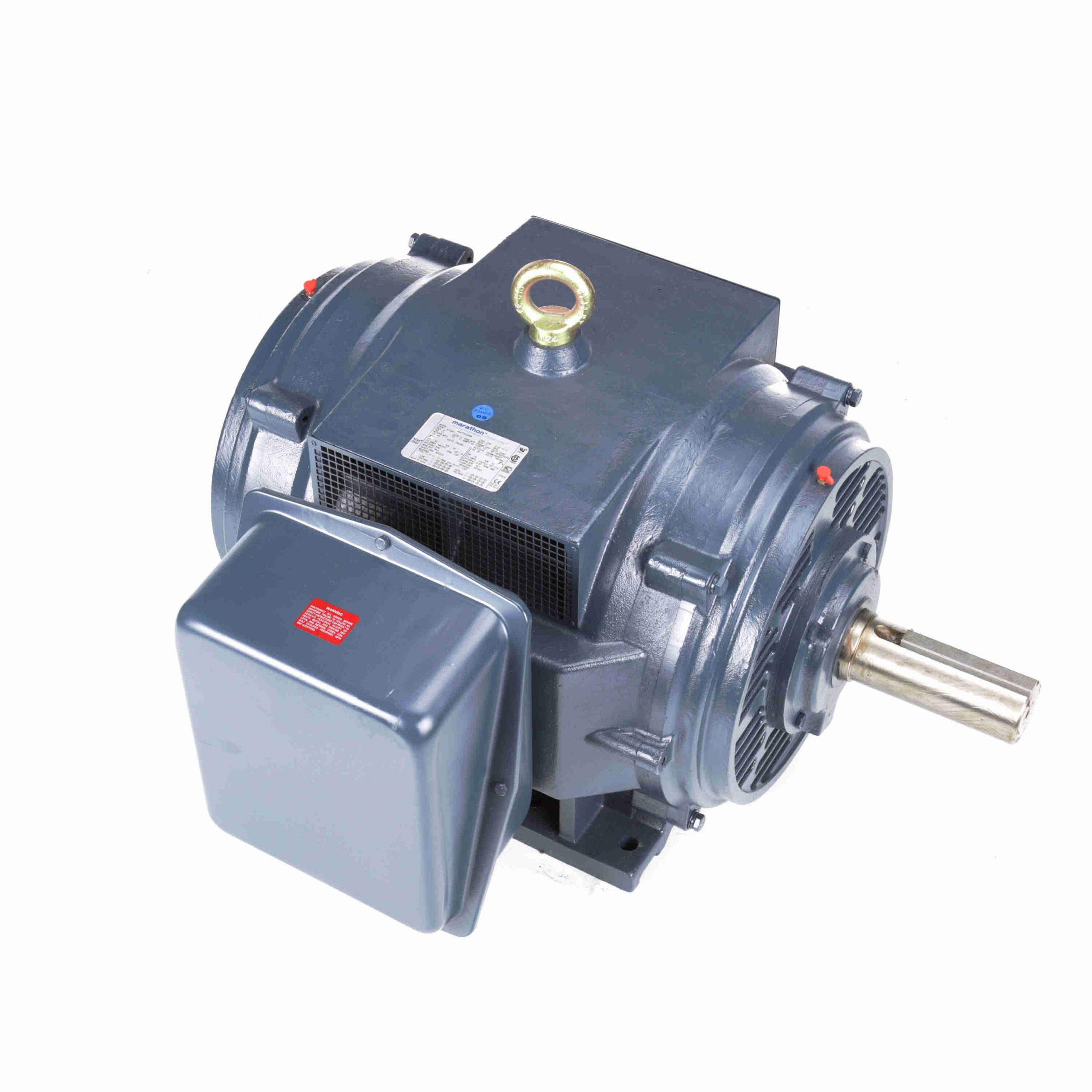

404TTDC6086 – Marathon 60 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 404T Frame, ODP – GT0041
404TTDC6086 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856000392 |
Weight: |
0 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
28.66 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
144.0/72.0 A |
Speed: |
1190 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.5 % |
Power Factor: |
82.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
404T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6316 |
Opp Drive End Bearing Size: |
6315 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
.102 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
37.20 in |
| Shaft Diameter: |
2.875 in |
Shaft Extension: |
7.25 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
350.00 |
485.0 |
500.00 |
188.0 |
900 |
|
|
60.00 |
| Locked-Rotor |
435.00 |
605.0 |
525.00 |
198.0 |
0 |
|
37.0 |
60.00 |
| Break-Down |
270.00 |
375.0 |
700.00 |
250.0 |
1,125 |
|
63.0 |
60.00 |
| Pull-Up |
400.00 |
555.0 |
450.00 |
170.0 |
500 |
|
|
60.00 |
| 1/3 |
425.00 |
590.0 |
450.00 |
170.0 |
400 |
|
|
60.00 |
| No Load |
26.50 |
37.0 |
0.00 |
0.0 |
1,200 |
|
5.0 |
60.00 |
| Full Load |
72.00 |
100.0 |
265.00 |
100.0 |
1,190 |
|
82.5 |
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
27.00 |
32.00 |
43.00 |
56.50 |
72.00 |
83.00 |
90.00 |
| Rated Output (KW) |
1.20 |
12.50 |
24.00 |
35.50 |
47.50 |
54.50 |
59.50 |
| Efficiency (%) |
0.0 |
91.0 |
94.1 |
94.5 |
94.5 |
94.5 |
94.1 |
| Power Factor (%) |
4.5 |
48.0 |
69.5 |
79.0 |
82.5 |
83.0 |
83.0 |
| Speed (RPM) |
1,200 |
1,198 |
1,195 |
1,192 |
1,190 |
1,188 |
1,186 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
35.0 |
50.0 |
60.0 |
| Torque (ft-lbs) |
0.00 |
66.00 |
132.00 |
198.00 |
265.00 |
305.00 |
332.00 |
