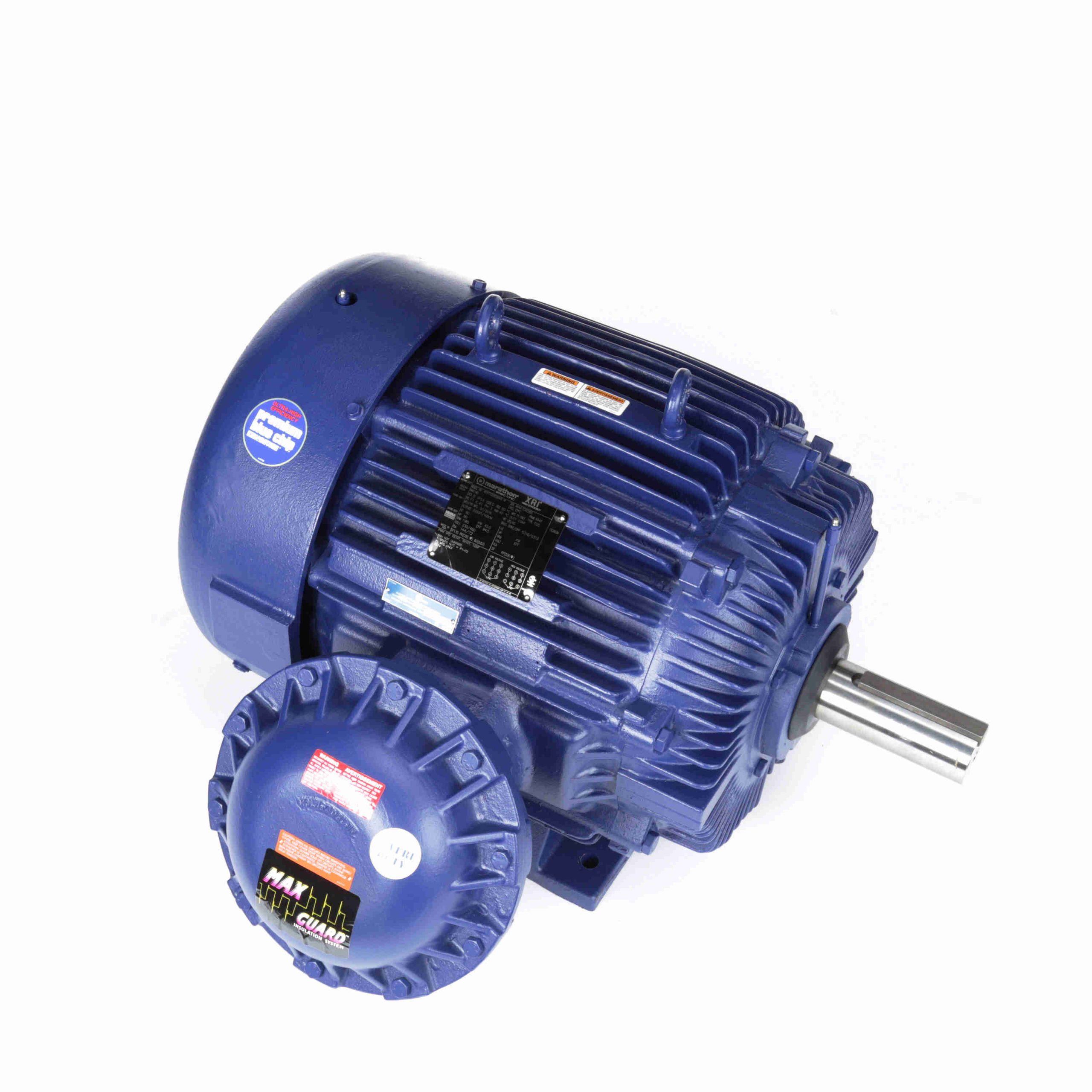

404TTGS6588 – Marathon 60 HP Explosion Proof Motor, 3 phase, 1200 RPM, 230/460 V, 404T Frame, EPFC – E574
404TTGS6588 Marathon Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856023667 |
Weight: |
0 LB |
| Packaged Length: |
44.88 IN |
Packaged Width: |
39.25 IN |
| Packaged Height: |
28.94 IN |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
45.0 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
144.0/72.0 A |
Speed: |
1185 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
94.5 % |
Power Factor: |
83 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
404T |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6316 |
Opp Drive End Bearing Size: |
6313 |
| UL: |
UL Listed And CSA Certified |
CSA: |
Y |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
.111 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
35.62 in |
| Frame Length: |
15.25 in |
Shaft Diameter: |
2.875 in |
| Shaft Extension: |
7.5 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
240.00 |
333.0 |
650.00 |
244.0 |
1,050 |
|
63.5 |
60.00 |
| 2/3 |
370.00 |
514.0 |
550.00 |
207.0 |
800 |
|
|
60.00 |
| Locked-Rotor |
435.00 |
604.0 |
535.00 |
201.0 |
0 |
|
36.0 |
60.00 |
| Full Load |
72.00 |
100.0 |
266.00 |
100.0 |
1,185 |
|
|
60.00 |
| No Load |
26.50 |
37.0 |
0.00 |
0.0 |
1,200 |
|
|
60.00 |
| 1/3 |
410.00 |
569.0 |
450.00 |
169.0 |
400 |
|
|
60.00 |
| Pull-Up |
390.00 |
542.0 |
475.00 |
179.0 |
600 |
|
|
60.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
26.50 |
31.50 |
42.00 |
56.50 |
72.00 |
82.00 |
89.50 |
| Rated Output (KW) |
1.00 |
12.00 |
23.50 |
35.50 |
47.50 |
54.50 |
59.50 |
| Efficiency (%) |
0.0 |
93.0 |
95.0 |
95.0 |
94.5 |
94.1 |
94.1 |
| Power Factor (%) |
4.5 |
48.0 |
70.0 |
78.5 |
83.0 |
83.5 |
83.5 |
| Speed (RPM) |
1,200 |
1,196 |
1,194 |
1,188 |
1,185 |
1,182 |
1,180 |
| Temp. Rise @ FL |
0.0 |
40.0 |
35.0 |
0.0 |
60.0 |
80.0 |
100.0 |
| Torque (ft-lbs) |
0.00 |
65.50 |
132.00 |
199.00 |
266.00 |
306.00 |
333.00 |
