Description

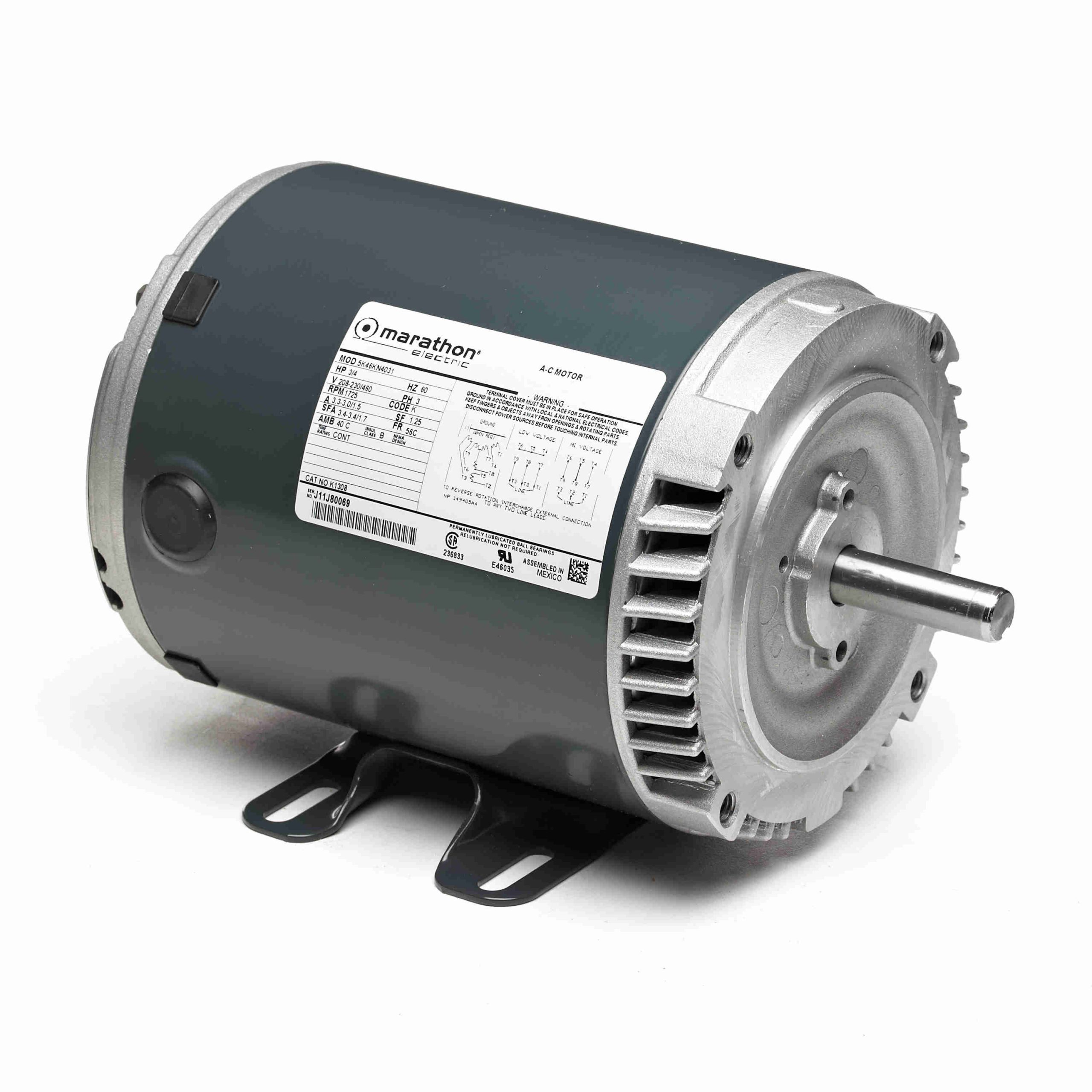

405TSTDS16039 – Marathon 125 HP General Purpose Motor, 3 phase, 1800 RPM, 460 V, 405TSC Frame, ODP – U454A
405TSTDS16039 Marathon Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856012272 |
Weight: |
0 LB |
| Packaged Length: |
37.88 IN |
Packaged Width: |
31.88 IN |
| Packaged Height: |
28.04 IN |
Nameplate Specifications
| Output HP: |
125 Hp |
Output KW: |
93.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
141.0 A |
Speed: |
1782 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95.4 % |
Power Factor: |
86 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
405TSC |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6313 |
Opp Drive End Bearing Size: |
6313 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Part Wdg Start & Wye Start Delta Run |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.042 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
TS |
Overall Length: |
29.50 in |
| Frame Length: |
15.50 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
4 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
141.00 |
100.0 |
368.00 |
100.0 |
1,782 |
|
|
125.00 |
| Break-Down |
475.00 |
337.0 |
875.00 |
238.0 |
1,700 |
|
65.5 |
125.00 |
| Locked-Rotor |
875.00 |
621.0 |
550.00 |
149.0 |
0 |
|
30.0 |
125.00 |
| No Load |
40.00 |
28.0 |
0.00 |
0.0 |
1,800 |
|
|
125.00 |
| 2/3 |
665.00 |
472.0 |
610.00 |
166.0 |
1,400 |
|
|
125.00 |
| Pull-Up |
765.00 |
543.0 |
535.00 |
145.0 |
900 |
|
|
125.00 |
| 1/3 |
800.00 |
567.0 |
515.00 |
140.0 |
600 |
|
|
125.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
40.00 |
53.00 |
77.50 |
108.00 |
141.00 |
163.00 |
178.00 |
| Rated Output (KW) |
1.50 |
24.50 |
48.50 |
72.50 |
97.00 |
112.00 |
122.00 |
| Efficiency (%) |
0.0 |
94.1 |
95.4 |
95.8 |
95.4 |
95.4 |
95.0 |
| Power Factor (%) |
4.5 |
59.0 |
78.5 |
84.5 |
86.0 |
86.5 |
86.5 |
| Speed (RPM) |
1,800 |
1,796 |
1,792 |
1,785 |
1,782 |
1,778 |
1,775 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
45.0 |
60.0 |
75.0 |
| Torque (ft-lbs) |
0.00 |
91.50 |
183.00 |
276.00 |
368.00 |
423.00 |
462.00 |
